D-Link DES-3326SR Layer 3 Switch
Configure Default Priority
The default 802.1p priority to each port can be changed to suit conditions.
Click on the 802.1p Default Priority link:

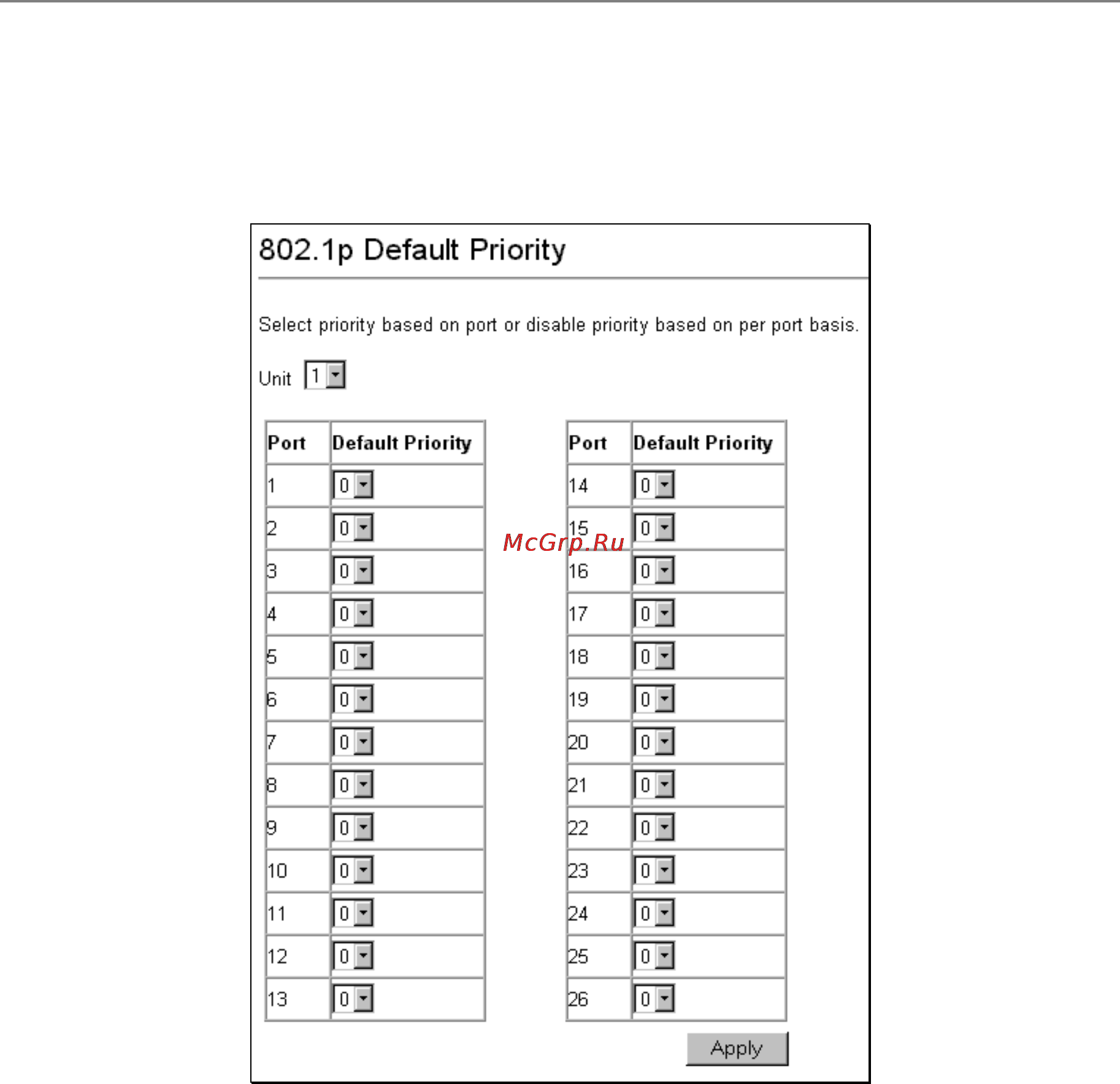

Figure 10- 3. Priority Based on Port
This window allows you to assign a default 802.1p priority to any given port on the switch. The priority queues
are numbered from 0 − the lowest priority − to 7 − the highest priority.
Choose the priority level for the ports and click on the Apply button to make the change.
68
