D-Link DES-3326SR Layer 3 Switch
Routing Table
To view Routing Table, open the Network Monitoring folder and the Address Tables subdirectory and click on
the Routing Table link:

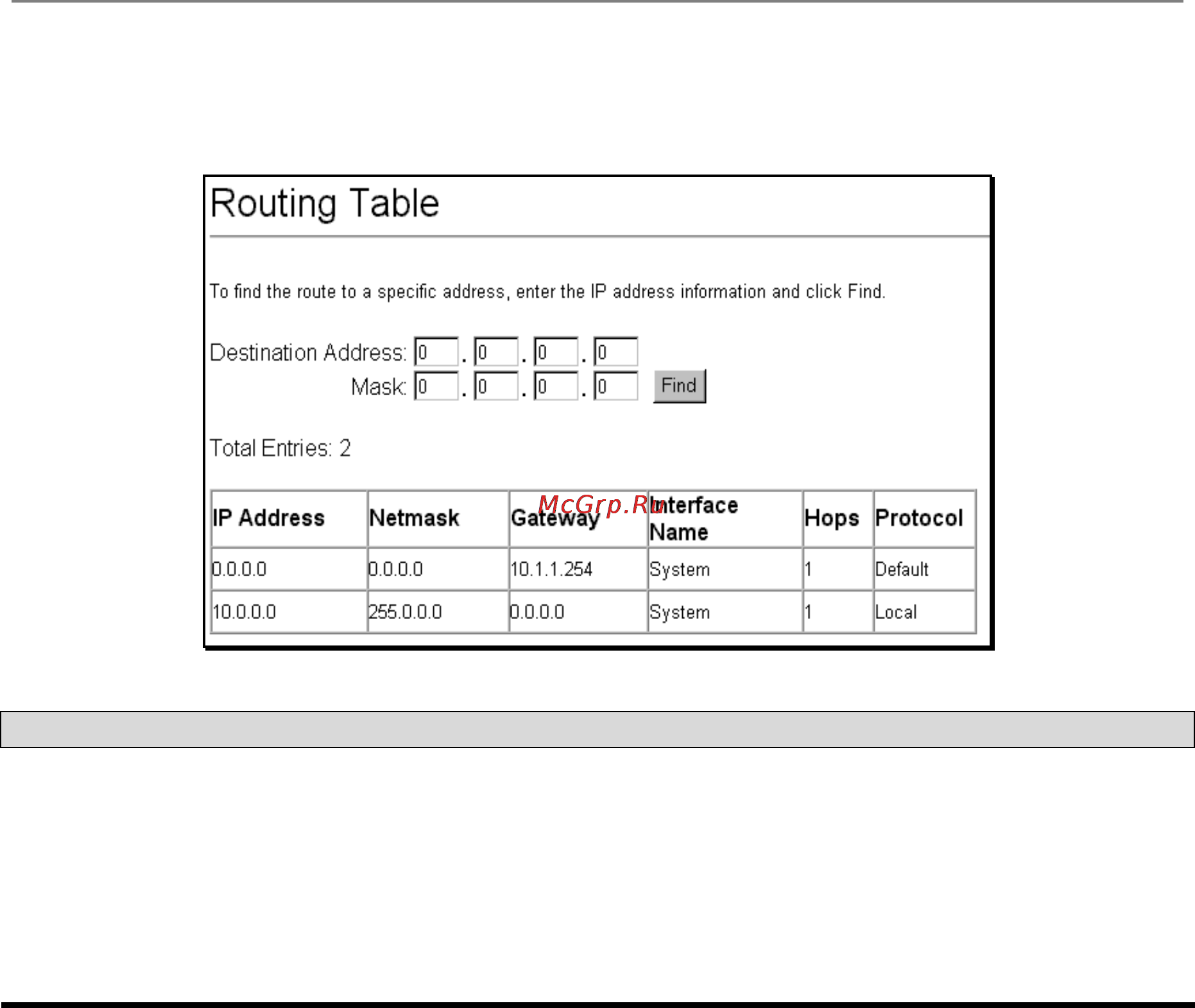

Figure 16- 6. Routing Table
Parameter Description
IP Address
The IP address of the router.
Netmask
The subnet mask corresponding to the IP address above.
Gateway
The IP address of the gateway between the switch and this router.
Interface Name
The name of the IP interface on which this router resides.
Hops
The number of routers between the switch and this router.
Protocol
The routing protocol in use by this router.
113
