D-Link DES-3326SR Layer 3 Switch
DES-131F/132F 1/2-port 100BASE-FX Module

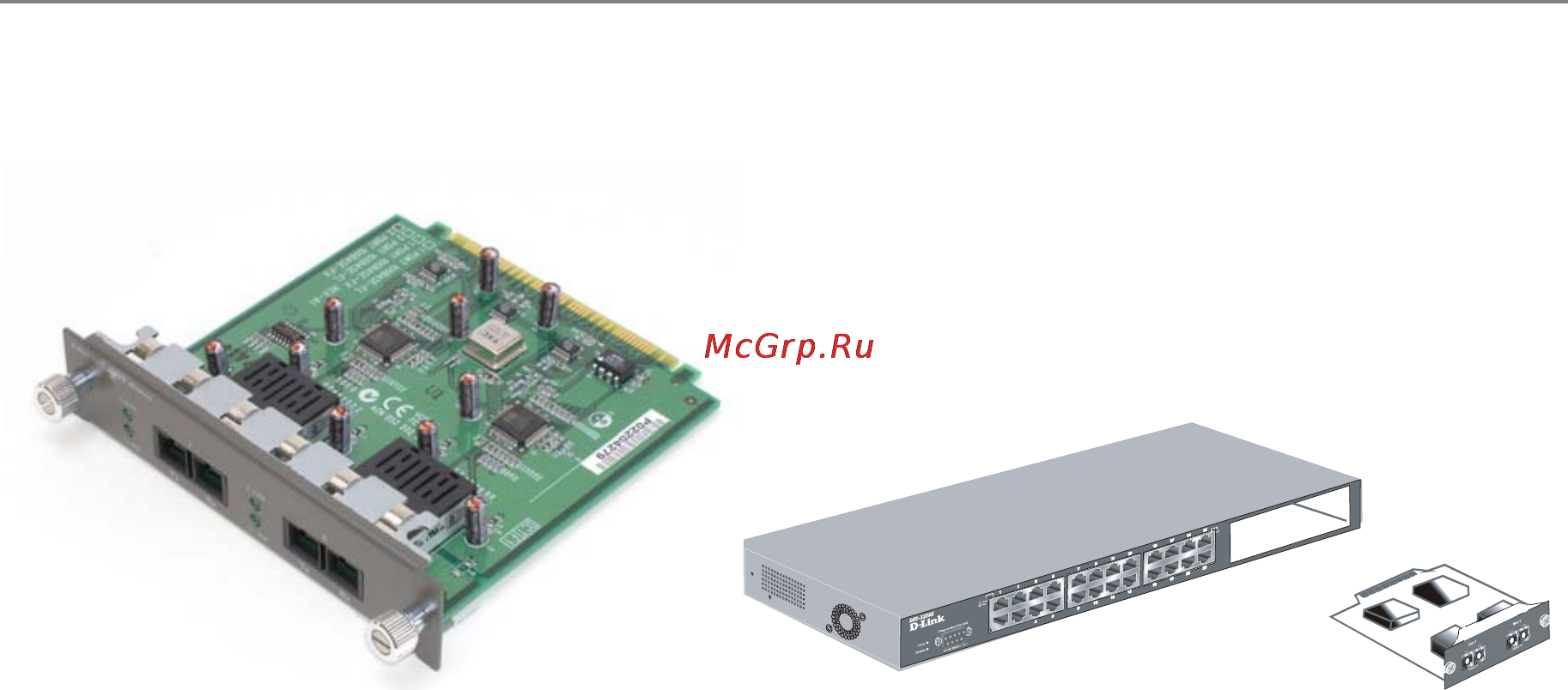

Figure 1 - 6. 100BASE-FX two-port module
Port Functions
• Fully compliant with IEEE802.3u 100BASE-FX
• Supports auto-negotiation in the following operation: 100M / Full-duplex / Flow control
• IEEE 802.3x compliant Flow Control support for full-duplex
Connector: SC Type
Distance: 2km
LED Indicators
Link
Off – No Link
Solid Green – Link
Active
Off – No Activity
Blinking Green – Activity
7
