D-Link DES-3326SR Layer 3 Switch
Configure Ports
Click the Port Configurations link in the Basic Setup folder:
For stacked switch installations, it will be
necessary to select the Unit (switch) according to
its logical position in the stack.
Figure 5- 1. Choose switch from stack
Click the radio button on the far left to select the port
you want to configure and click the Edit button. The
basic settings for the Switch ports are summarized in
the table below.

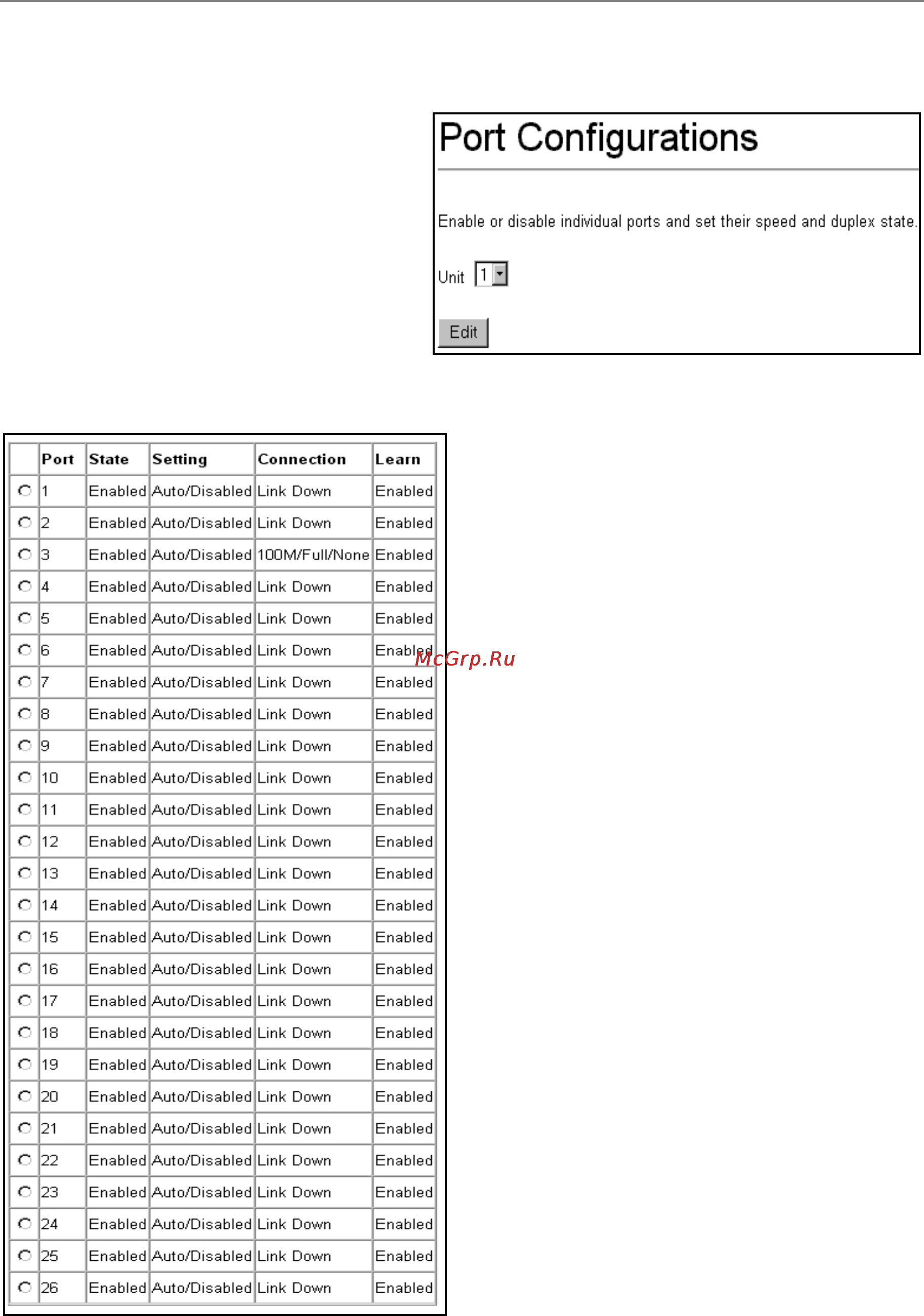

Figure 5- 2. Port Configurations
45
