D-Link DES-3326SR Layer 3 Switch
DES-132G 2-port 1000BASE-SX Gigabit Ethernet Module

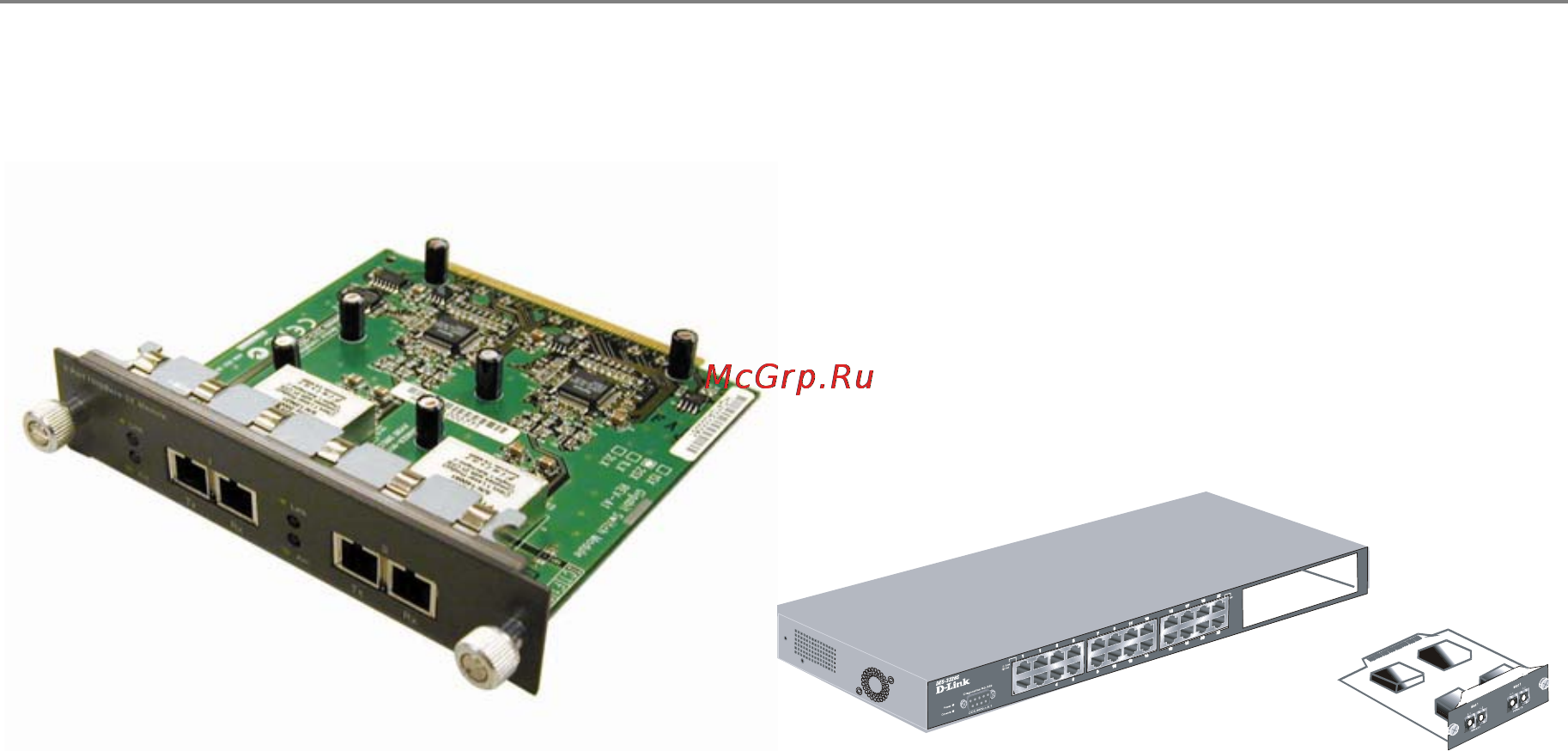

Figure 1 - 9. 1000BASE-SX two-port module
Port Functions
• 2 1000BASE-SX Gigabit Ethernet ports
• IEEE 802.3z 1000BASE-SX compliance
• Supports Full-duplex operations
• IEEE 802.3x compliant Flow Control support for full-duplex
Connector: SC Type
Distance: 550m
DEM-320S 2-port 1000BASE-SX Gigabit Ethernet Module
Port Functions
• 2 1000BASE-SX Gigabit Ethernet ports
• IEEE 802.3z 1000BASE-SX compliance
• Supports Full-duplex operations
• IEEE 802.3x compliant Flow Control support for full-duplex
Connector: SC Type
Distance: 550m
LED Indicators
Link
Off – No Link
Solid Green – Link
Active
Off – No Activity
Blinking Green – Activity
10
