D-Link DES-3326SR Layer 3 Switch
Switch GVRP
To enable GVRP for the Switch, access the Switch GVRP menu in the VLAN Configurations folder, select
Enabled from the drop-down menu and click on the Apply button. GVRP may be disabled universally without
changing any of the per-port GVRP settings so they do not have to be reconfigured if Switch GVRP is enabled
later.

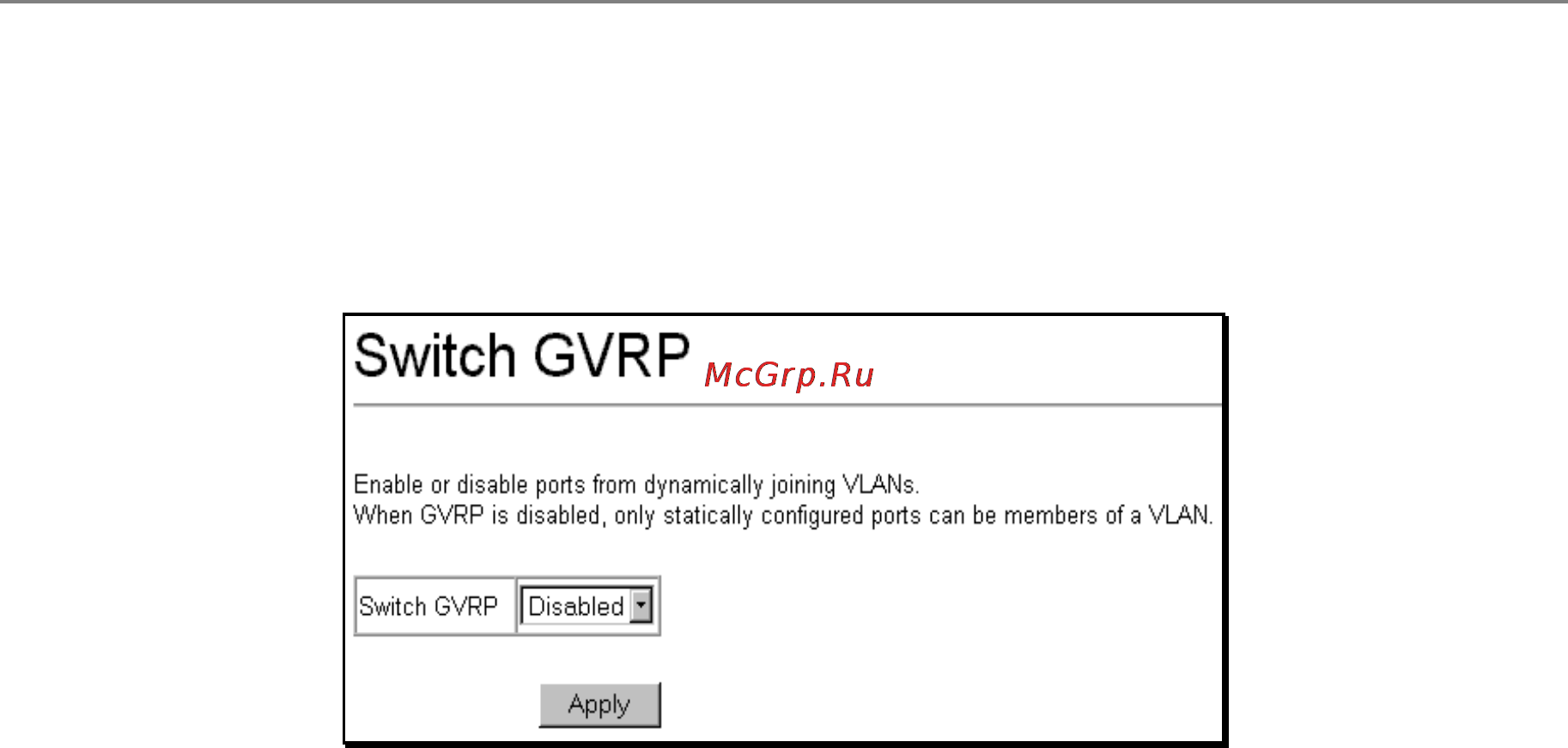

Figure 19- 5. – Switch GVRP
140
