D-Link DES-3326SR Layer 3 Switch
Configure 802.1p User Priority
Once you have assigned a maximum number of packets and a maximum latency to a given Class of Service on
the switch, you can then assign this Class to each of the 8 levels of 802.1p priorities. Open the 802.1 User
Priority configuration menu in the QoS subdirectory to see the menu below.

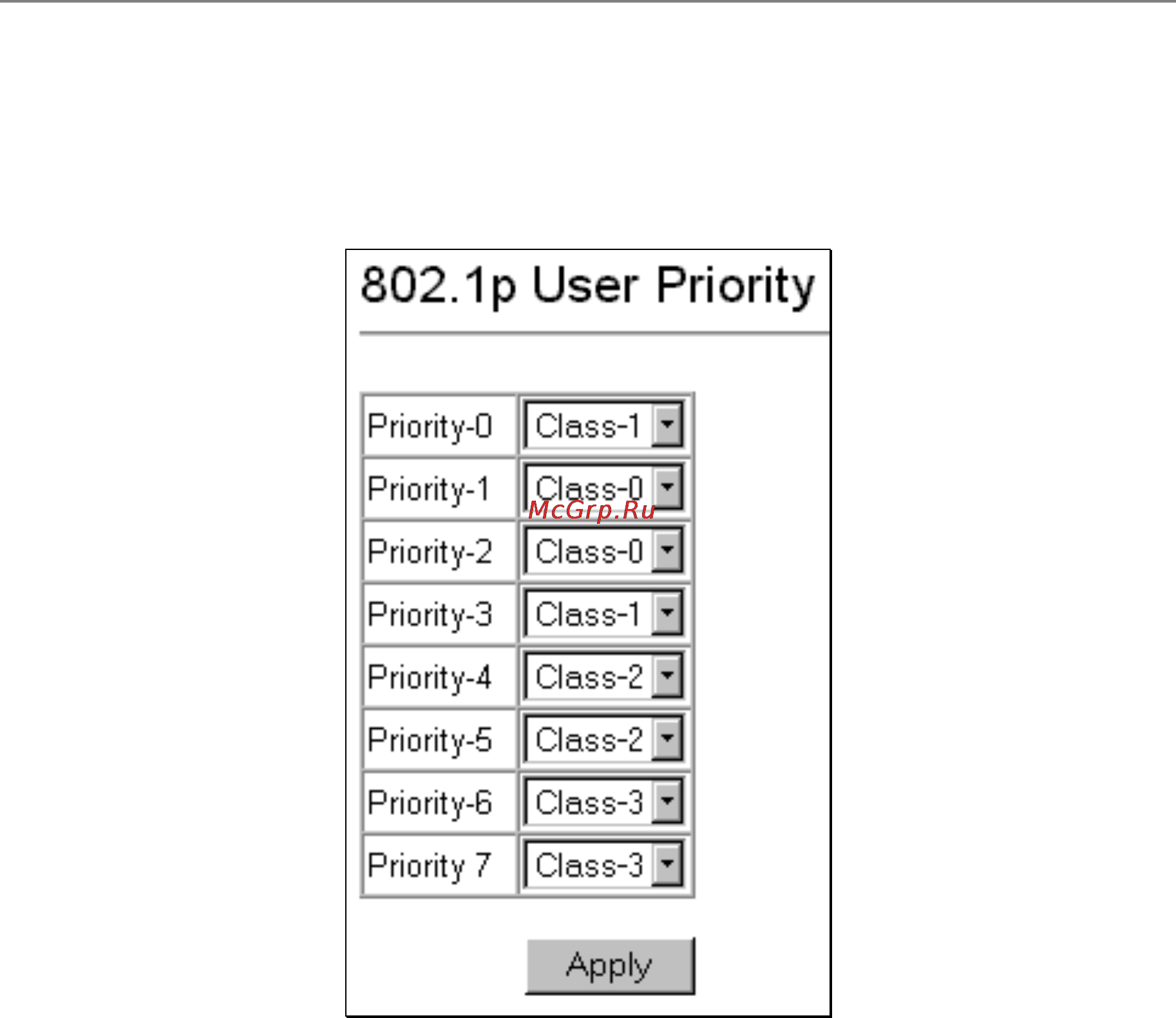

Figure 10- 2. QoS Class of Traffic
Configure the Class-to-Priority mapping as you wish and click on the Apply button to make the change.
