Area Aggregation Configuration

Area Aggregation allows all of the routing information that may be contained within an area to be aggregated

into a summary LSDB advertisement of just the network address and subnet mask. This allows for a reduction

in the volume of LSDB advertisement traffic as well as a reduction in the memory overhead in the Switch used

to maintain routing tables.

Click the OSPF Area Aggregation Settings link to view the current settings. There are no aggregation settings

configured by default, so there will not be any listed the first accessing the menu.

To configure OSPF Area Aggregation on the switch, click the Area Aggregation Configuration link in the

OSPF folder:

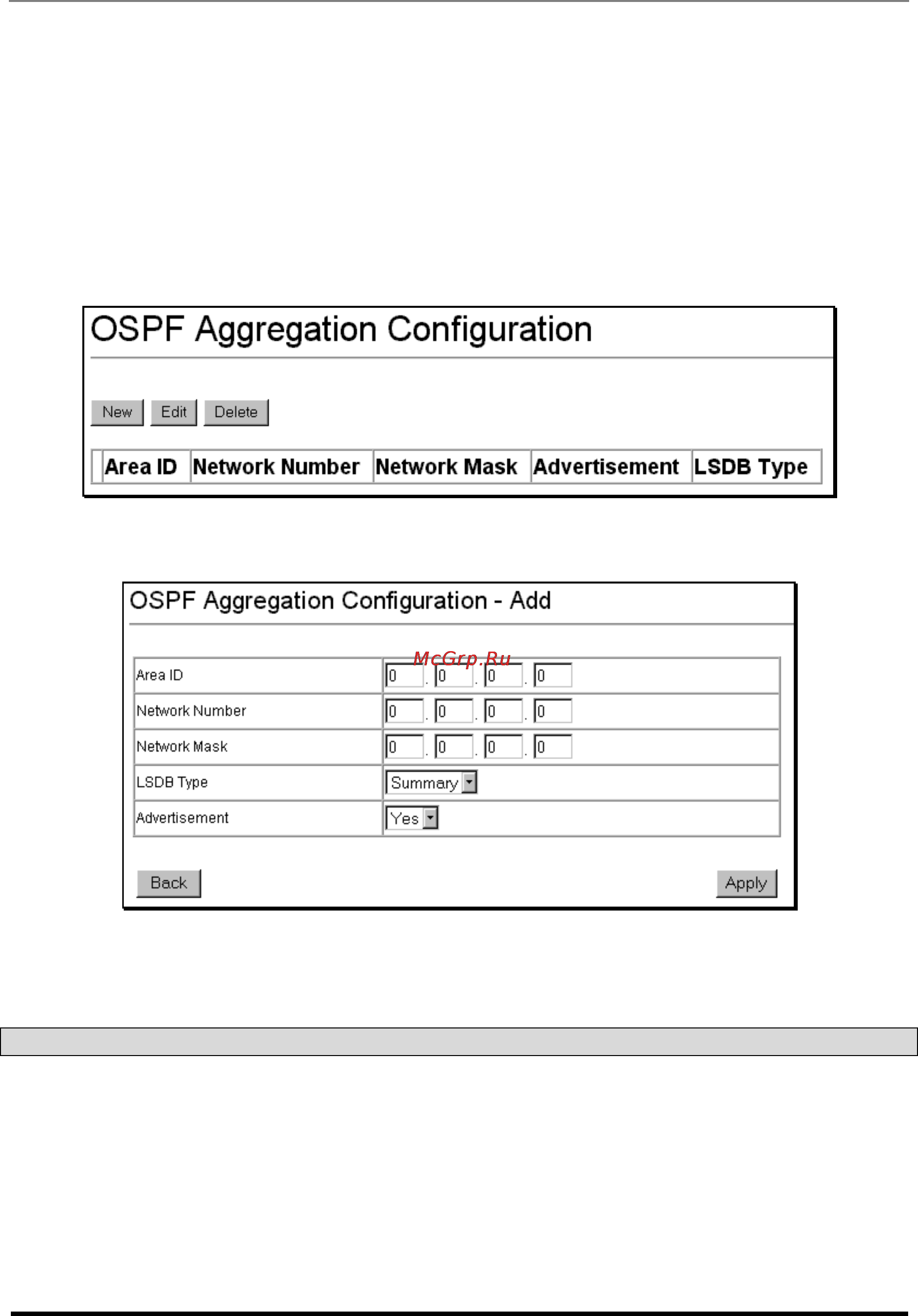

Figure 24- 12. OSPF Aggregation Configuration

To add an OSPF Area Aggregation entry on the switch, click the New button:

Figure 24- 13. OSPF Aggregation Configuration − Add

Specify the OSPF Aggregation settings and click the Apply button to add or change the settings.

The following settings for OSPF Area Aggregation can be set or are displayed::

Parameter Description

Area ID

Allows the entry the OSPF Area ID for which the routing information will be

aggregated. This Area ID must be previously defined on the Switch.

Network Number

Sometimes called the Network Address. The 32-bit number in the form of

an IP address that uniquely identifies the network that corresponds to the

OSPF Area above.

Network Mask

The subnet mask used for the OSPF Area.

LSDB Type

Specify the type of address aggregation. Choose Summary or NSSA-Ext.

Select Enabled or Disabled to determine whether the selected OSPF Area

will advertise it’s summary LSDB (Network-Number and Network-Mask).
