D-Link DES-3326SR Layer 3 Switch
DNS Relay Interface Configuration
To configure permanent entries for the DNS Relay Static Table, use the DNS Relay Static Settings menu.

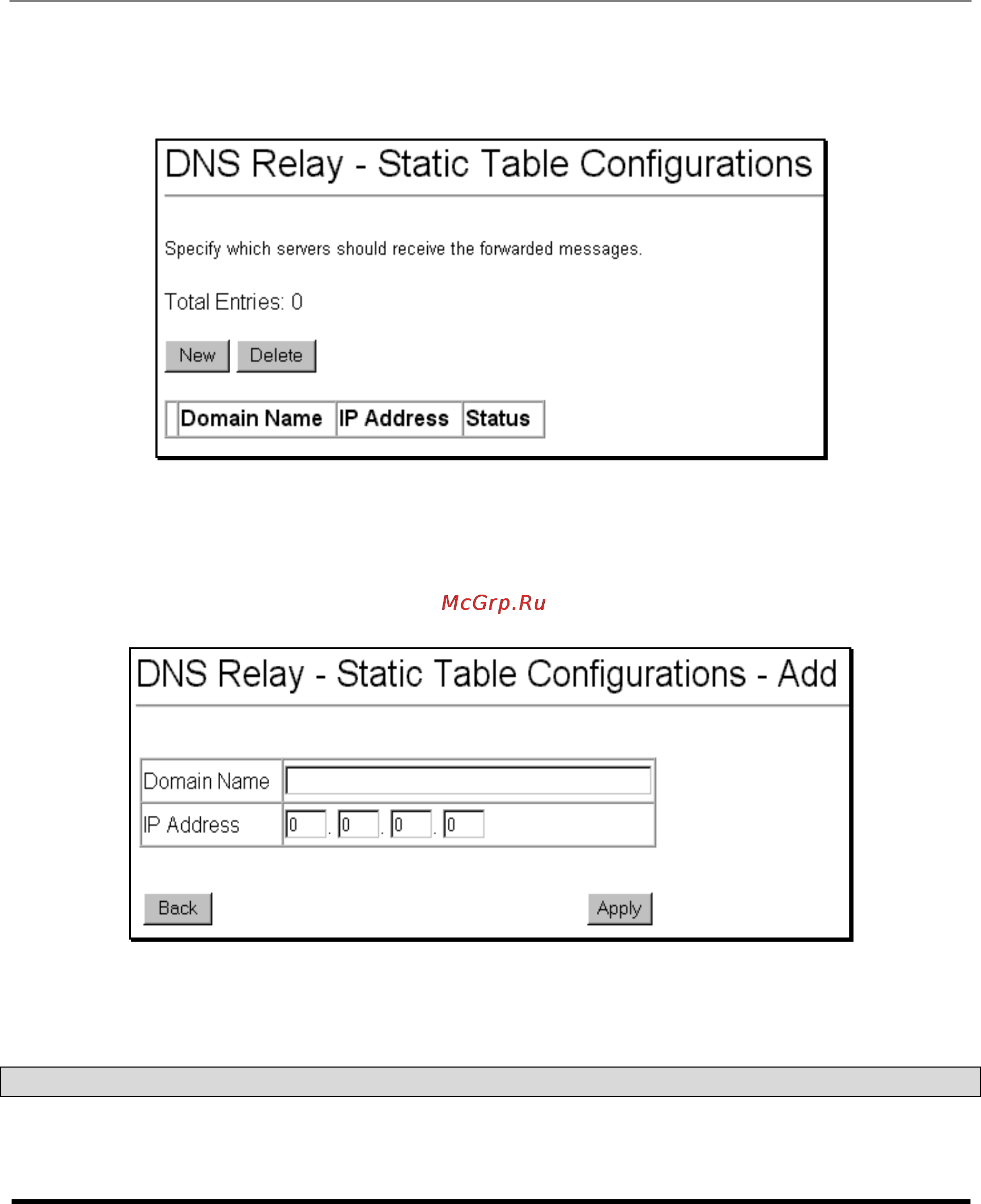

Figure 17- 10. DNS Relay Static Table Configuration
To create a new DNS Relay Static entry, enter the Domain Name and the associated IP address. Click on the
New button to enter the settings into the static table.
Figure 17- 11. DNS Relay Static Table Configuration − Add
The following fields can be set:
Parameter Description
Domain Name
The domain name used for the static entry.
IP Address
<0.0.0.0>
The IP address associated with the domain name.
