D-Link DES-3326SR Layer 3 Switch
Download Configuration File
To download a configuration file for the switch’s, click on the Basic Setup folder and then the switch Utilities
folder and then the TFTP Services folder and finally click on the Download Configuration from TFTP Server
link:

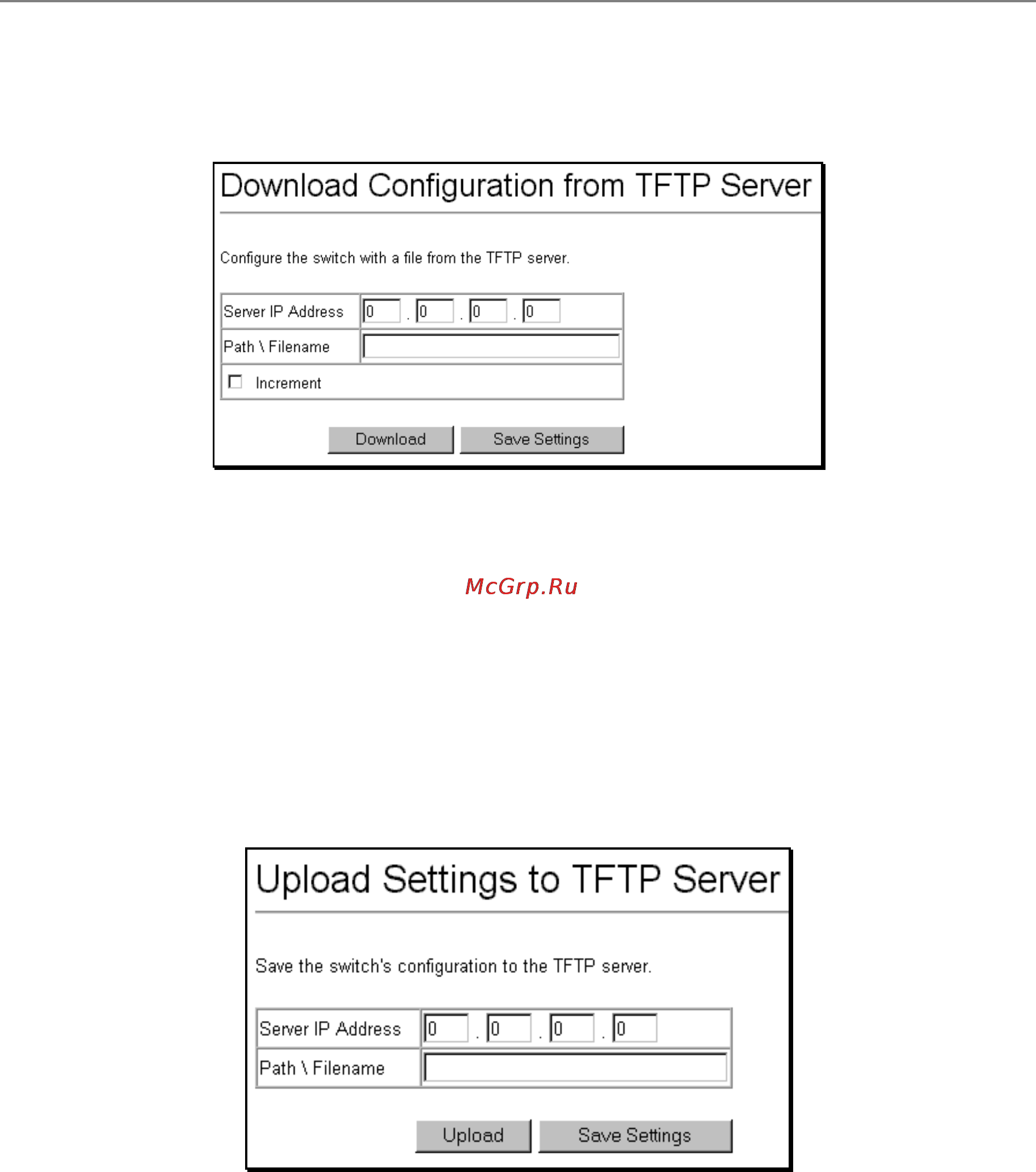

Figure 17- 2. Use Configuration File on Server
Enter the IP address of the TFTP server and specify the location of the switch configuration file on the TFTP
server.
Click Apply to record the IP address of the TFTP server. Use Save Changes from the Maintenance menu to
enter the address into NV-RAM
Click Start to initiate the file transfer.
Save Settings to Server
To download a configuration file for the switch’s, click on the Basic Setup folder and then the switch Utilities
folder and then the TFTP Services folder and finally click on the Upload Settings to TFTP Server link:
Figure 17- 3. Save Settings To TFTP Server
Enter the IP address of the TFTP server and the path and filename of the settings file on the TFTP server and
click Apply. Highlight Start to initiate the file transfer.
126
