D-Link DES-3326SR Layer 3 Switch
OSPF Interface Configuration
To set up OSPF interfaces, click the OSPF Interface Settings link to view OSPF settings for existing IP
interfaces. If there are no IP interfaces configured (besides the default System interface), only the System
interface settings will appear listed.
To configure an OSPF Interface, click on the OSPF Interface Configuration link:

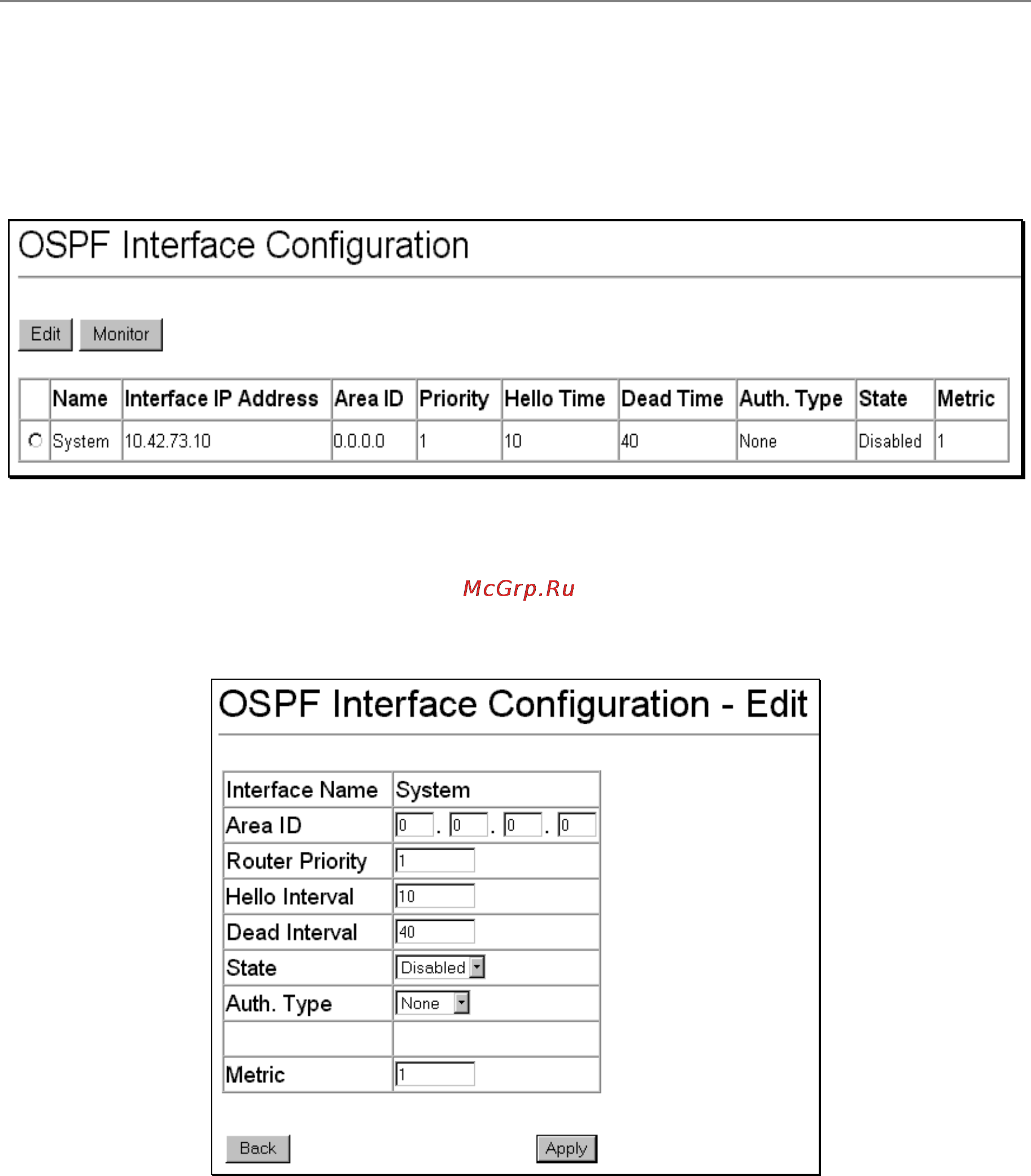

Figure 24- 8. OSPF Interface Configuration
All of the IP Interfaces currently configured on the switch will be displayed. Select the IP interface you want to
configure OSPF for, and then click the Edit button. This will open the following dialog box:
Figure 24- 9. OSPF Interface Configuration
Some OSPF interface settings require previously configured OSPF settings. Read the descriptions below for
details.
178
