D-Link DES-3326SR Layer 3 Switch

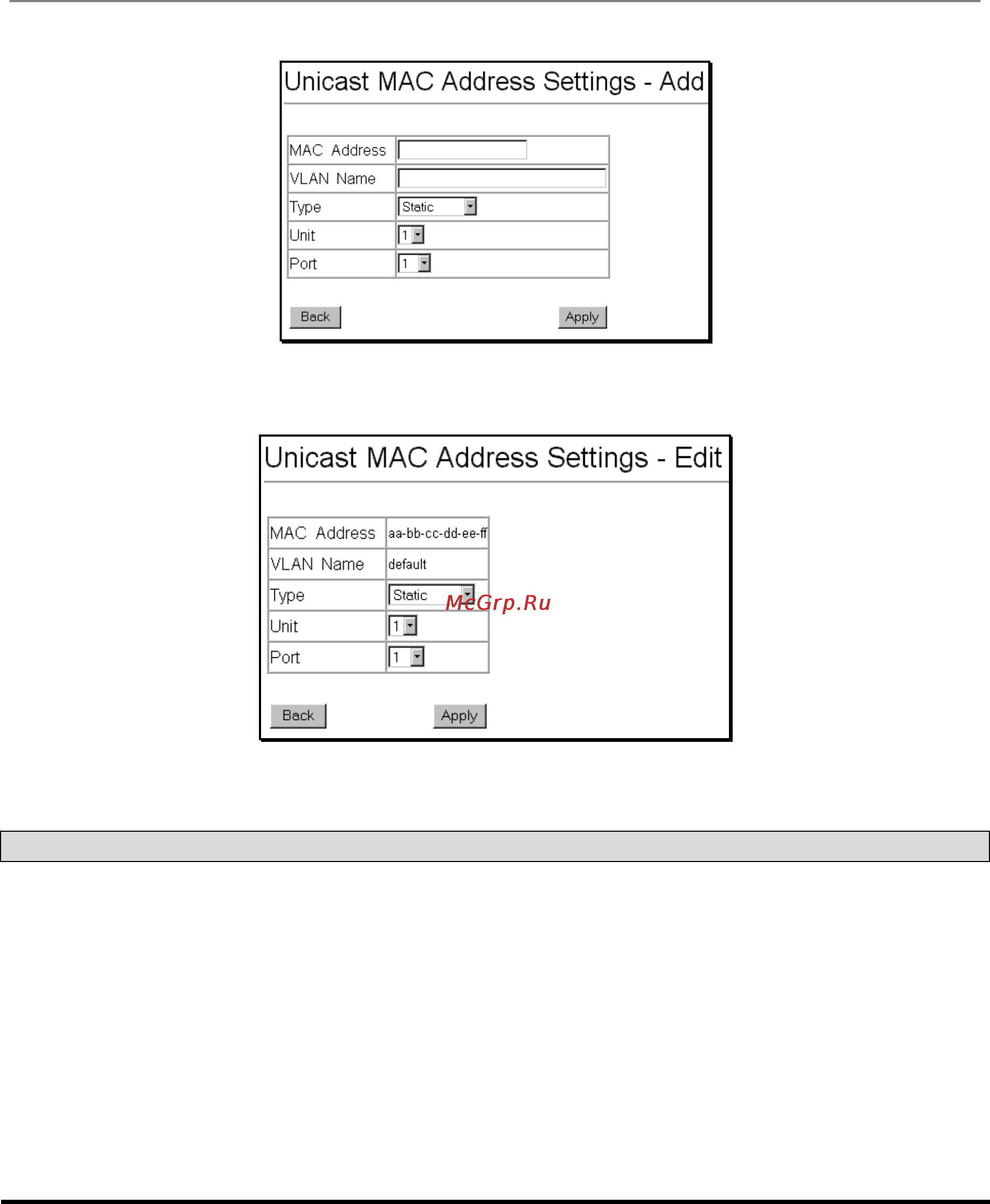

To add a new MAC address to the MAC Address Forwarding Table, click the New button:

Figure 8- 3. Unicast MAC Address Settings − Add

To edit an existing entry in the MAC address in the MAC Address Forwarding Table, click the Edit button:

Figure 8- 4. Unicast MAC Address Settings − Edit

The following fields can be set:

Parameter Description

MAC Address

Allows the entry of the MAC address of an end station that will be entered

into the switch’s static forwarding table when adding a new entry. Displays

the currently selected MAC address when editing.

VLAN Name

Allows the entry of the VLAN Name of the VLAN the MAC address below is a

member of − when editing. Displays the VLAN the currently selected MAC

address is a member of − when editing an existing entry.

Unit

Allows the selection of a given switch from a switch stack − if you have the

optional stacking module installed and have properly interconnected the

switches in a switch stack.

Port

Allows the entry of the port number on which the MAC address entered

above resides.
