D-Link DES-3326SR Layer 3 Switch

To establish the rule for a previously created Access Profile Mask:

Select the Access Profile from the Access Profile Mask Setting Table and click the Edit Rule button.

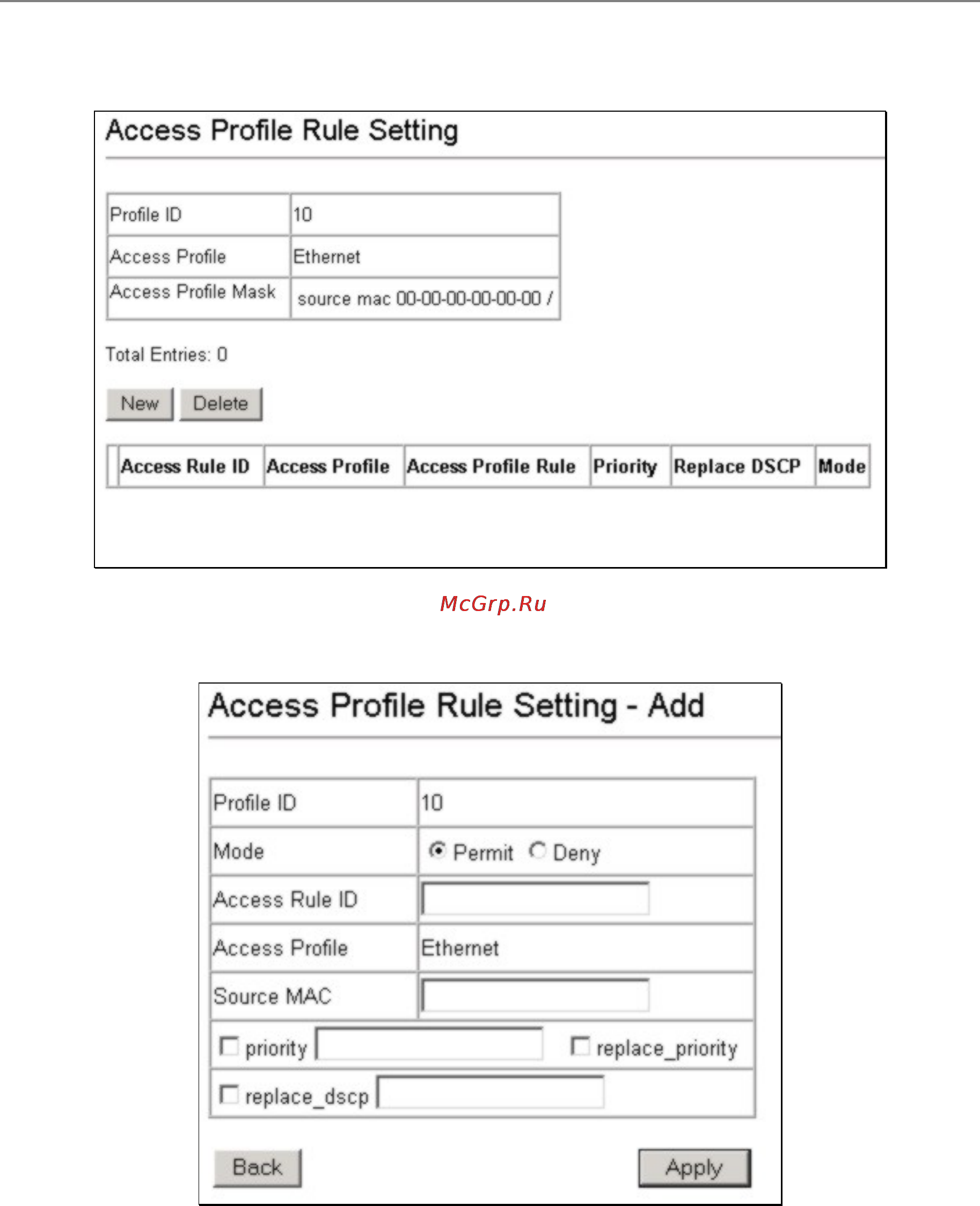

Figure 14- 4. Access Profile Rule Setting

To create a new rule set for the access profile click the New button. A new menu is displayed. To remove a

previously created rule, select it and lick the Delete button.

Figure 14- 5. Add Access Profile Rule
