ENGLISH
USER MANUAL
28
33019216(3)2010-09 A SR 1601 D3 / LPG3 / P3
HYDRAULIC OIL
WARNING!
Do not touch hot components.
Let the engine and hydraulic system cool down.
Drive the machine on a level fl oor, engage the parking brake 1.
and turn the ignition key (64) to “O”.
Open the engine compartment hood (1) by using the 2.
unlocking push-button (25).
Remove the left side hood (4) by using the latch, if 3.
necessary remove the water fi lter hose (30, optional).
Check the hydraulic oil level by means of the indicator on 4.
the tank (19).
The hydraulic oil level should be half way up the indicator.
If it is below this level, unscrew the plug (20) and add AGIP
Arnica 46 oil.
Change the oil if major contamination from a mechanical
failure occurs (see the procedure in the Service Manual).
ENGINE OIL
WARNING!
Do not touch hot components.
Let the engine cool down.
Drive the machine on a level fl oor, engage the parking brake 1.
and turn the ignition key (64) to “O”.
Open the engine compartment hood (1) by using the 2.
unlocking push-button (25).

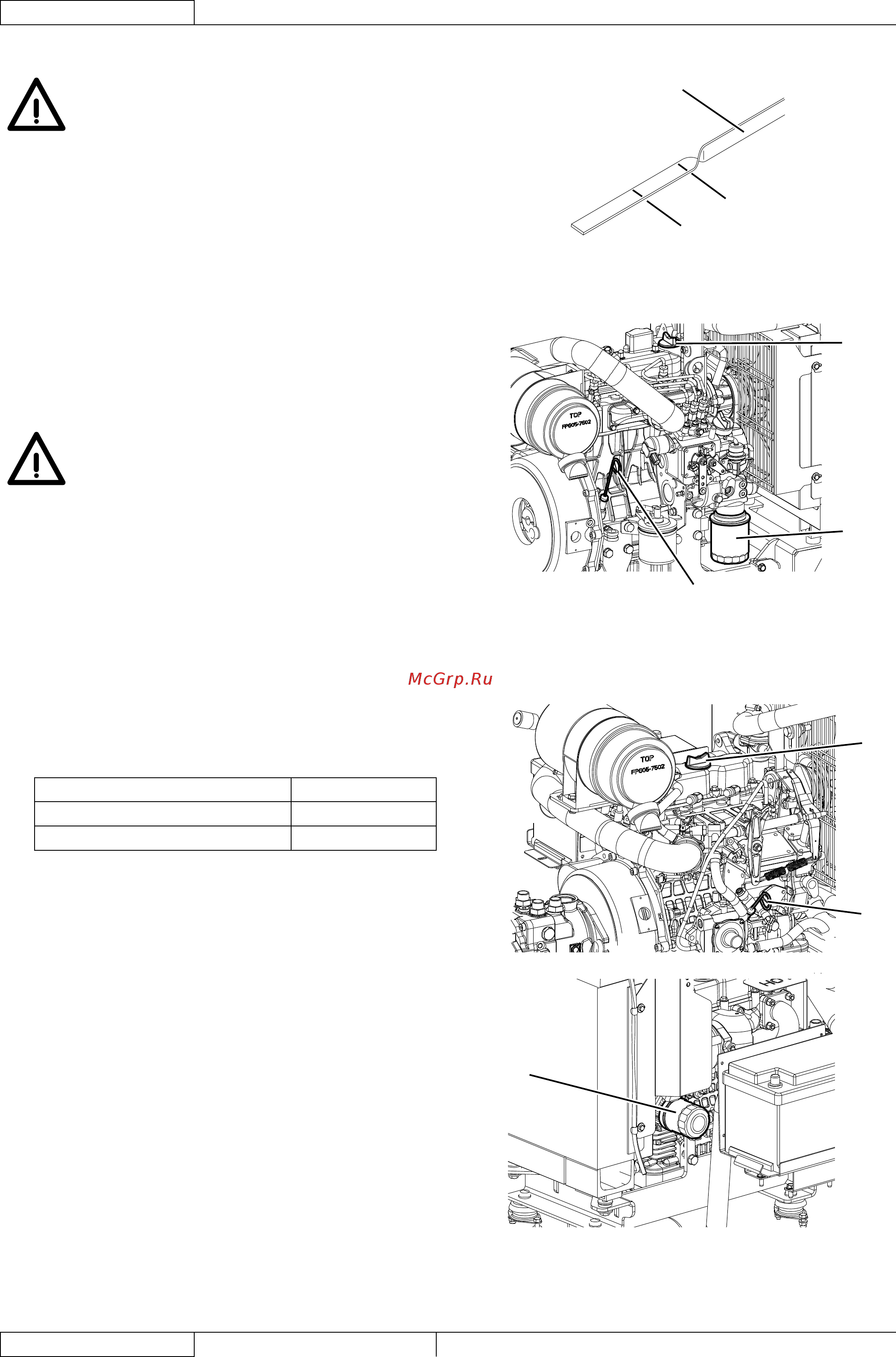

Check the engine oil level with the dipstick (A, Fig. 8-9-10) 3.
before each use of the machine.
If necessary, open the plug (B, Fig. 9-10) and top up.
(See the procedure in the engine relevant Manual)
Change the engine oil after the fi rst 50 hours of operation, 4.
and then after 150 hours.
The oil fi lter (C) should be replaced with every oil change
(see the procedure in the Service Manual).
According to the air temperature, use the type of oil
indicated below:
TEMPERATURE RANGE TYPE OF OIL
Above 60°F (15°C) SAE 10W-30
Below 60°F (15°C) SAE 5W-30
A
MIN
MAX
P100329A
Figure 8
C
A
SR 1601 D3
B
P100329D3
Figure 9
A
C
B
SR1601LPG3-SR1601P3
P100329P3
Figure 10
