FUSE CHECK/REPLACEMENT/RESET

Fuse check

Drive the machine on a level ﬂ oor.1.

Engage the parking brake.2.

Turn the ignition key (64) to “O” and remove it.3.

On the panel (38), check for deactivation of one of the following fuses (Fig. 11):4.

(A): F1 (30 A), dust vacuuming•

(B): F2 (16 A), ﬁ lter shaker•

(C): F4 (30 A), ignition key•

(D): F5 (16 A), engine accessories•

(E): F3 (10 A), dust guard system (if equipped)•

(F): F6 (10 A), working lights (optional)•

(G): F7, light system (optional)•

(H): F8, cab blower (optional)•

Reset any deactivated fuse, when the component that caused deactivation has fully cooled down.

Fuse check/replacement

Drive the machine on a level ﬂ oor.1.

Engage the parking brake.2.

Turn the ignition key (64) to “O” and remove it.3.

Open the engine compartment hood (1) by using the unlocking push-button (25).4.

In the driver’s seat area, remove the covers and check the following fuses for integrity (Fig. 12-13):5.

(I): F9 (50 A), pre-heating glow plug (only for SR 1601 D3)•

(J): F10 (50 A), alternator•

(K): F11 (1 A), hood inner light (optional)•

Replace any open fuse. Install the cover.

Close the engine compartment hood (1).6.

ABE

HDF

P100326

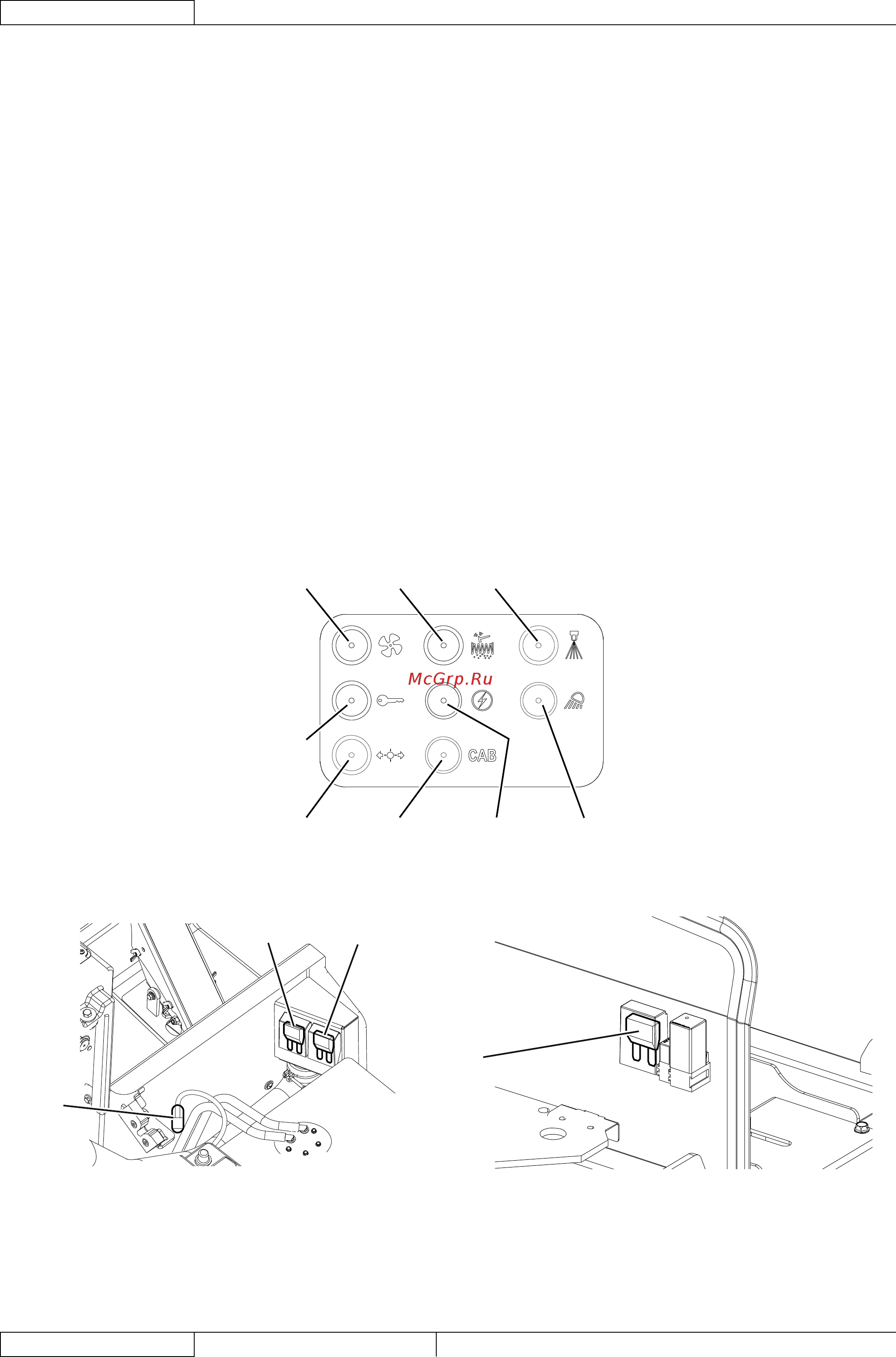

Figure 11

SR 1601 D3 - SR 1601 P3

SR 1601 LPG3

P100327 P100327LPG

Figure 12 Figure 13
