ESIE06-04 Additional Checks for Troubleshooting
Part 3 – Troubleshooting 3–57
3
3
4
5
1

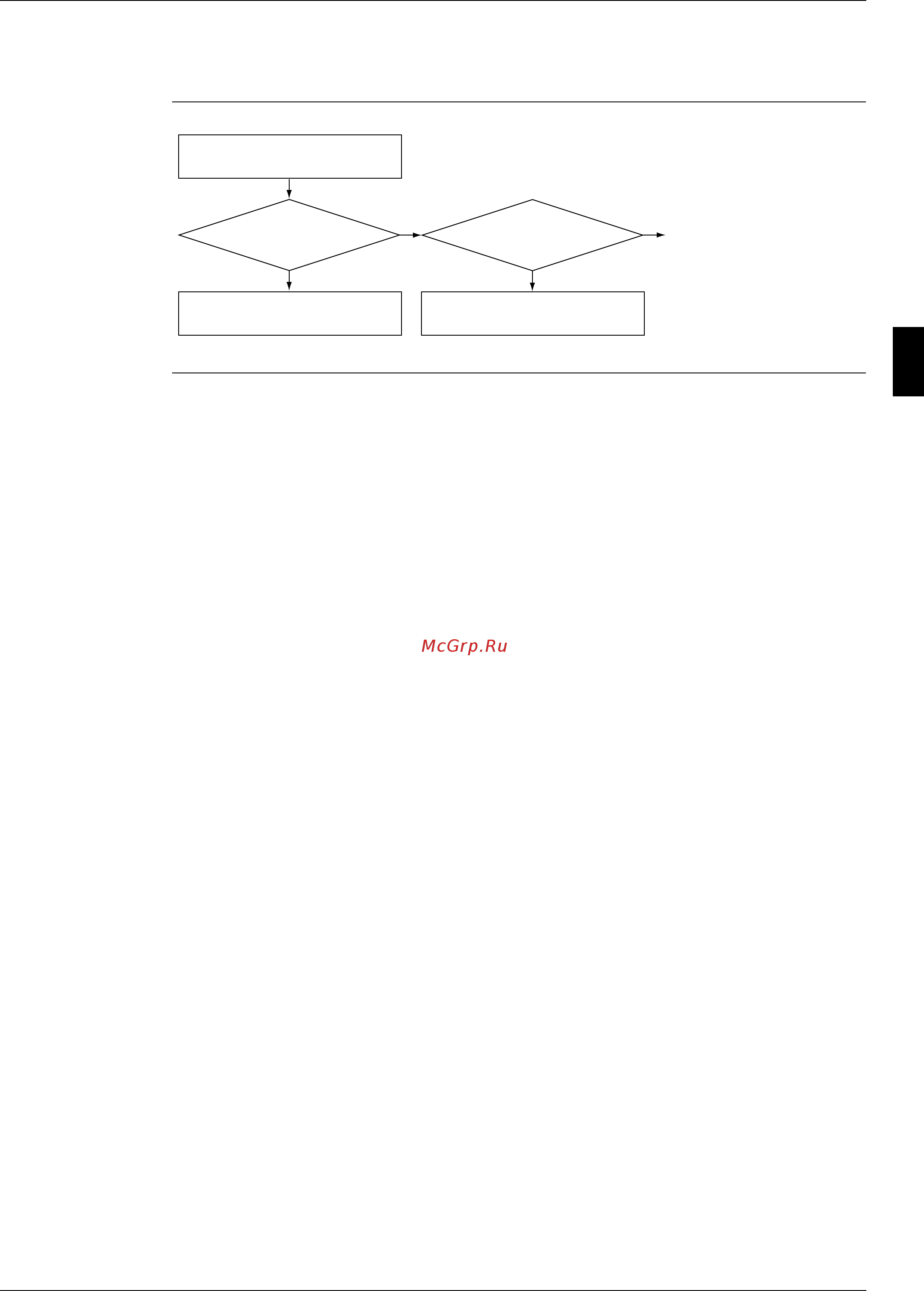

5.8 Outdoor Unit Fan System Check (With DC Motor)
Check No.09
Reconnect.
YES
Outdoor unit fan running?
Fan motor
lead wire connector
disconnected?
YESNO
NO
Check the outdoor unit fan system.
Outdoor unit fan system functioning. Go to Check No. 15.
