Field settings ESIE06-04
4–22 Part 4 – Commissioning and Test Run
3
1
4
5

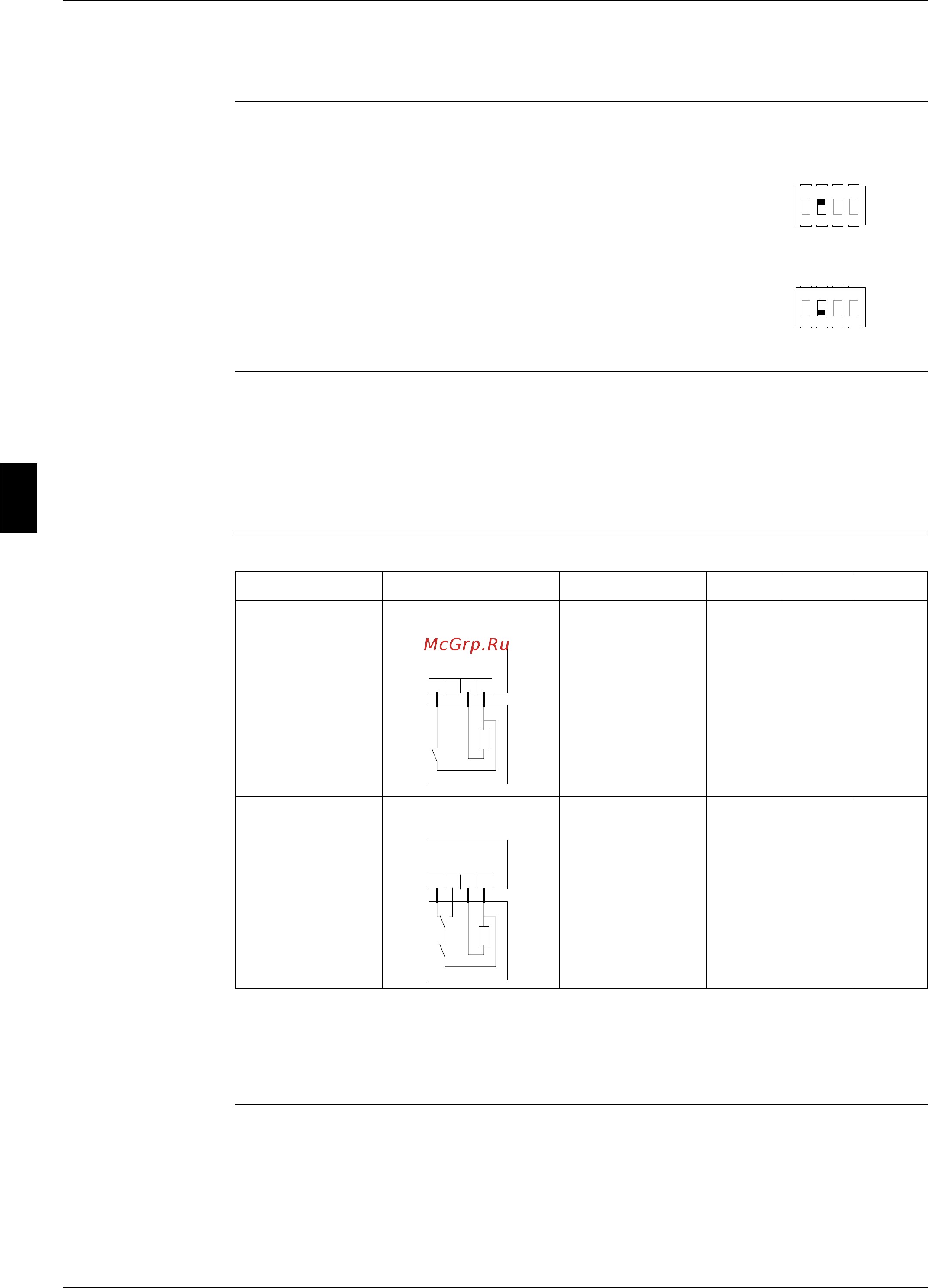

2.4.2 Dip Switch settings: Room Thermostat Installation Configuration
Outline
Remark
P When a room thermostat is connected to the Hydro-kit, the heating and cooling schedule timers
are never available. Other schedule timers are not affected. For more information on the schedule
timers, refer to the operation manual.
P When a room thermostat is connected to the Hydro-kit, and the = button or o button is
pressed, the centralised control indicator e will flash to indicate that the room thermostat has
priority and controls on/off operation and change over operation.
Summarize
P When no room thermostat is connected to the Hydro-kit, toggle
switch SS2-3 should be set to OFF.
P When a room thermostat is connected to the Hydro-kit, toggle
switch SS2-3 should be set to ON.
1234
OFFON
1234
OFFON
Thermostat Configuration Pump operation o = pr
Heating only
thermostat
SS2-3 = ON
wiring:
On when heating
request by room
thermostat
T——
Thermostat with
heating/cooling
switch
SS2-3 = ON
wiring:
On when heating
request or cooling
request by room
thermostat
TT—
Terminal bloc
k
HC
th
LN
23 17 15 13
Terminal bloc
k
HC
H
th
C
LN
23 17 15 13
th Thermostat contact
C Cooling contact
H Heating contact
L, N 230 V AC
