ESIE06-04 Outdoor Unit Functional Concept
Part 2 – Functional Description 2–19
3
2
4
5
1

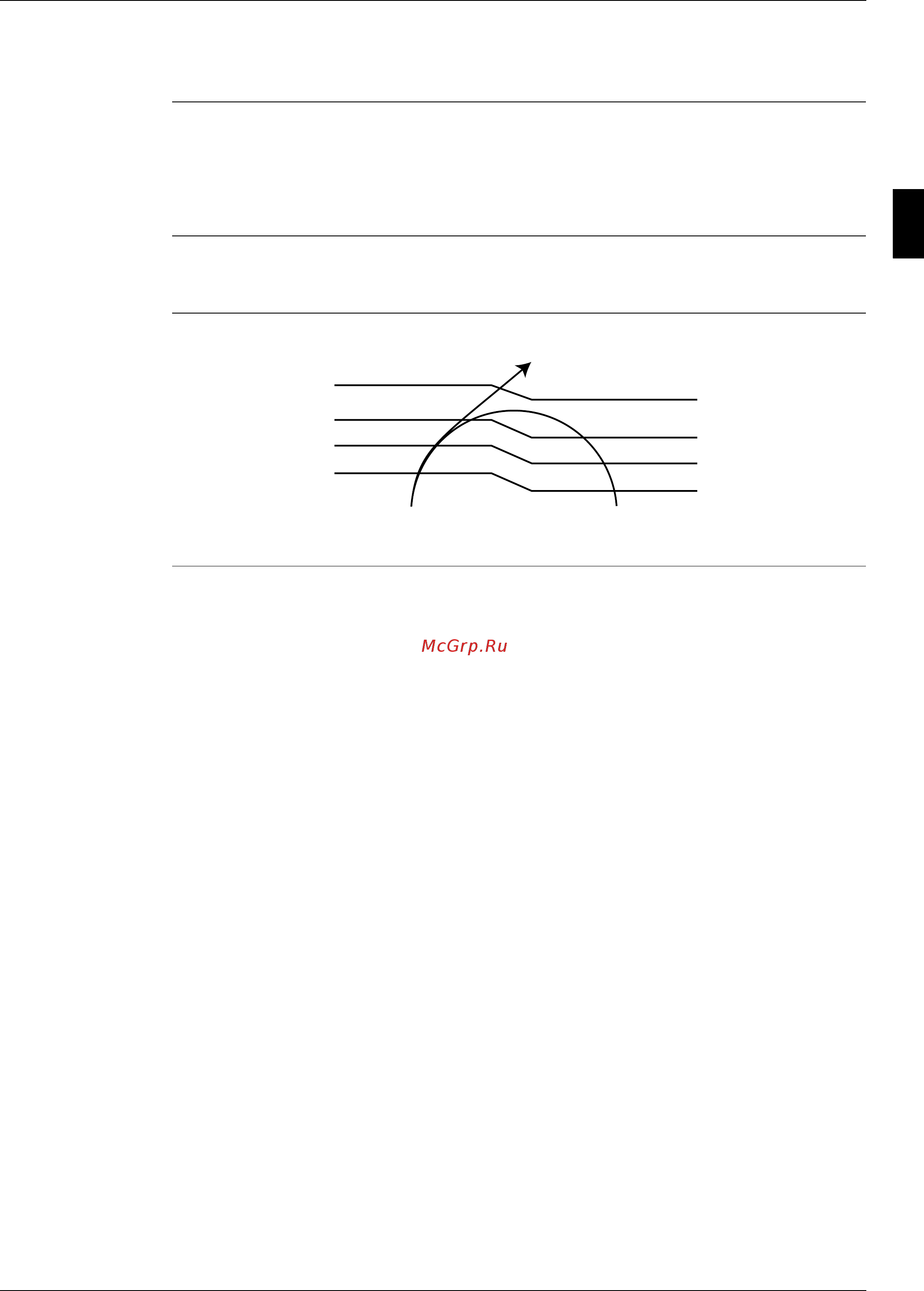

3.7 Heating Peak-cut Control
Outline Heat pump only
During heating operation, the signals being sent from the Hydro-kit allow the operating frequency
limitation and prevent abnormal high pressure (the signal from the Hydro-kit must be divided as
follows).
Conditions for start
controlling
Judge the controlling start with the indoor heat exchanger temperature after 5 sec from operation start.
Control in each
zone
The heat exchange intermediate temperature of Hydro-kit controls the following.
Heat exchanger
thermistor temperature
Return / Reset zone
Up zone
Keep zone
Drooping zone
Stop zone
