General Outline: Mini-chiller ESIE06-04
1–6 Part 1 – System Outline
3
1
1
4
5

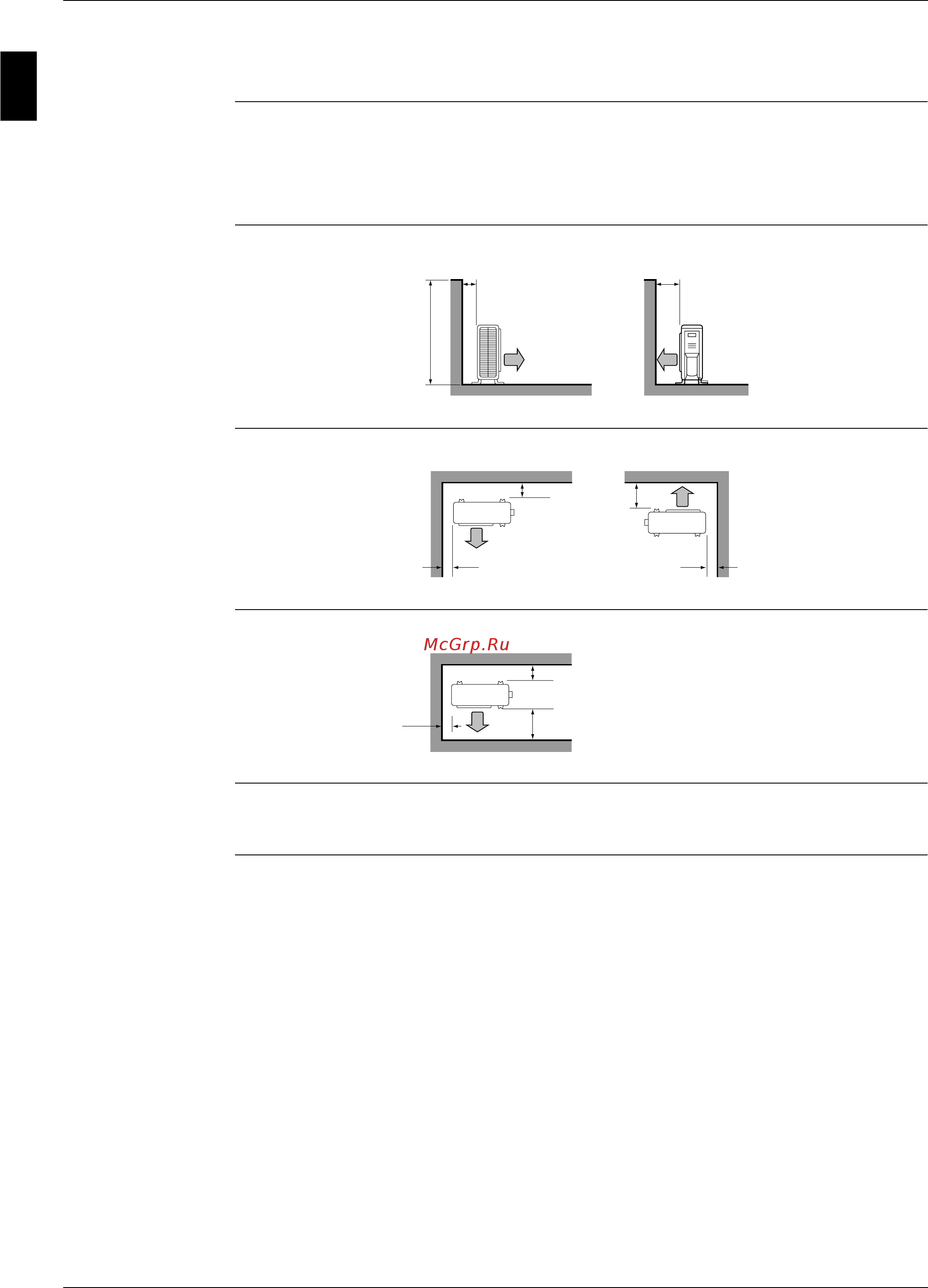

1.3 EWA(Y)Q005~007A*V3: Installation and Service Space
Installing near a
wall or obstacle
P Where a wall or other obstacle is in the path of the outdoor unit air intake or exhaust airflow, follow
the installation guidelines below.
P For any of the installation patterns below, the wall height on the exhaust side should be 1200 mm
or less.
Wall facing one side
(unit: mm)
Walls facing two
sides (unit: mm)
Walls facing three
sides (unit: mm)
Remark:
P Back to back: 300 mm
P Front to front: 5000 mm
>100
>350
<1200
>50
>50
>350
>100
>100
>350
>50
