D -808 C – 08/01 A – EN Pag. 20/72
Positioning and assembly
All units are designed for installation indoors. The machine must be installed on a robust and perfectly level foundation;
should the machine be installed on balconies or roofs, it might be necessary to use weight distribution beams.
For installation on the ground, prepare a strong cement base that is at least 250 mm wider and longer than the machine.
Also, this base must be strong enough to support the weight of the machine as stated in the technical specifications.
If the machine is installed in places that are easily accessible to people and animals, it is advisable to install protection
gratings for the compressor section.
To ensure the best possible performance on the installation site, the following precautions and instructions must be
followed:
• Make sure to provide a strong and solid foundation to reduce noise and vibration as much as possible.
• The water in the system must be particularly clean and all traces of oil or rust must be removed. A mechanical water
filter must be installed on the machine’s inlet piping.
Minimum space requirements
Every side of the machine must be accessible for all post-installation maintenance activities. Figure 3 shows the
minimum space necessary.

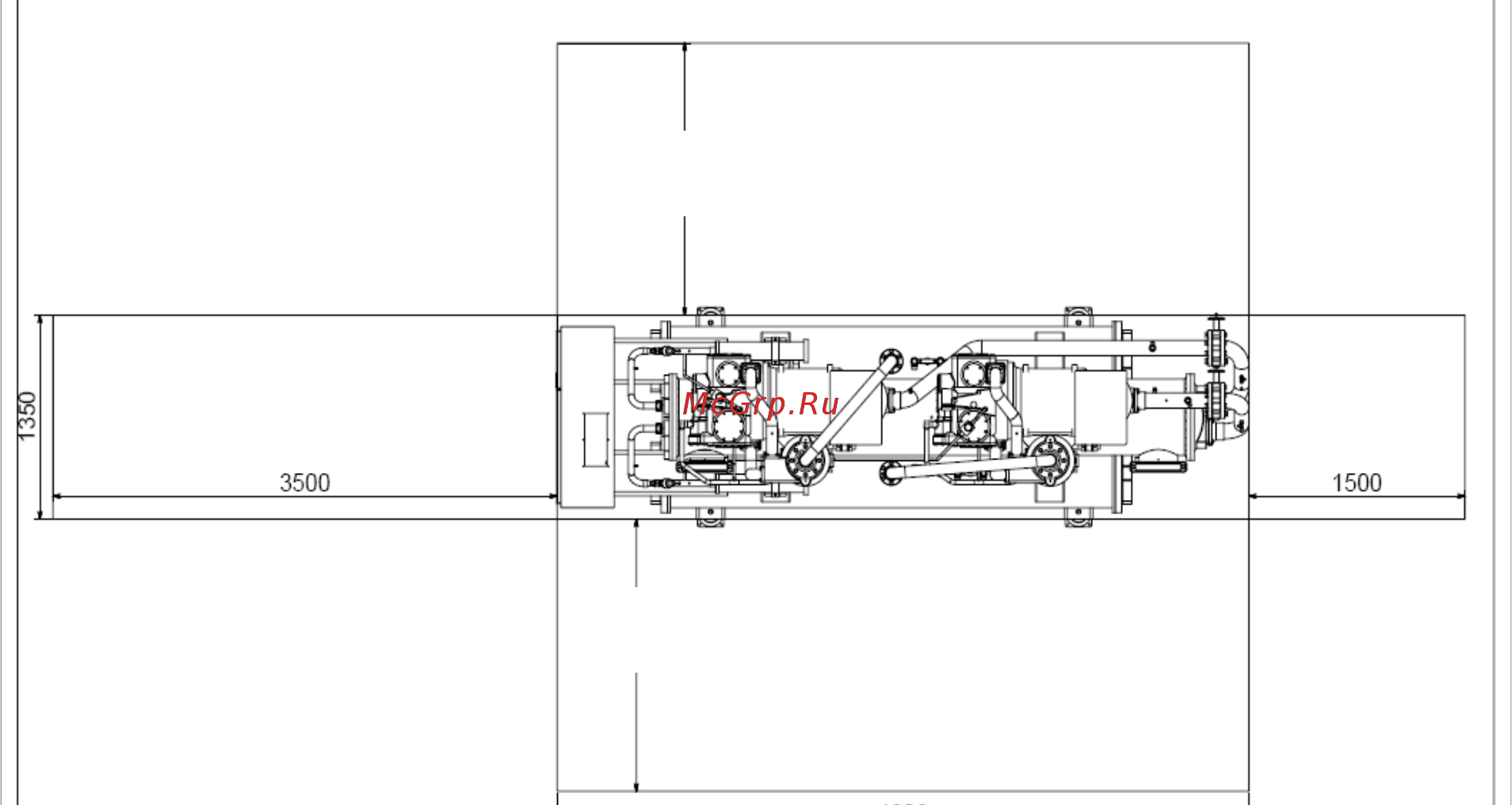

Fig. 3 – Minimum clearance requirements for machine maintenance
Ventilation
The temperature of the room where the unit is placed should be always maintained between 0°C and 40°C.
Sound protection
When sound levels require special control, great care must be exercised to isolate the machine from its base by
appropriately applying anti-vibration elements (supplied as an option). Flexible joints must be installed on the water
connections, as well.
Water piping
Piping must be designed with the lowest number of elbows and the lowest number of vertical changes of direction. In this
way, installation costs are reduced considerably and system performance is improved.
The water system should have:
1. Anti-vibration mountings in order to reduce transmission of vibrations to the underlying structure.
2. Isolating valves to isolate the machine from the water system during service.
1200
1200
