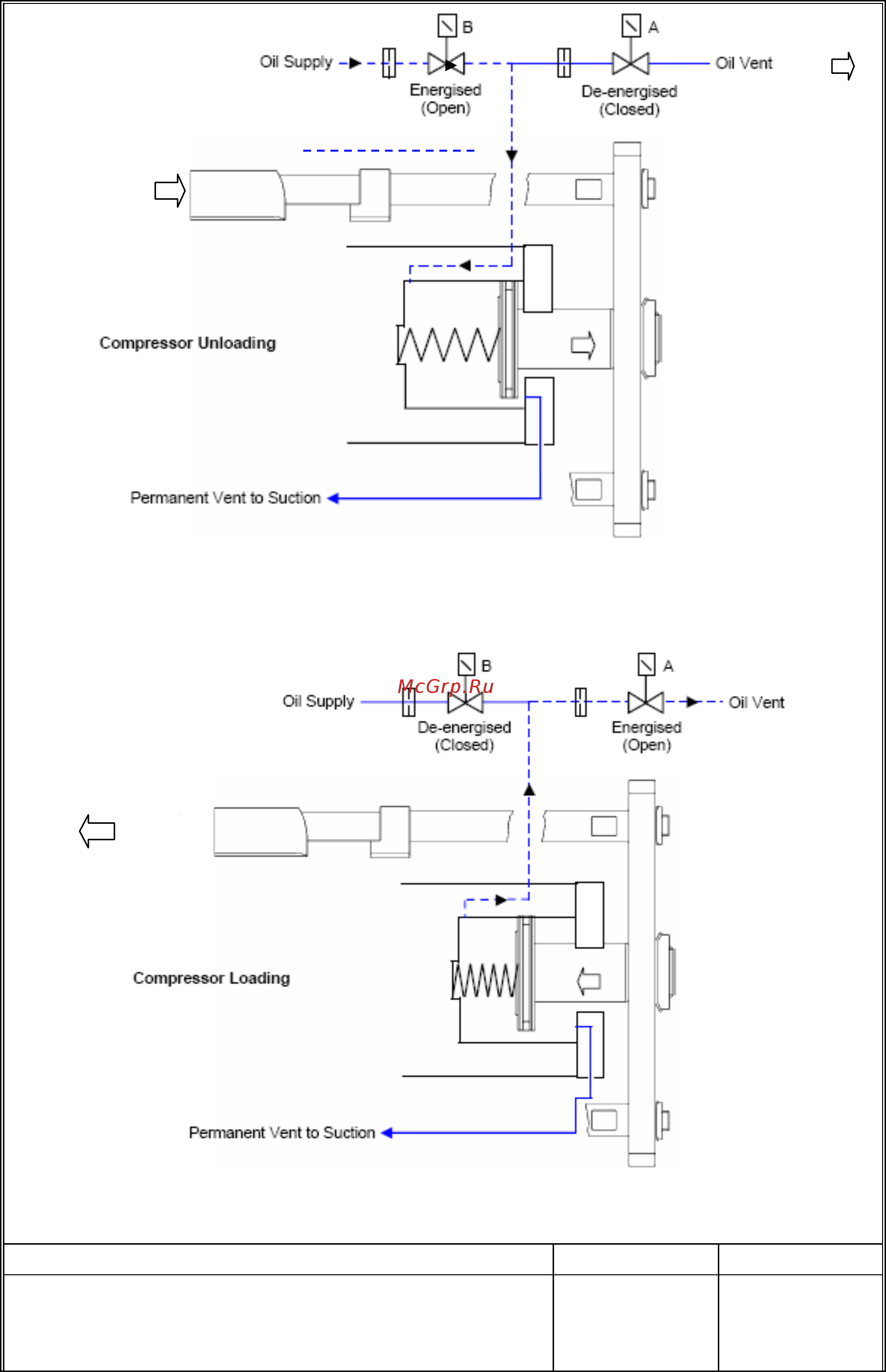

Spring Force + Oil Pressure > Suction/Discharge Differential Pressure = Slide valve moves toward unload
Suction/Discharge Differential Pressure > Spring Force = Slide valve moves toward load
CAPACITY CONTROL ACTION SOLENOID VALVE A
1
SOLENOID VALVE B
Load compressor
Oil is vented from the capacity control cylinder. The suction/discharge
differential pressure overcomes the force of the spring and moves the slide
valve towards the maximum load position.
Energised (open)
De-energised
(closed)
Unload
Load
