Installing the flow switch
To ensure sufficient water flow through the evaporator, it is essential that a flow switch be installed on the water circuit.
The flow switch can be installed either on the inlet or outlet water piping. The purpose of the flow switch is to stop the
machine in the event of interrupted water flow, thus protecting the evaporator from freezing.
A flow switch specifically gauged for this purpose, with identification code 131035072, is available as an option.
This paddle-type flow switch is suitable for heavy-duty outdoor applications (IP67) for pipe diameters in the range of 1" to
6".
The flow switch is provided with a clean contact which must be electrically connected to the terminals of the terminal
board (check the machine’s wiring diagram for further information).
For further information regarding device installation and settings, please read the instruction leaflet in the device box.

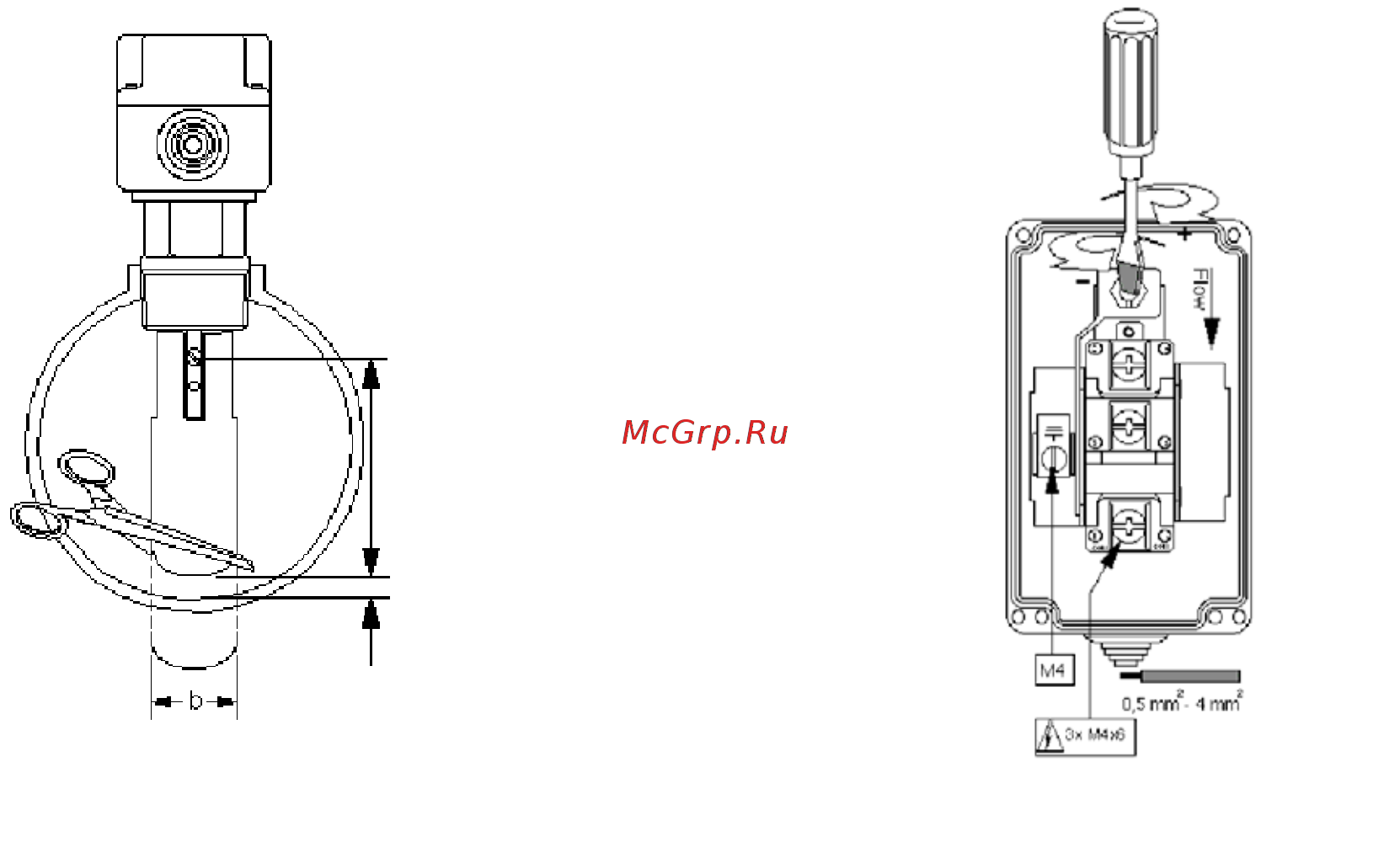

Fig. 5 - Adjusting the safety flow switch
Refrigerating circuit safety valves
Each system comes with safety valves that are installed on each circuit, both on the evaporator and on the condenser.
The purpose of the valves is to release the refrigerant inside the refrigerant circuit in the event of certain malfunctions.
3” 83 mm
4” 107 mm
5” 134 mm
6” 162 mm
>
5mm
For 3” - 6” piping
Use paddle b = 29 mm
Adjusting the flow switch’s
trigger sensitivity
