![Daikin EWWQC13AJYNN/A [44/72] Fig 20 refrigeration cycle of the ewwq ajynn ewwq ajynn a mono fr4 unit](/img/pdf.png)
Daikin EWWQC13AJYNN/A [44/72] Fig 20 refrigeration cycle of the ewwq ajynn ewwq ajynn a mono fr4 unit
![Daikin EWWQC19AJYNN/A [44/72] Fig 20 refrigeration cycle of the ewwq ajynn ewwq ajynn a mono fr4 unit](/views2/1658954/page44/bg2c.png)
D -808 C – 08/01 A – EN Pag. 44/72

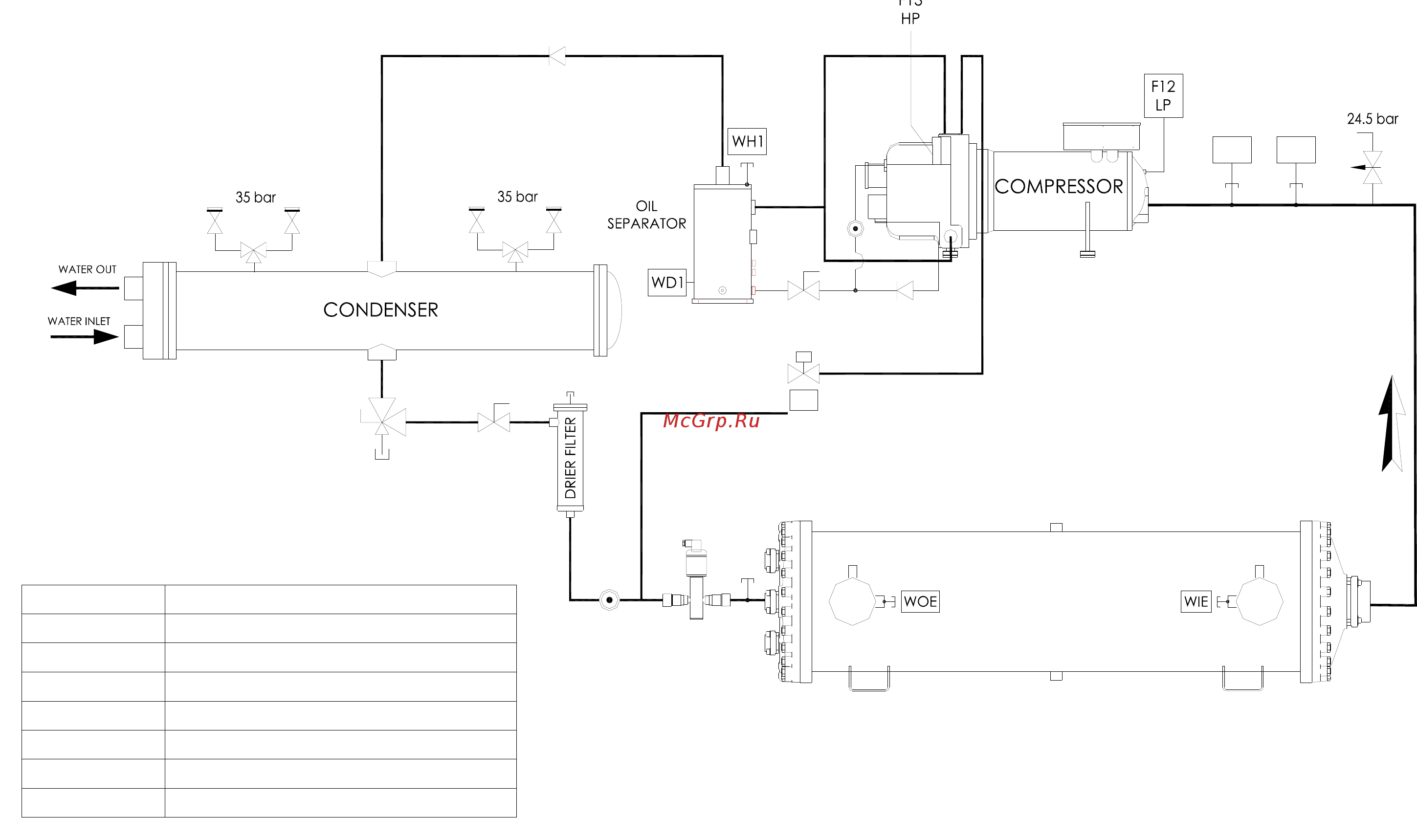

Fig. 20 - Refrigeration cycle of the EWWQ – AJYNN / EWWQ – AJYNN/A Mono Fr4 unit
WL1ST1
EVAPORATOR
EX8
ELECTRONIC
EXP. VALVE
WATER
INLET
WATER
OUTLET
Y5
LOW PRESSURE SWITCH
HIGH PRESSURE SWITCH
F12-22 LP
F13-23 HP
LOW PRESSURE TRANSDUCER (0 ÷ 30 bar)
HIGH PRESSURE TRANSDUCER (0 ÷ 45 bar)
LEAVING WATER TEMPERATURE
ENTERING WATER TEMPERATURE
WH1-2
WOE
WL1-2
WIE
OIL TEMPERATURE
WD1-2
ST1-2
SUCTION TEMPERATURE
