D -808 C – 08/01 A – EN Pag. 22/72

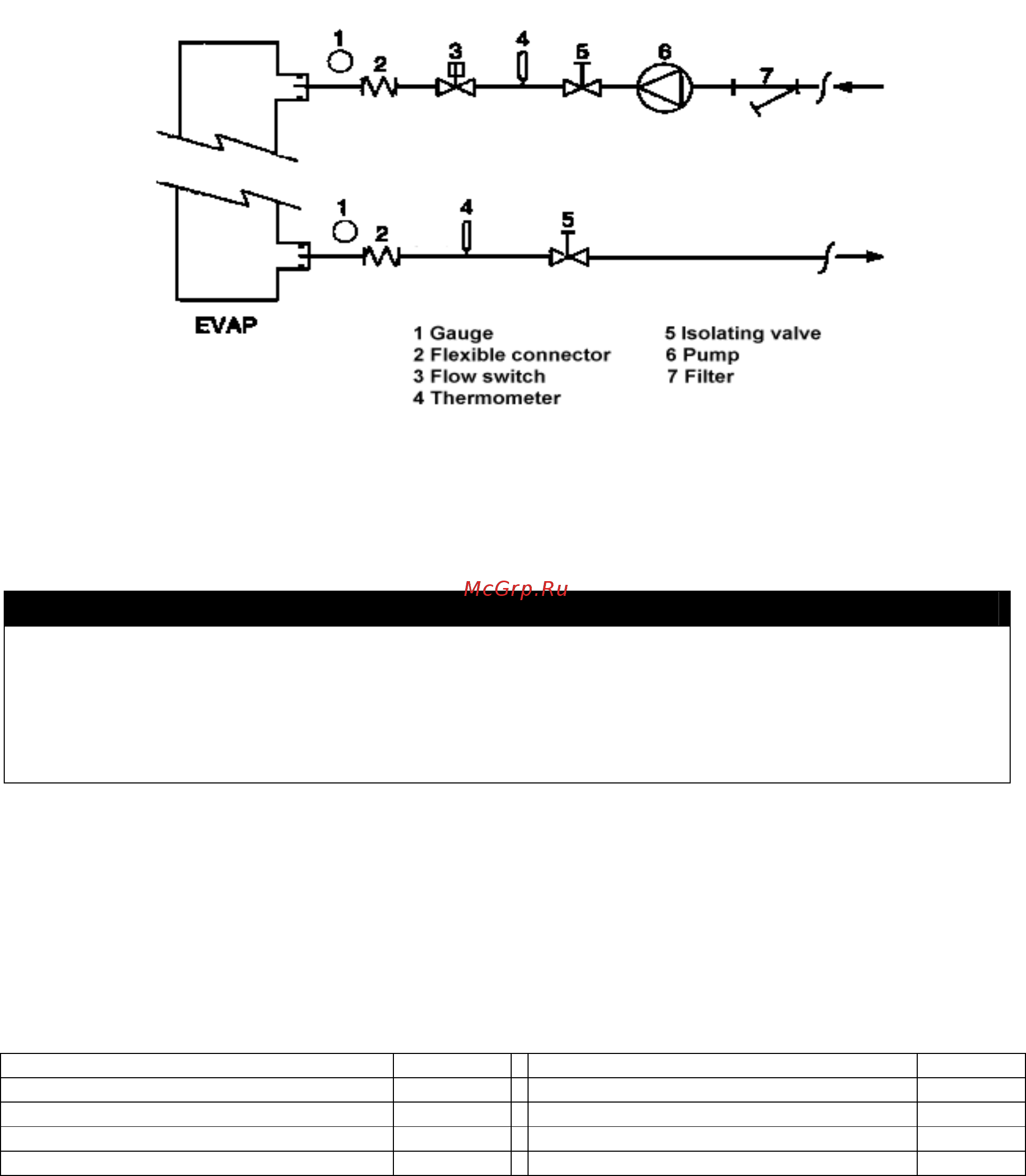

Fig. 4 – Water piping connection for heat recovery exchangers
CAUTION
Install a mechanical filter on the inlet to each heat exchanger. Failure to install a mechanical filter allows solid
particles and/or welding slag to enter the exchanger. Installation of a filter with a mesh size not exceeding 0.5 mm in
diameter is advised.
The manufacturer cannot be held responsible for any damage to exchangers ensuing from the lack of a mechanical
filter.
Water treatment
Before putting the machine into operation, clean the water circuit. Dirt, scaling, corrosion residue and other foreign
material can accumulate inside the heat exchanger and reduce its heat exchanging capacity. Pressure drops can
increase as well, thus reducing water flow. Proper water treatment therefore reduces the risk of corrosion, erosion,
scaling, etc. The most appropriate water treatment must be determined locally, according to the type of system and local
characteristics of the process water.
The manufacturer is not responsible for damage to or malfunctioning of equipment caused by failure to treat water or by
improperly treated water.
Table 11 – Acceptable water quality limits
PH (25°C)
6.8÷8.0
Total hardness (mg CaCO
3
/ l)
< 200
Electricity conductivity μS/cm (25°C) <800
Iron (mg Fe / l)
< 1.0
Chloride ion (mg Cl
-
/ l)
<200
Sulphide ion (mg S
2 -
/ l) None
Sulphate ion (mg SO
2
4
-
/ l)
<200
Ammonium ion (mg NH
4
+
/ l)
< 1.0
Alkalinity (mg CaCO
3
/ l)
<100
Silica (mg SiO
2
/ l)
< 50
Evaporator and exchangers anti-freeze protection
Two or more of below protection methods should be considered when designing the system as a whole:
1. Continuous water flow circulation inside piping and exchangers.
2. Addition of an appropriate amount of glycol inside the water circuit.
3. Additional heat insulation and heating of exposed piping.
4. Emptying and cleaning of the heat exchanger during the winter season.
It is the responsibility of the installer and/or local maintenance personnel to ensure that two or more of the described anti-
freeze methods are used. Make sure that appropriate anti-freeze protection is maintained at all times. Failure to follow
the instructions above could result in damage to some of the machine’s components. Damage caused by freezing is not
covered by the warranty.
