- 100 - BIOS Setup

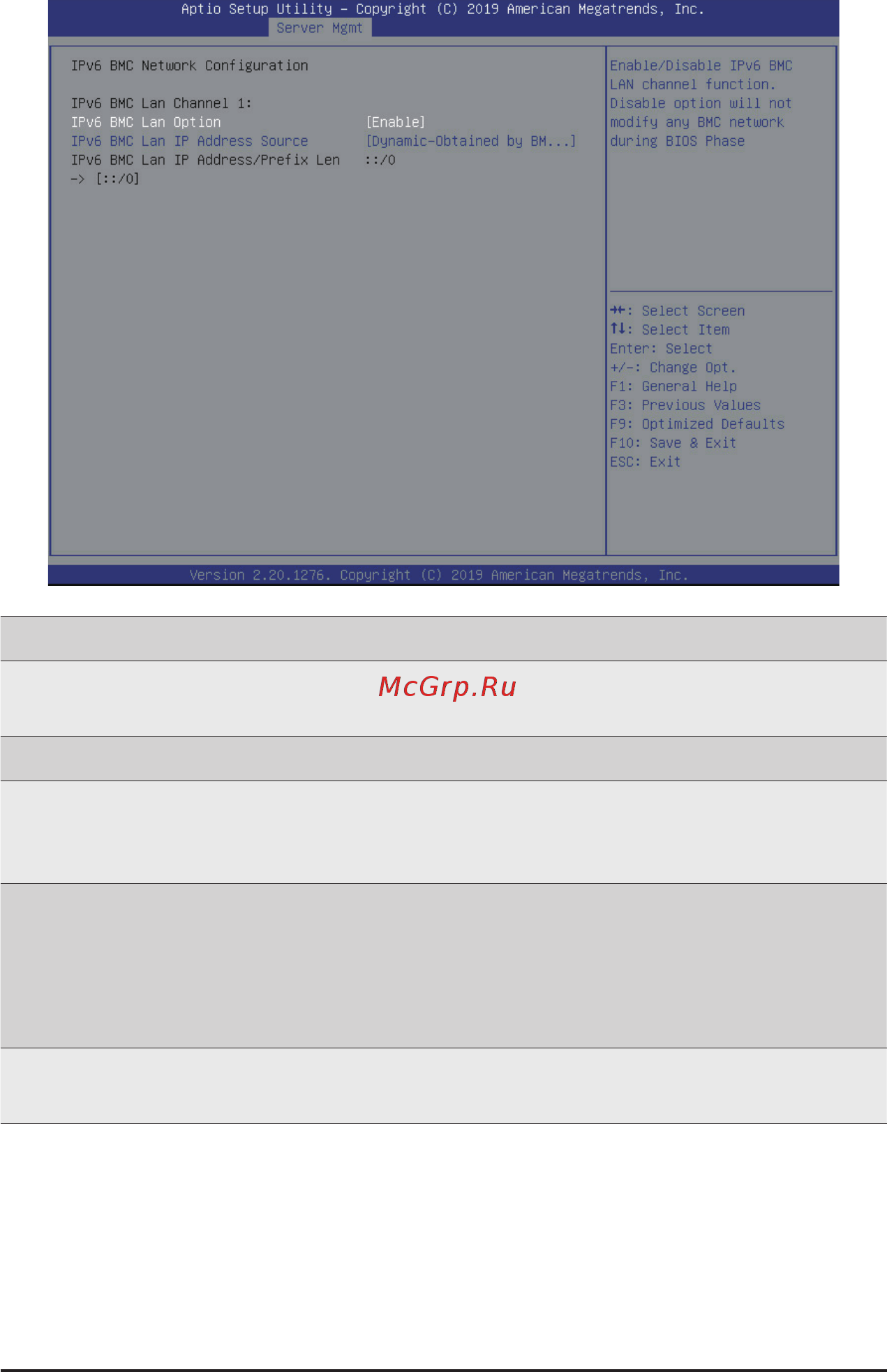

5-4-5 IPv6 BMC Network Conguration

Parameter

Description

IPv6 BMC Network

Conguration

IPv6 BMC Lan Channel 1

IPv6 BMC Lan Option

Enable/Disable IPv6 BMC LAN channel function. When this item is disabled,

the system will not modify any BMC network during BIOS phase.

Options available: Unspecied, Enable, Disable. Default setting is Enable.

IPv6 BMC Lan IP Address

Source

Select to configure LAN channel parameters statically or dynamically (by

BIOS or BMC).

Options available: Unspecied, Static, Dynamic-Obtained by BMC running

DHCP.

Default setting is Dynamic-Obtained by BMC running DHCP.

IPv6 BMC Lan IP Address/

Prex Length

Check if the IPv6 BMC LAN IP address matches those displayed on the

screen.
