System Appearance - 20 -

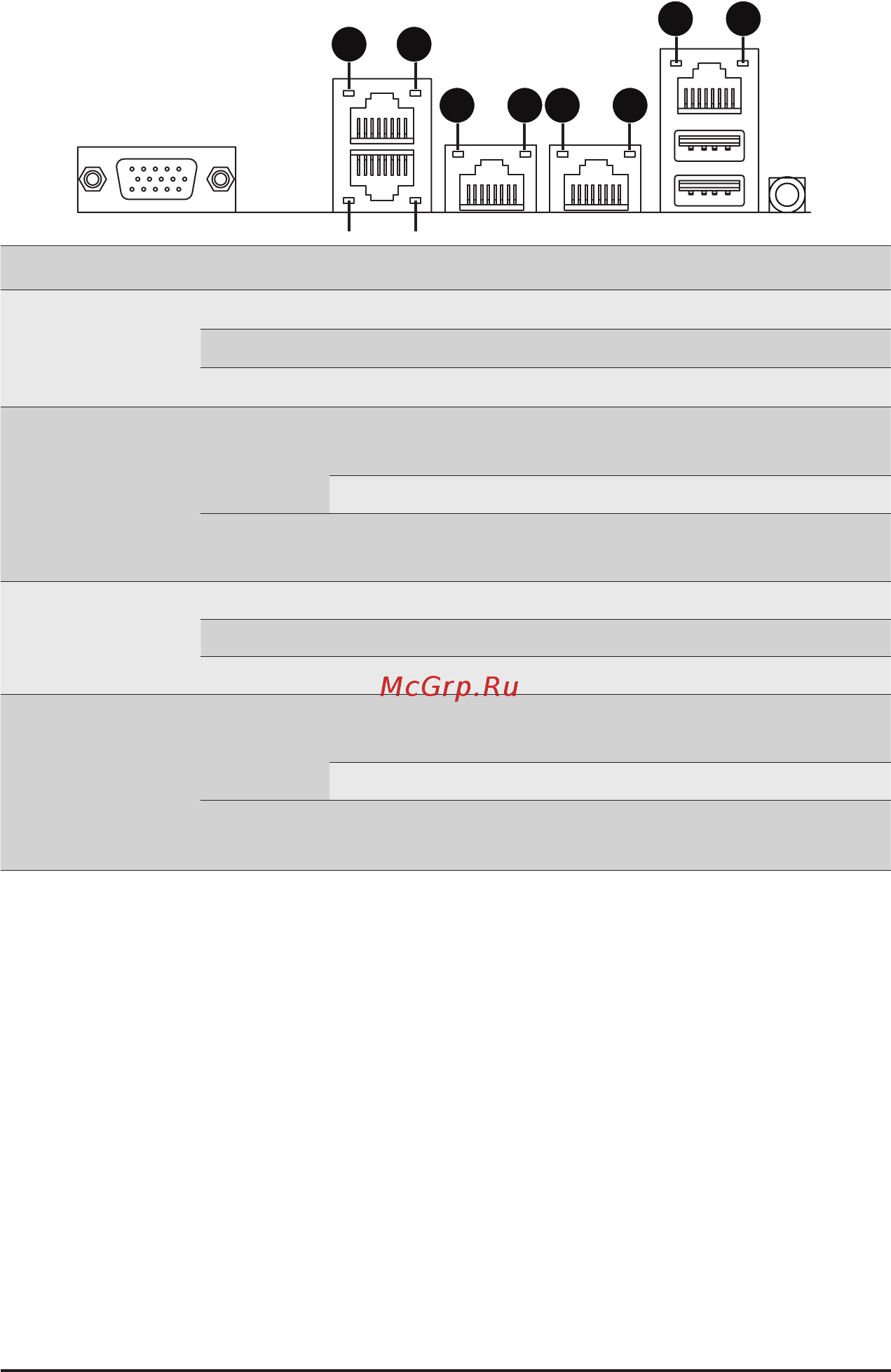

2-4 Rear System LAN LEDs

No. Name Color Status Description

1GbE

Speed LED

Yellow On 1 Gbps data rate

Green On 100 Mbps data rate

N/A Off 10 Mbps data rate

1GbE

Link/

Activity

LED

Green

On Link between system and

network or no access

Blink Data transmission or receiving is occurring

N/A Off No data transmission or

receiving is occurring

10GbE

Speed LED

Yellow On 10 Gbps data rate

Green On 1000 Mbps data rate

N/A Off 100 Mbps data rate

10GbE

Link/

Activity

LED

Green On Link between system and

network or no access

Blink Data transmission or receiving is occurring

N/A Off No data transmission or

receiving is occurring
