- 77 - BIOS Setup

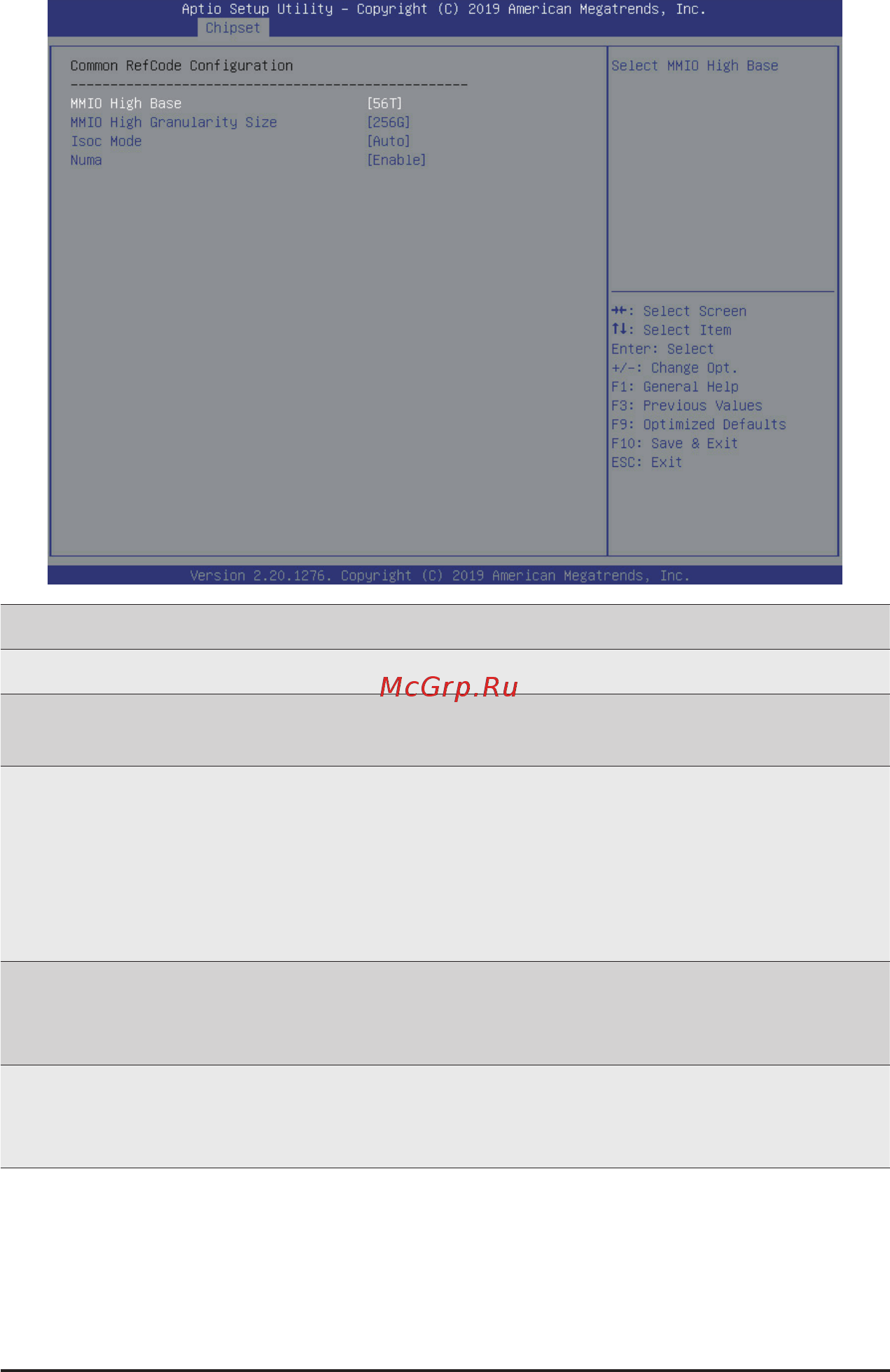

5-3-2 Common RefCode Conguration
Parameter
Description
Common RefCode Conguration
MMIO High Base
Selects the MMIO High Base setting.
Options available: 56T, 40T, 24T, 16T, 4T, 1T. Default setting is 56T.
MMIO High Granularity Size
Selects the allocation size used to assign mmioh resources.
Total mmioh space can be up to 32xgranularity. Per stack mmioh
resource assignments are multiples of the granularity where 1 unit
per stack is the default allocation.
Options available: 1G, 4G, 16G, 64G, 256G, 1024G. Default setting
is 256G.
Isoc Mode
Enable/Disable the Isochronous support in order to meet the QoS
requirements (Quality of Service).
Options available: Auto, Enable, Disable. Default setting is Auto.
Numa (Non-Uniform Memory
Access)
Enable/Disable Non-uniform Memory Access (NUMA) support to
improve the system performance.
Options available: Enable/Disable. Default setting is Enable.
