Gigabyte G241-G40 (rev. 100) [21/117] 5 power supply unit psu led

- 21 - System Appearance

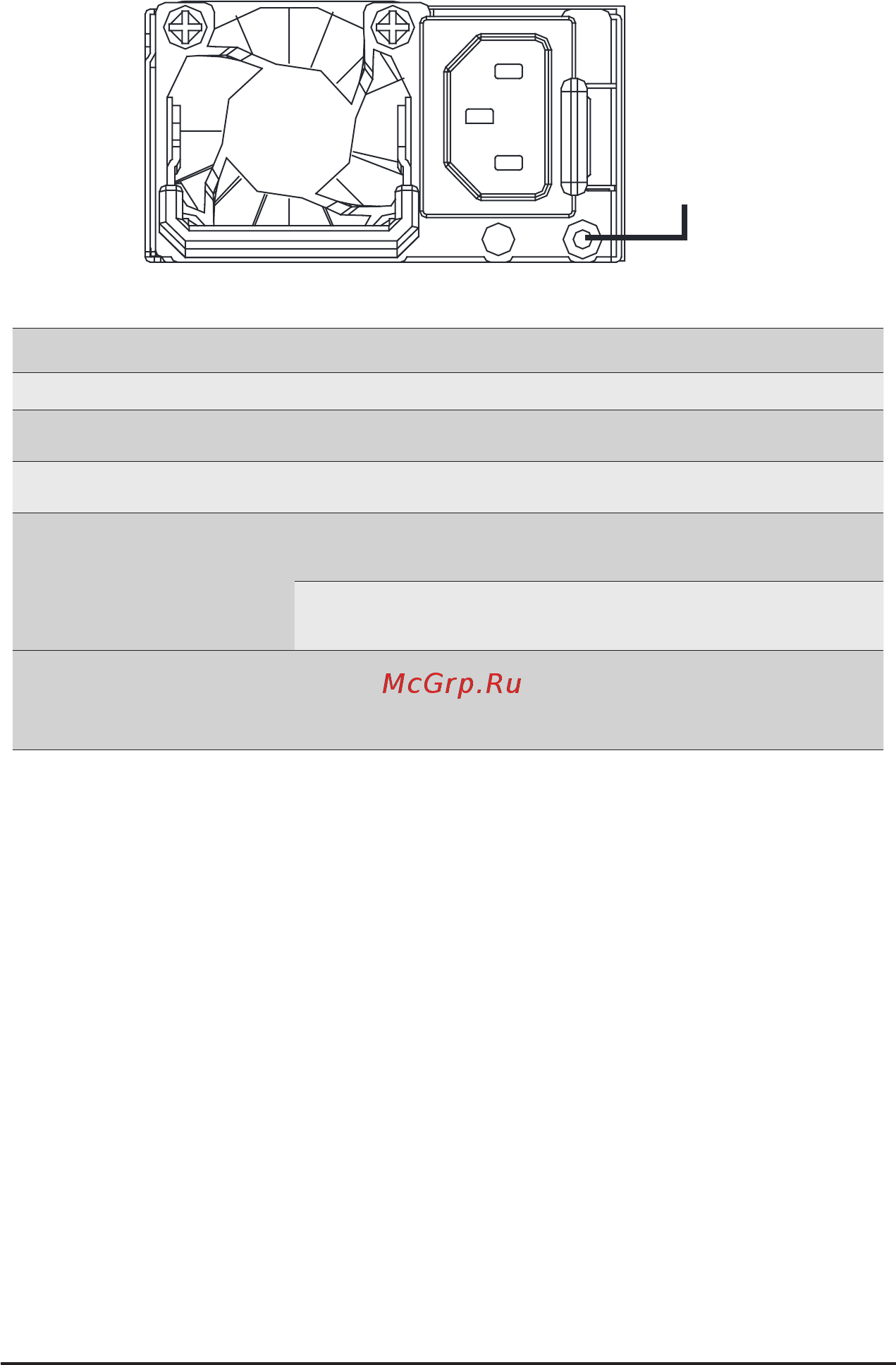

2-5 Power Supply Unit (PSU) LED

PSU LED

State Description

OFF Indicates no AC power to all power supplies

0.5Hz Blink GREEN Indicates AC present/ only standby on/ Cold redundant mode

2Hz Blink GREEN Indicates power supply rmware in updating mode

Amber

Indicates AC cord unplugged or AC power lost; with a

second power supply in parallel still with AC input power

Indicates power supply critical event causing shut down:

failure, OCP, OVP, Fan Fail, UVP

0.5Hz Blink Amber

Indicates power supply warning events where

the power supply continues to operate:

high temp, high power, high current, slow fan
