- 86 - BIOS Setup

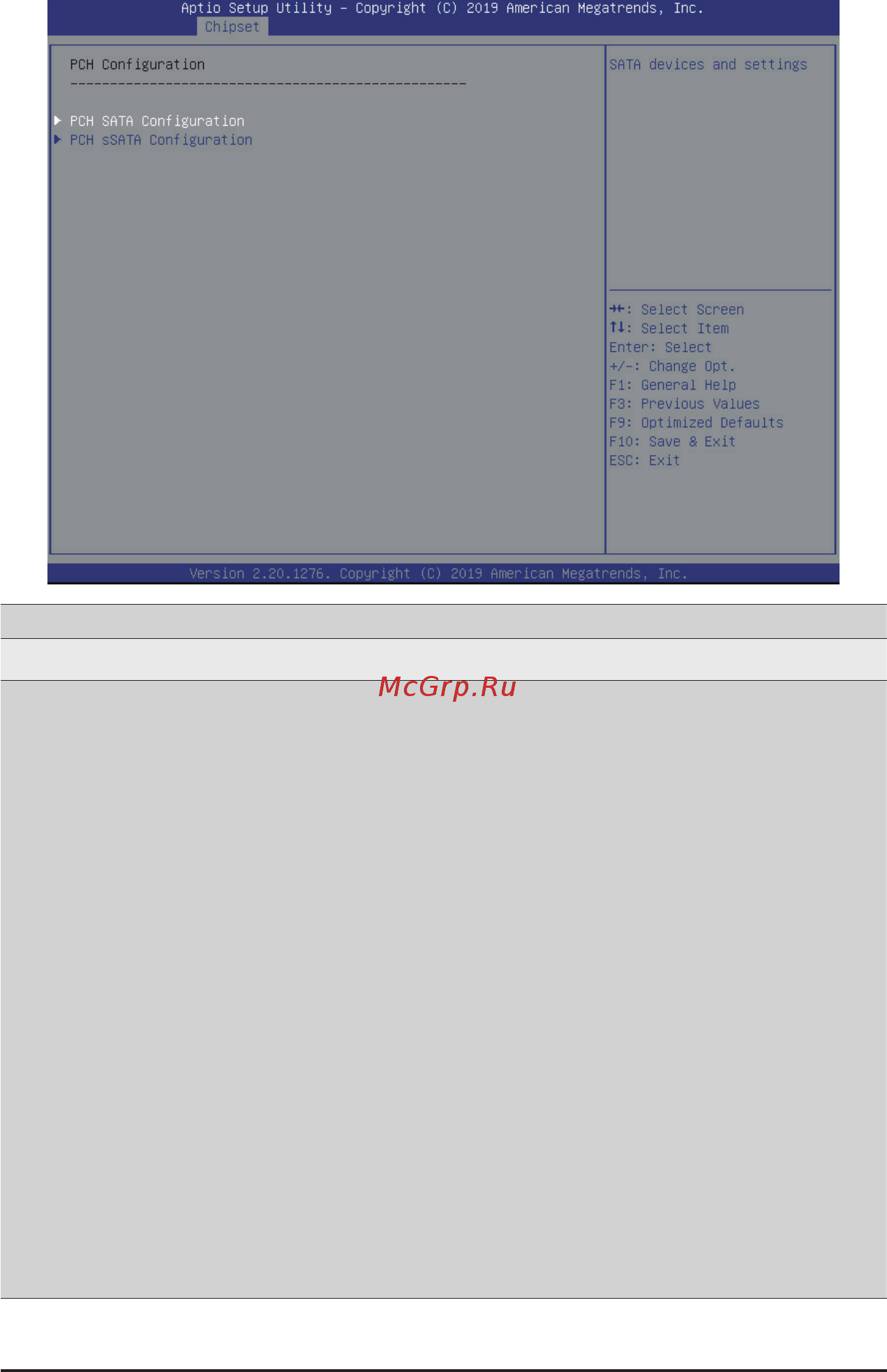

5-3-7 PCH Conguration
Parameter
Description
PCH Conguration
PCH SATA Conguration
Press [Enter] to congure advanced items.
SATA Controller
– Enable/Disable SATA controller.
– Options available: Enable/Disable. Default setting is Enable.
Congure SATA as
– Congures on chip SATA type.
– AHCI Mode: When set to AHCI, the SATA controller enables its AHCI
functionality. Then the RAID function is disabled and cannot be
access the RAID setup utility at boot time.
– RAID Mode: When set to RAID, the SATA controller enables both its
RAID and AHCI functions. You will be allowed to access the RAID
setup utility at boot time.
– Options available: AHCI/RAID. Default setting is AHCI.
Alternate Device ID on RAID
(Note 1)
– Enable/Disable Alternate Device ID on RAID mode.
– Options available: Enable/Disable. Default setting is Disabled
– Please note that this option appears when HDD is in RAID Mode.
SATA Port 0/1/2/3/4/5/6/7
– The category identies SATA hard drives that are installed in the
computer. System will automatically detect HDD type.
