BIOS Setup - 62 -

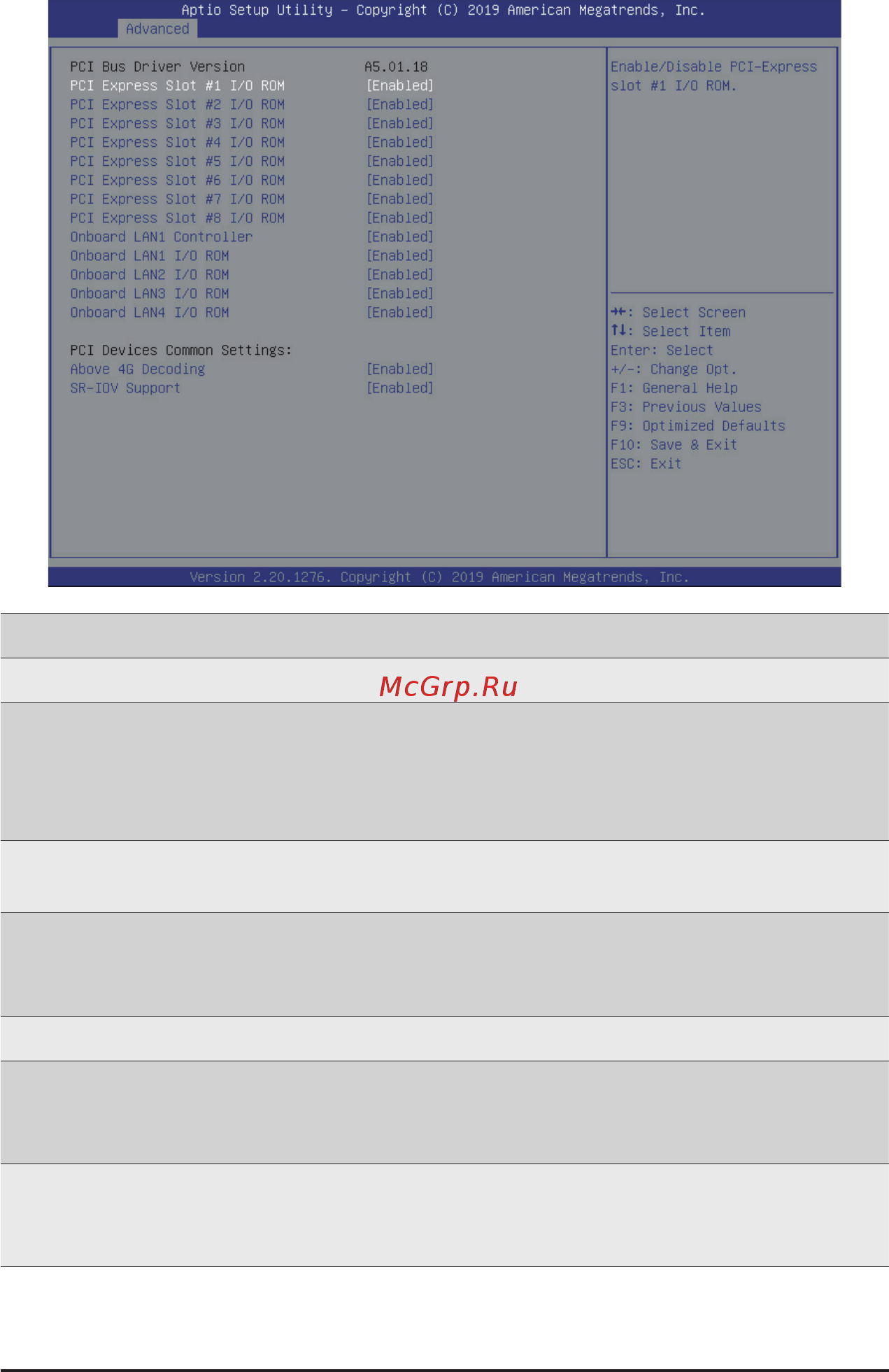

5-2-5 PCI Subsystem Settings
(Note1) This section is dependent on the available PCIe Slot.
(Note2) This section is dependent on the available LAN controller.
Parameter
Description
PCI Bus Driver Version
Displays the PCI Bus Driver version information.
PCI Express Slot # I/O ROM
(Note1)
When enabled, this setting will initialize the device expansion
ROM for the related PCI-E slot.
Options available: Enabled/Disabled. Default setting is Enabled.
Onboard LAN1 Controller
(Note2)
Enable/Disable the onboard LAN1 controller.
Options available: Enabled/Disabled. Default setting is Enabled.
Onboard LAN1 / LAN2 / LAN3 / LAN4
I/O ROM
(Note2)
Enable/Disable the onboard LAN1/ LAN2/ LAN3/ LAN4 devices,
and initializes device expansion ROM.
Options available: Enabled/Disabled. Default setting is Enabled.
PCI Devices Common Settings
Above 4G Decoding
Enable/Disable memory mapped I/O to 4GB or greater address
space (Above 4G Decoding).
Options available: Enabled/Disabled. Default setting is Enabled.
SR-IOV Support
If the system has SR-IOV capable PCIe devices, this item
Enable/Disable Single Root IO Virtualization Support.
Options available: Enabled/Disabled. Default setting is Enabled.
