3-5-2 Installing a Memory

Before installing a memory module, make sure to turn off the computer and unplug the power

cord from the power outlet to prevent damage to the memory module.

Be sure to install DDR4 DIMMs on this motherboard.

Follow these instructions to install the Memory:

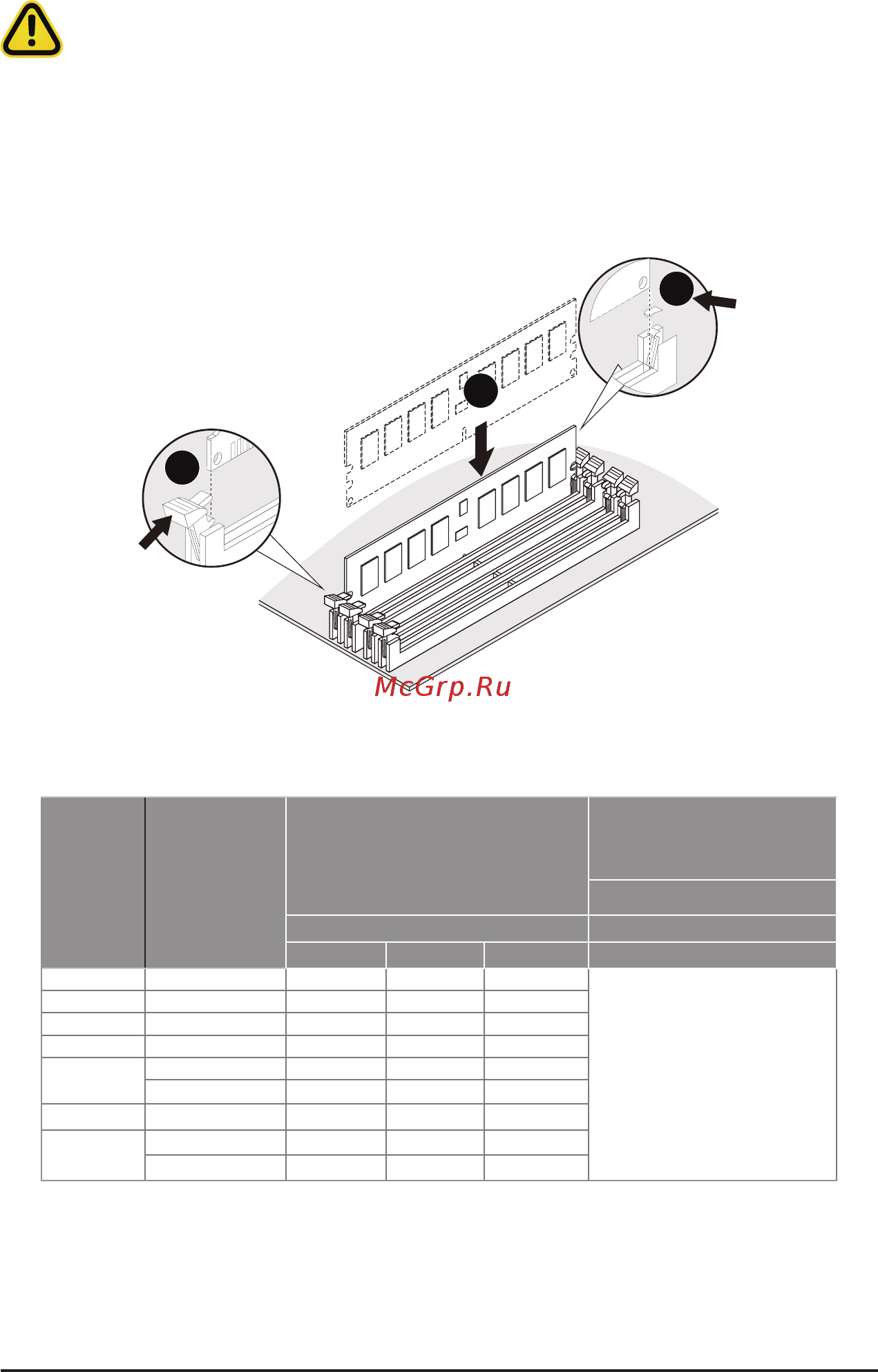

1. Insert the DIMM memory module vertically into the DIMM slot, and push it down.

2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.

3. Reverse the installation steps when you want to remove the DIMM module.

3-5-3 DIMM Population Table

Type

Ranks Per DIMM

and Data Width

DIMM Capacity (GB)

Speed (MT/s); Voltage (V);

Slots per Channel(SPC) and

DIMM per Channel (DPC)

1 Slot Per Channel

DRAM Density 1DPC

4Gb* 8Gb 16Gb 1.2V

RDIMM SRx8 4GB 8GB 16GB

2933

RDIMM SRx4 8GB 16GB 32GB

RDIMM DRx8 8GB 16GB 32GB

RDIMM DRx4 16GB 32GB 64GB

RDIMM 3DS

QRx4 N/A 2H-64GB 2H-128GB

8Rx4 N/A 4H-128GB 4H-256GB

LRDIMM QRx4 32GB 64GB 128GB

LRDIMM 3DS

QRx4 N/A 2H-64GB 2H-128GB

8Rx4 N/A 4H-128GB 4H-256GB
