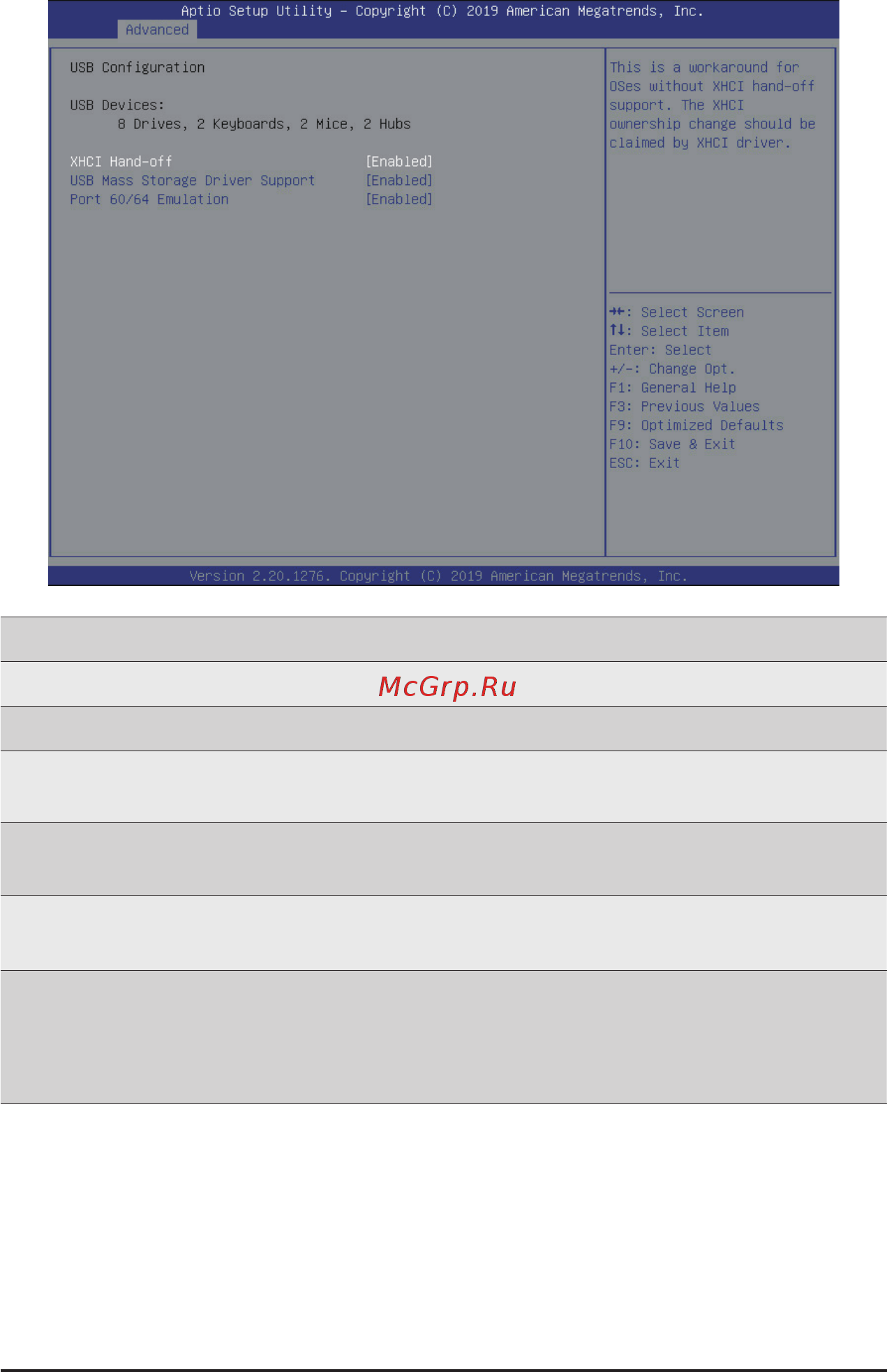

BIOS Setup - 63 -
5-2-6 USB Conguration
(Note) This item is present only if you attach USB devices.
Parameter
Description
USB Conguration
USB Devices:
Displays the USB devices connected to the system.
XHCI Hand-off
Enable/Disable the XHCI (USB 3.0) Hand-off support.
Options available: Enabled/Disabled. Default setting is Enabled.
XHCI Hand-off
Enable/Disable the XHCI (USB 3.0) Hand-off support.
Options available: Enabled/Disabled. Default setting is Enabled.
USB Mass Storage Driver
Support
(Note)
Enable/Disable the USB Mass Storage Driver Support.
Options available: Enabled/Disabled. Default setting is Enabled.
Port 60/64 Emulation
Enables the I/O port 60h/64h emulation support. This should be
enabled for the complete USB Keyboard Legacy support for non-
USB aware OS.
Options available: Enabled/Disabled. Default setting is Enabled.
