Gigabyte G241-G40 (rev. 100) [84/117] 3 6 advanced power management configuration

- 84 - BIOS Setup

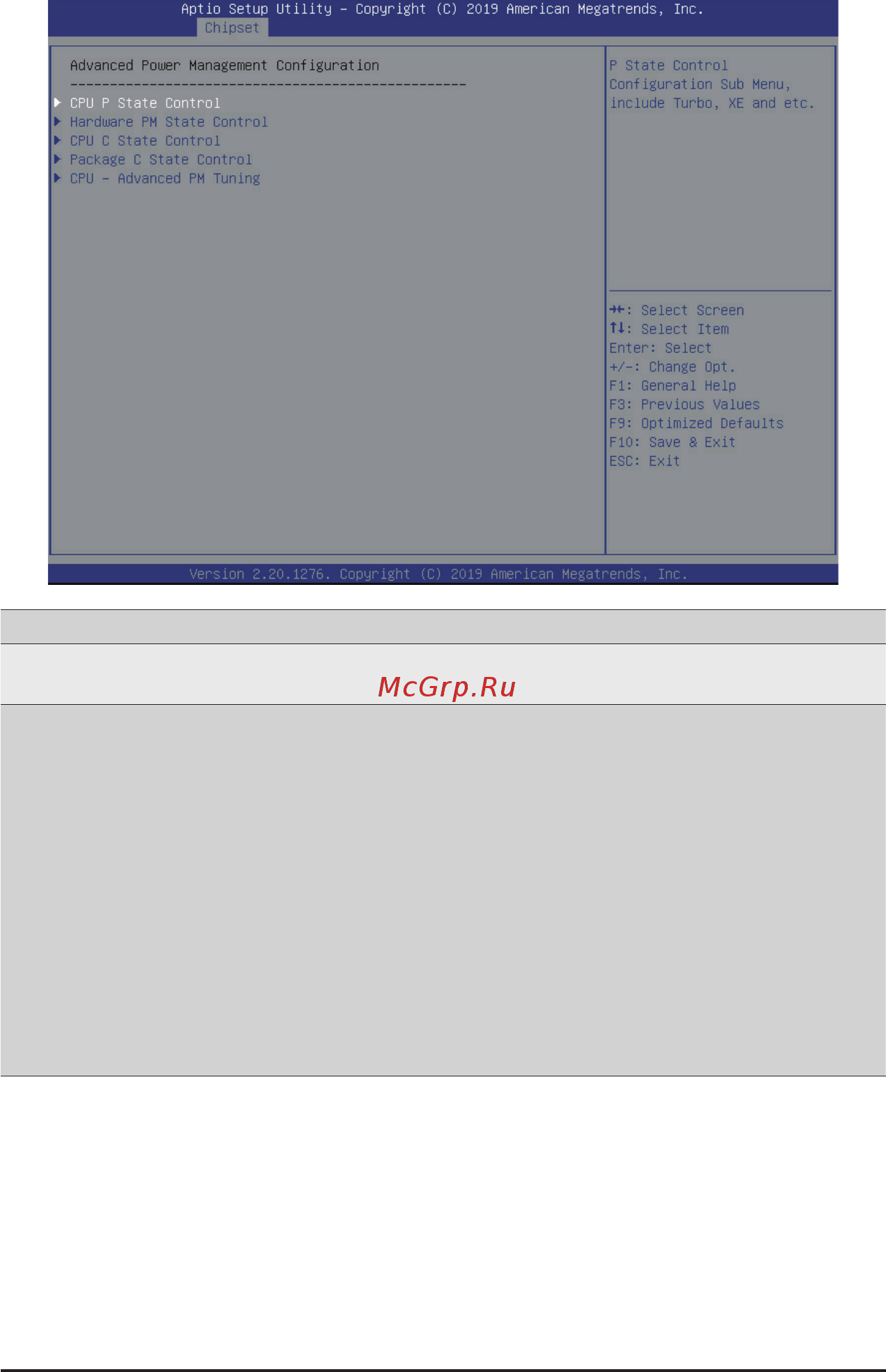

5-3-6 Advanced Power Management Conguration

Parameter

Description

Advanced Power Management

Conguration

CPU P State Control

Press [Enter] to congure advanced items.



SpeedStep (Pstates)

– Conventional Intel SpeedStep Technology switches both voltage

and frequency in tandem between high and low levels in response

to processor load.

– Options available: Enable/Disable. Default setting is Enable.



Turbo Mode

– When this item is enabled, the processor will automatically ramp

up the clock speed of 1-2 of its processing cores to improve its

performance. When this item is disabled, the processor will not

overclock any of its core.

– Options available: Enable/Disable. Default setting is Enable.
