- 45 - Motherboard Components
Chapter 4 Motherboard Components

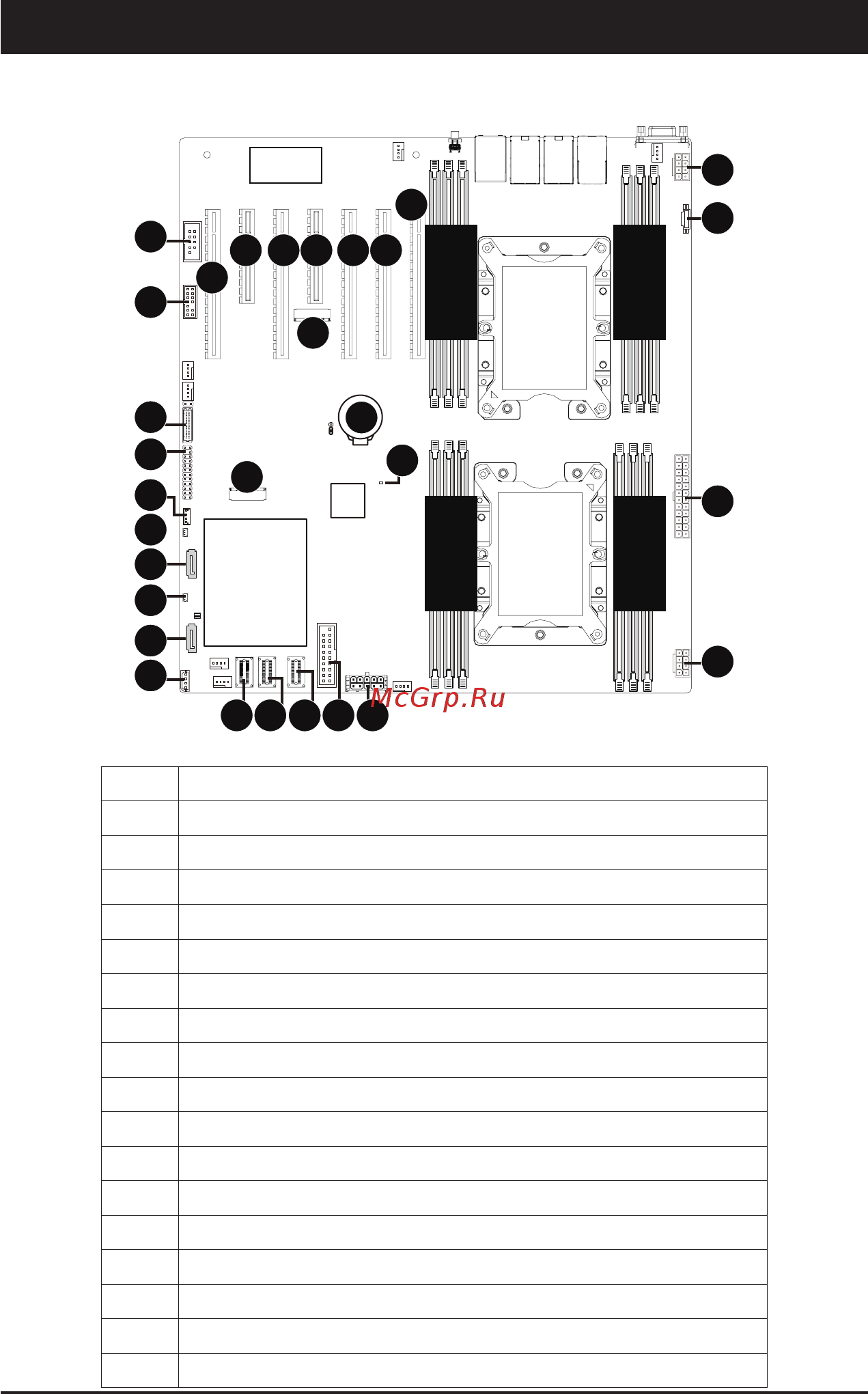

4-1 Motherboard Components
DIMM_P0_A0
DIMM_P0_B0
DIMM_P0_C0
DIMM_P1_J0
DIMM_P1_K0
DIMM_P1_L0
DIMM_P1_I0
DIMM_P1_H0
DIMM_P1_G0
DIMM_P0_F0
DIMM_P0_E0
DIMM_P0_D0
CPU0
CPU1
1
2
3
4
5
6789
10
11
12
13
14
15
17
18
19
20
242322
21
25 26
28
29
30
27
16
Item Description
1 2 x 4 Pin CPU1 Power Connector
2 PMBus Connector
3 2 x 13 Pin Power Connector
4 2 x 4 Pin CPU0 Power Connector
5 2 x 5 Pin GPU Power Connector
6 Front Panel USB 3.0 Connector
7 SlimLine SAS Connector (SATA1/SATA 6Gb/s)
8 SlimLine SAS Connector (SATA0/SATA 6Gb/s)
9 SlimLine SAS Connector (SSATA1/SATA 6Gb/s)
10 IPMB Connector
11 SATA 6Gb/s Connector (SSATA5/SATA DOM Supported)
12 SATA DOM Support Power Connector (for sSATA Connector 5)
13 SATA 6Gb/s Connector (SSATA4/SATA DOM Supported)
14 SATA DOM Support Power Connector (for sSATA Connector 4)
15 VROC Upgrade Module Connector
16 M.2 Connector (PCIe3 x4, Supports NGFF-22110)
17 Front Panel Connector
