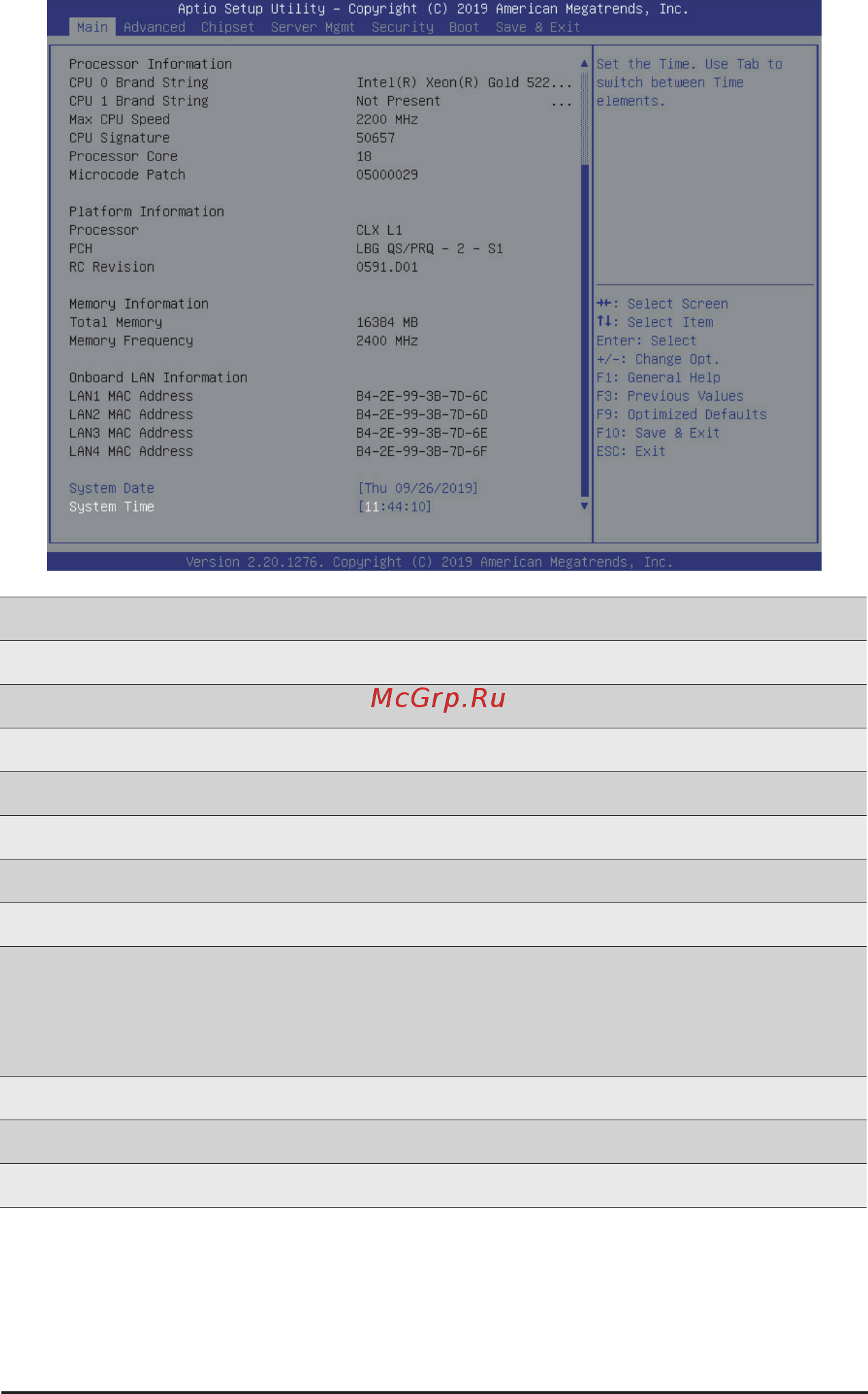

BIOS Setup - 52 -
Parameter
Description
BIOS Information
Project Name
Displays the project name information.
Project Version
Displays version number of the BIOS setup utility.
Build Date and Time
Displays the date and time when the BIOS setup utility was created.
BMC Information
(Note1)
BMC Firmware Version
(Note1)
Displays BMC rmware version information.
Processor Information
CPU0 Brand String/ CPU1 Brand
String
/
Max CPU Speed / CPU
Signature / Processor Core /
Microcode Patch
Displays the technical specications for the installed processor(s).
Memory Information
Total Memory
(Note2)
Displays the total memory size of the installed memory.
Memory Frequency
(Note2)
Displays the frequency information of the installed memory.
(Note1) Functions available on selected models.
(Note2) This section will display capacity and frequency information of the memory that the customer has
installed.
