Fatal1ty X299 Gaming K6 Series

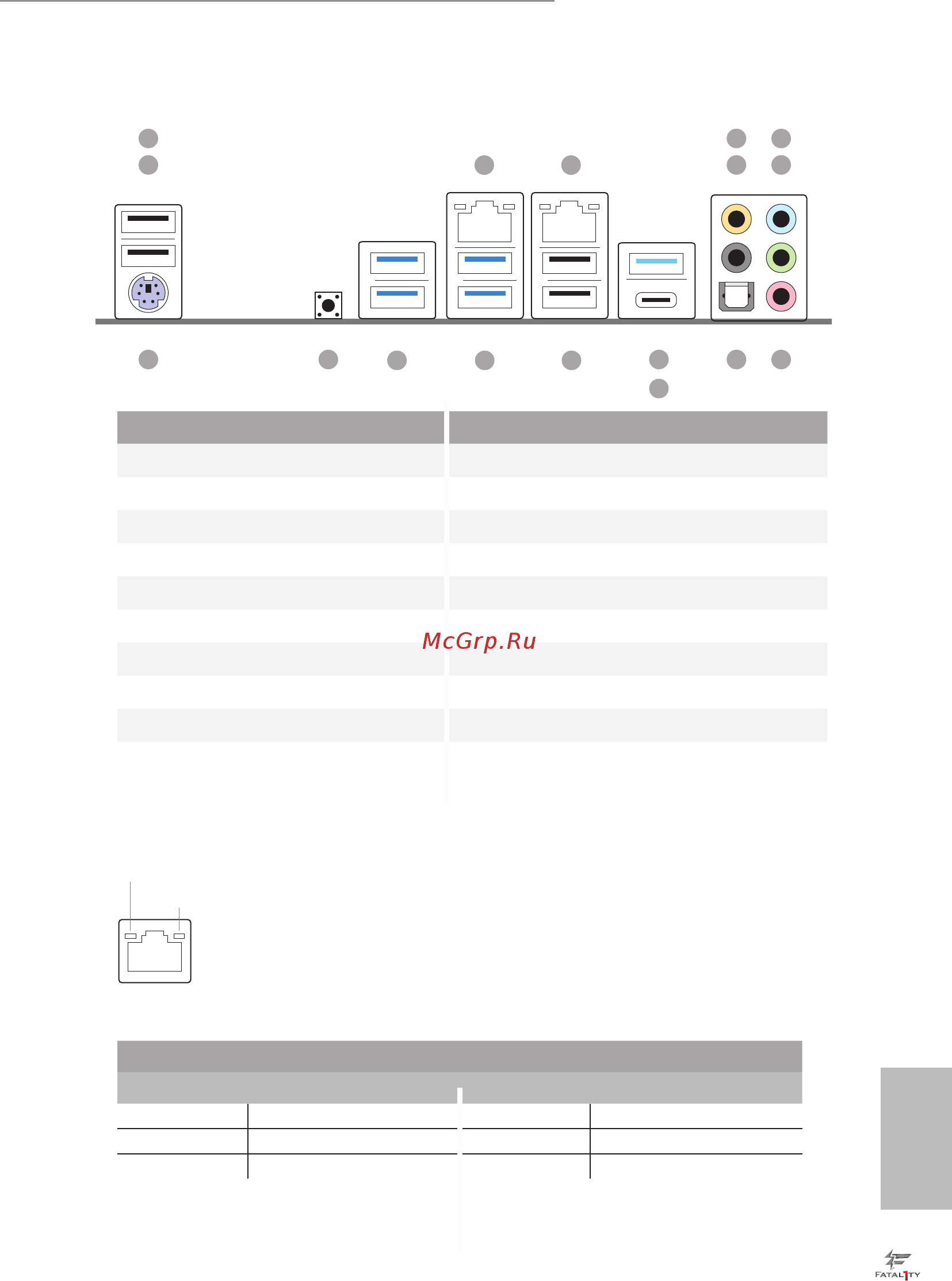

I/O Panel

No. Description No. Description

1 USB 2.0 Port (USB_3) 10 Optical SPDIF Out Port

2 Fatal1ty Mouse Port (USB_4) 11 USB 3.1 Type-A Port (USB31_TA_1)

3 LAN RJ-45 Port (Intel® I211AT)* 12 USB 3.1 Type-C Port (USB31_TC_1)

4 LAN RJ-45 Port (Intel® I219V)* 13 USB 2.0 Ports (USB_1_2)

5 Central / Bass (Orange) 14 USB 3.0 Ports (USB3_1_2)

6 Rear Speaker (Black) 15 USB 3.0 Ports (USB3_3_4)

7 Line In (Light Blue) 16 Clear CMOS Switch

8 Front Speaker (Lime)** 17 PS/2 Mouse/Keyboard Port (PS2_KB1)

9 Microphone (Pink)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link Orange 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

91011
