ASRock H110TM-ITX [5/168] I o panel

English

H110TM-ITX

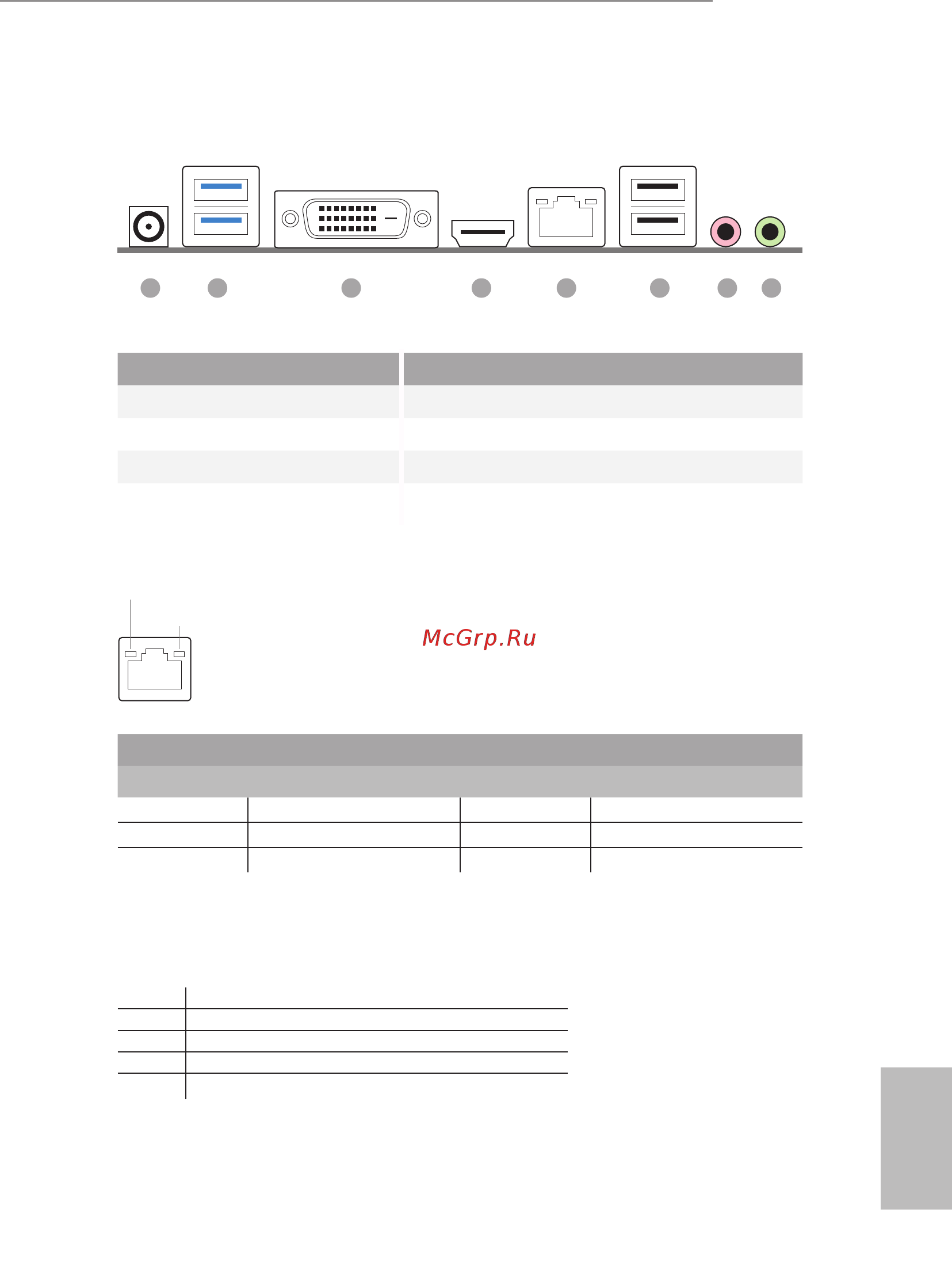

I/O Panel

No. Description No. Description

1 DC Jack** 5 LAN RJ-45 Port*

2 USB 3.0 Ports (USB3_01) 6 USB 2.0 Ports (USB01)

3 DVI-D Port (DVI1) 7 Microphone (Pink)

4 HDMI Port (HDMI1) 8 Front Speaker & Optical SPDIF Out (Lime)

*ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Green 100Mbps connection

On Link Green 1Gbps connection

** Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of 5.1

mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) DC and the shell is (centre positive).

DELTA DELTA-ADP-150TB-150W/19V

HP HP-TBC-BA52-150W/19V

FSP FSP-FSP150-ABAN1-150W/19V

DELL FA130PE1-00-130W/19.5V

DELL LA90PE0-01-90W/19.5V

Due to the power limitation and PCIe bandwidth (x4), the VGA card is not supported.

is motherboard is available with support for either 2-pin ATX 19V power or DC-in power supplies. Please do

not use two kinds of power supplies at the same time! Doing so may damage the motherboard components and

devices. When you use the DC-in power adapter, please use the onboard SATA power connector to get the power

for HDDs.

ACT/LINK LED

SPEED LED

LAN Port

8762 5431
