Step 2. Install one Radeon graphics card to PCIE2 slot. For the proper installation

procedures, please refer to section “Expansion Slots”.

Step 3. Install the other Radeon graphics card to AGI Express slot (PCI

Express x4). For the proper installation procedures, please refer to section

“Expansion Slots”.

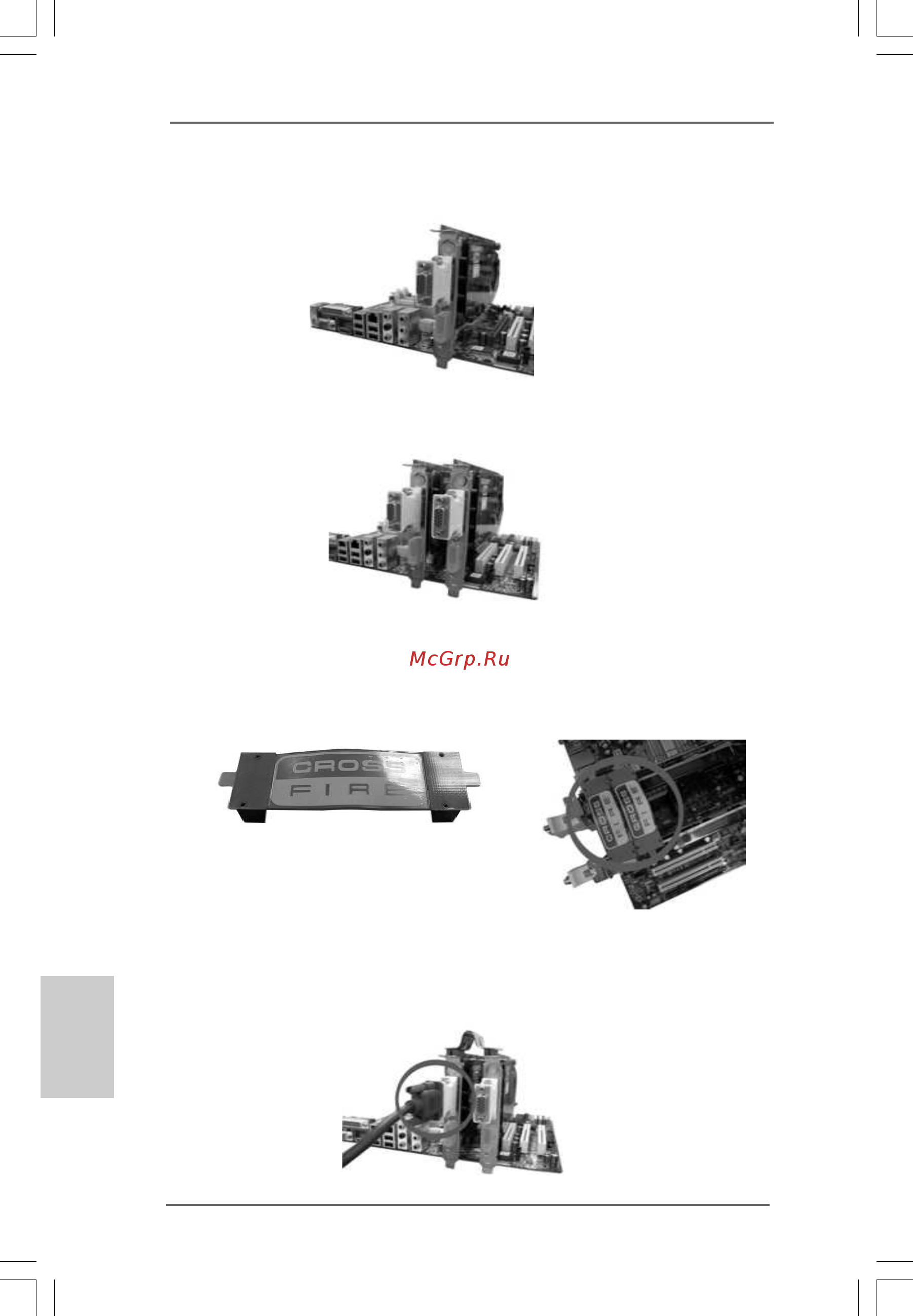

Step 4. Connect two Radeon graphics cards by installing two CrossFire

Bridge

on CrossFire

Bridge Interconnects on the top of Radeon graphics cards.

(CrossFire

Bridge is provided with the graphics card you purchase, not

bundled with this motherboard. Please refer to your graphics card vendor

for details.)

Step 5. Connect the DVI monitor cable to the DVI connector on the Radeon graphics

card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert the

DVI connector to D-Sub interface, and then connect the D-Sub monitor

cable to the DVI to D-Sub adapter.)

CrossFire

Bridge
