2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

2.8 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

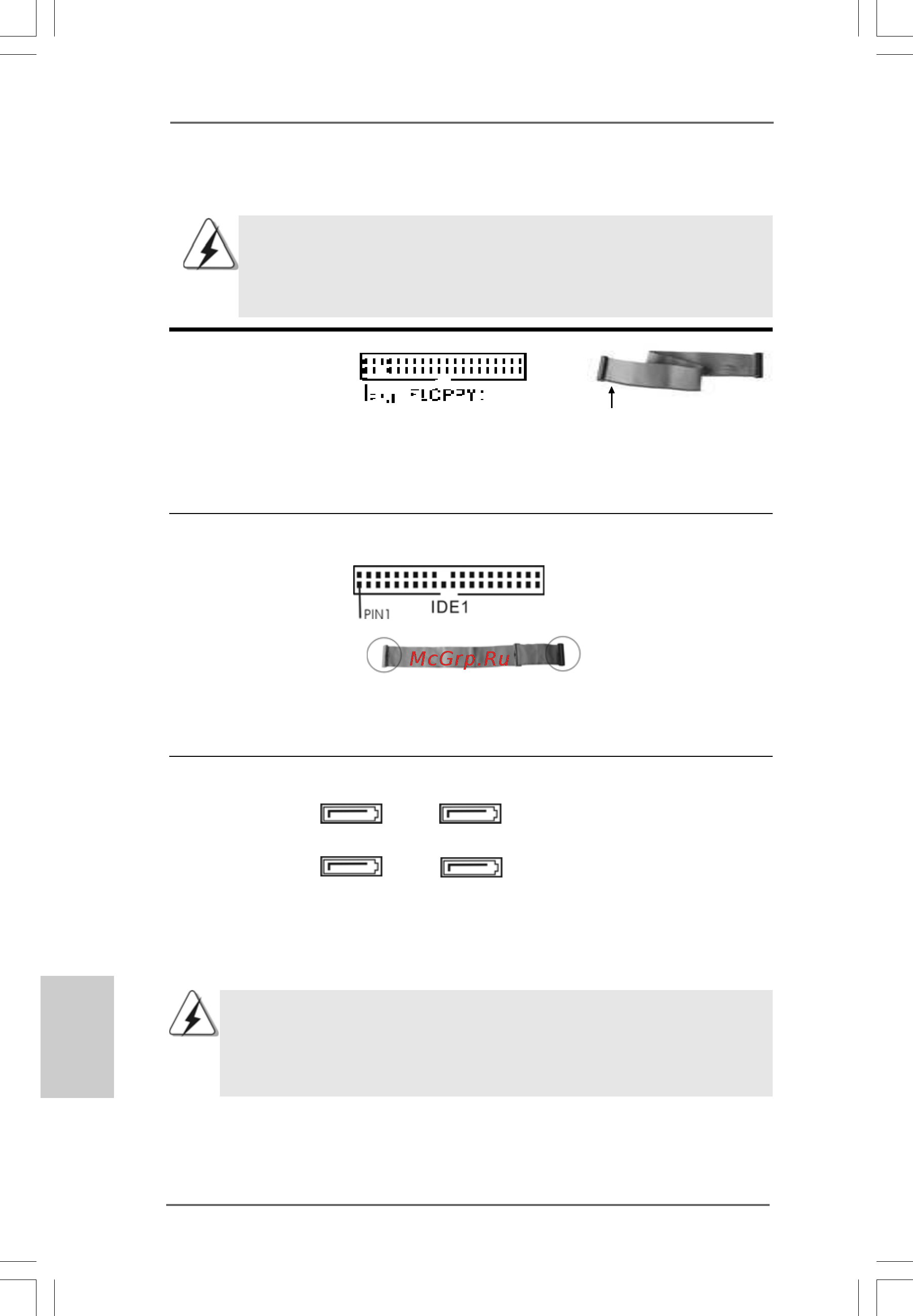

FDD connector

(33-pin FLOPPY1)

(see p.2 No. 22)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.2 No. 8)

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial ATAII Connectors These four Serial ATAII (SATAII)

(SATAII_BLUE (Port0): connectors support SATA data

see p.2, No. 12) cables for internal storage

(SATAII_BLACK (Port1): devices. The current SATAII

see p.2, No. 16) interface allows up to 3.0 Gb/s

(SATAII_RED (Port2): data transfer rate.

see p.2, No. 14)

(SATAII_ORANGE (Port3):

see p.2, No. 13)

SATAII_ORANGE (Port3) connector can be used for internal storage

device or be connected to eSATAII connector to support eSATAII device.

Please read “eSATAII Interface Introduction” on page 26 for details

about eSATAII and eSATAII installation procedures.

connect the black end

to the IDE devices

connect the blue end

to the motherboard

SATAII_BLUE (Port0) SATAII_ORANGE (Port3)

80-conductor ATA 66/100 cable

SATAII_BLACK (Port1) SATAII_RED (Port2)

the red-striped side to Pin1
