ASRock 4Core1333-eSATA2 Motherboard

EnglishEnglish

English

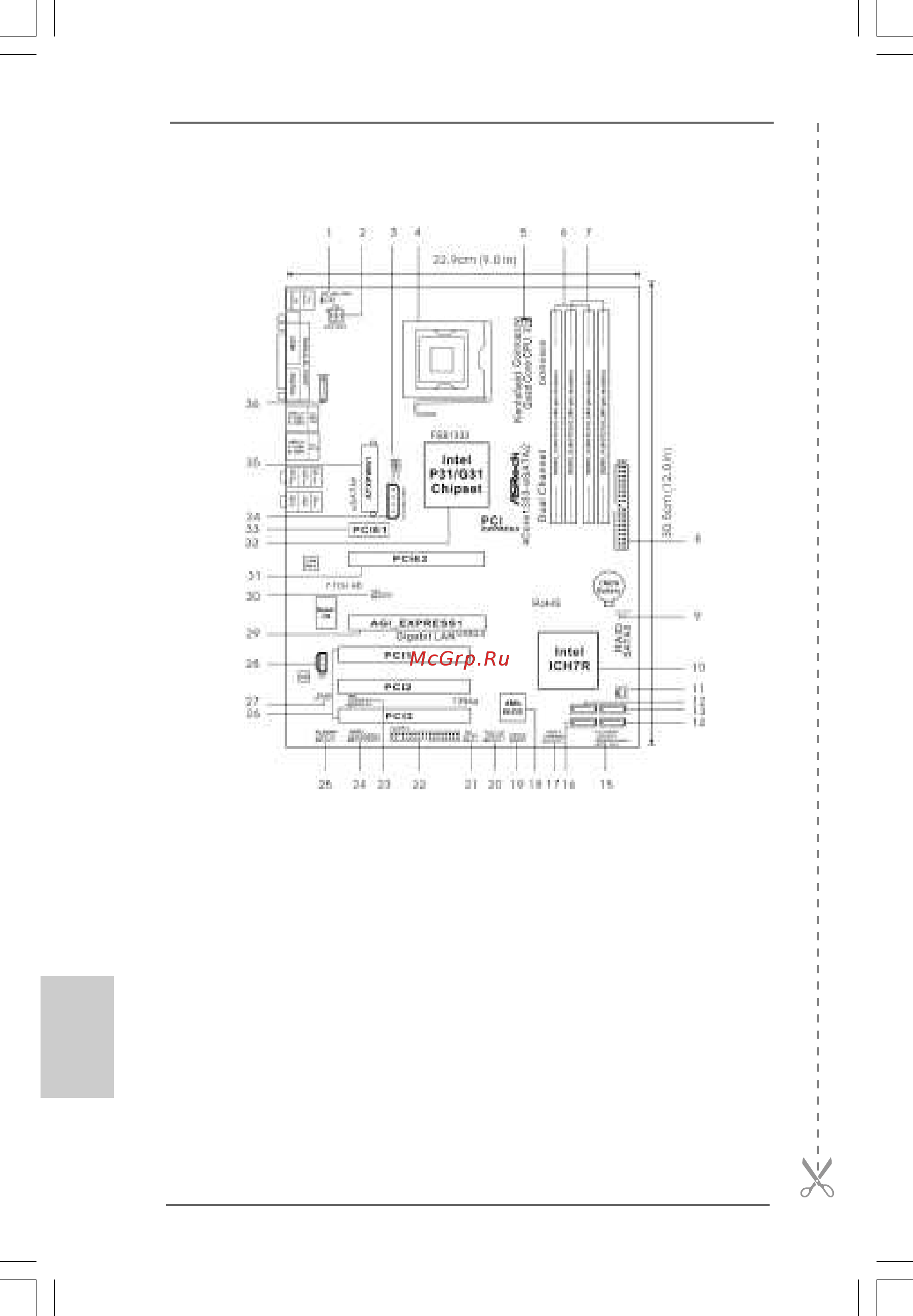

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 19 Chassis Speaker Header (SPEAKER 1)

2 ATX 12V Connector (ATX12V1) 20 Front Panel IEEE 1394 Header

3 FSB1 / FSB2 Jumpers (FRONT_1394)

4 775-Pin CPU Socket 21 DeskExpress Hot Plug Detection Header

5 CPU Fan Connector (CPU_FAN1) (IR1)

6 2 x 240-pin DDRII DIMM Slots 22 Floppy Connector (FLOPPY1)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 23 WiFi Header (WIFI)

7 2 x 240-pin DDRII DIMM Slots 24 Game Port Header (GAME1)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 25 Front Panel Audio Header (HD_AUDIO1)

8 IDE1 Connector (IDE1, Blue) 26 PCI Slots (PCI1 - 3)

9 Clear CMOS Jumper (CLRCMOS1) 27 HDMI_SPDIF Header (HDMI_SPDIF1)

10 South Bridge Controller 28 Internal Audio Connector: CD1 (Black)

11 Chassis Fan Connector (CHA_FAN1) 29 AGI Express Slot (PCI Express x4)

12 SATAII Connector (SATAII_BLUE (Port0)) 30 FSB3 Jumper

13 SATAII Connector (SATAII_ORANGE (Port3)) 31 PCI Express x16 Slot (PCIE2)

14 SATAII Connector (SATAII_RED (Port2)) 32 North Bridge Controller

15 System Panel Header (PANEL1) 33 PCI Express x1 Slot (PCIE1)

16 SATAII Connector (SATAII_BLACK (Port1)) 34 SLI / XFIRE Power Connector

17 USB 2.0 Header (USB4_5, Blue) 35 ATX Power Connector (ATXPWR1)

18 Flash Memory 36 eSATAII Connector (eSATAII)
