ASRock 4Core1333-eSATA2 Motherboard

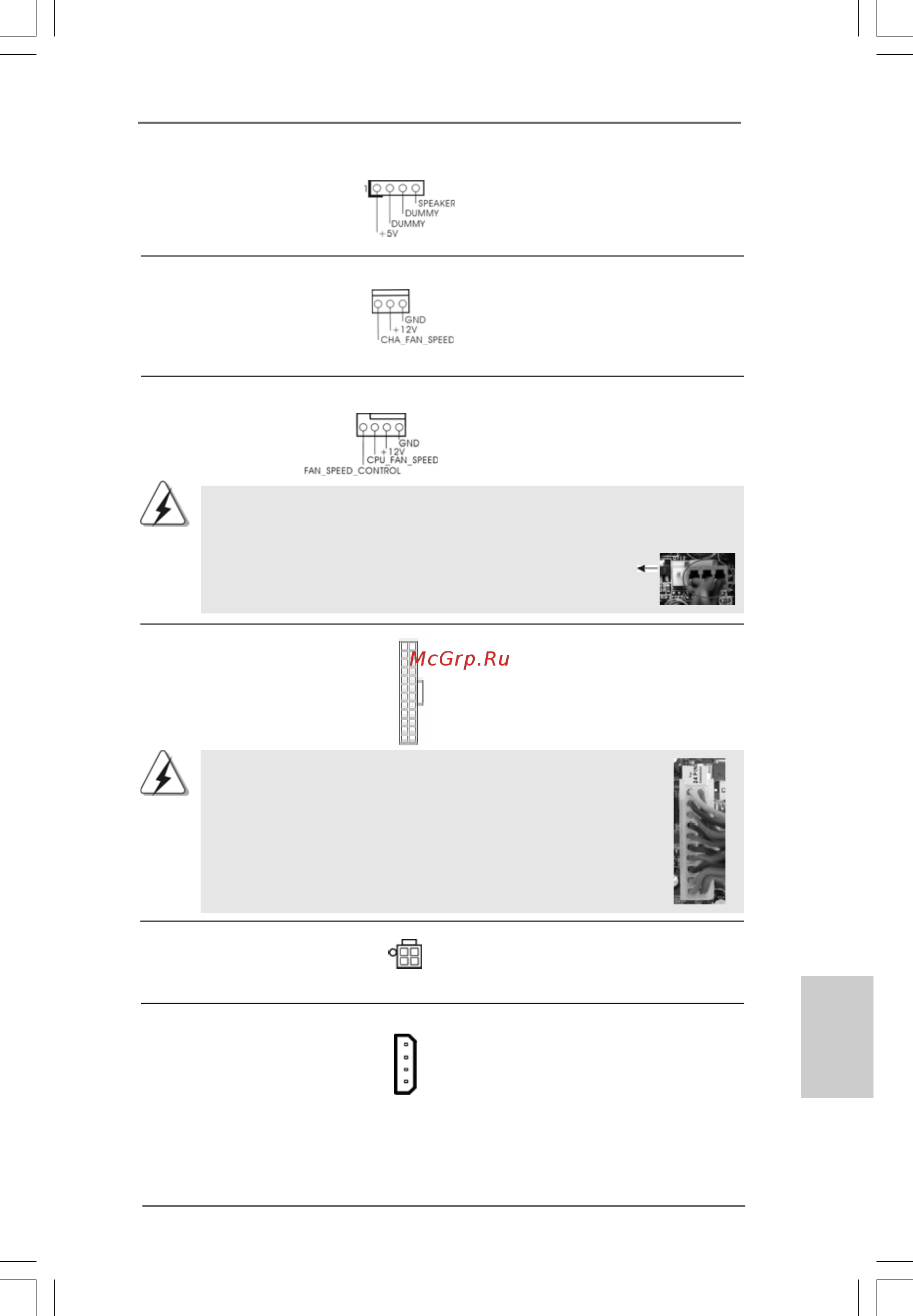

ATX 12V Connector Please connect an ATX 12V

(4-pin ATX12V1) power supply to this connector.

(see p.2 No. 2)

SLI/XFIRE Power Connector It is not necessary to use this

(4-pin SLI/XFIRE_POWER1) connector, but please connect it

(see p.2 No. 34) with a hard disk power connecor

when two graphics cards are

plugged to this motherboard at

the same time.

SLI/XFIRE_POWER1

ATX Power Connector Please connect an ATX power

(20-pin ATXPWR1) supply to this connector.

(see p.2 No. 35)

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

Pin 1-3 Connected

4 3 2 1

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this header.

(see p.2 No. 19)

Chassis Fan Connector Please connect a chassis fan

(3-pin CHA_FAN1) cable to this connector and

(see p.2 No. 11) match the black wire to the

ground pin.

CPU Fan Connector Please connect a CPU fan cable

(4-pin CPU_FAN1) to this connector and match

(see p.2 No. 5) the black wire to the ground pin.

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your power

supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation
