ASRock 4Core1333-eSATA2 Motherboard

EnglishEnglish

English

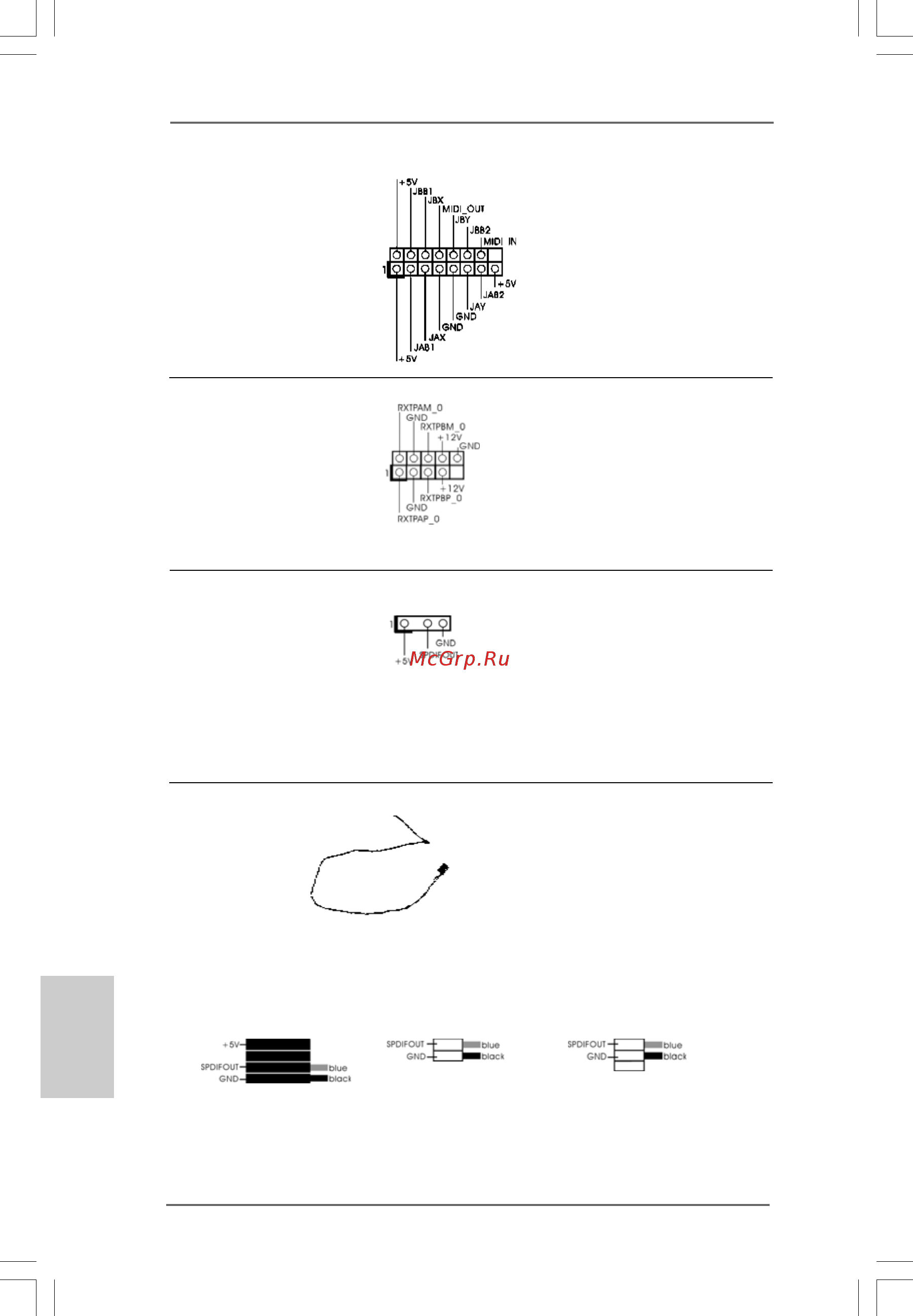

HDMI_SPDIF Header HDMI_SPDIF header, providing

(3-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA

(see p.2 No. 27) card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

HDMI_SPDIF Cable Please connect the black end (A)

(Optional) of HDMI_SPDIF cable to the

HDMI_SPDIF header on the

motherboard. Then connect the

white end (B or C) of

HDMI_SPDIF cable to the

HDMI_SPDIF connector of HDMI

VGA card.

A. black end B. white end (2-pin) C. white end (3-pin)

IEEE 1394 Header Besides one default IEEE 1394

(9-pin FRONT_1394) port on the I/O panel, there is one

(see p.2 No. 20) IEEE 1394 header

(FRONT_1394) on this

motherboard. This IEEE 1394

header cansupport one IEEE

1394 port.

Game Port Header Connect a Game cable to this

(15-pin GAME1) header if the Game port bracket

(see p.2 No. 24) is installed.
