Chapter 2: Hardware installaon | 11
Z270GTN & B250GTN

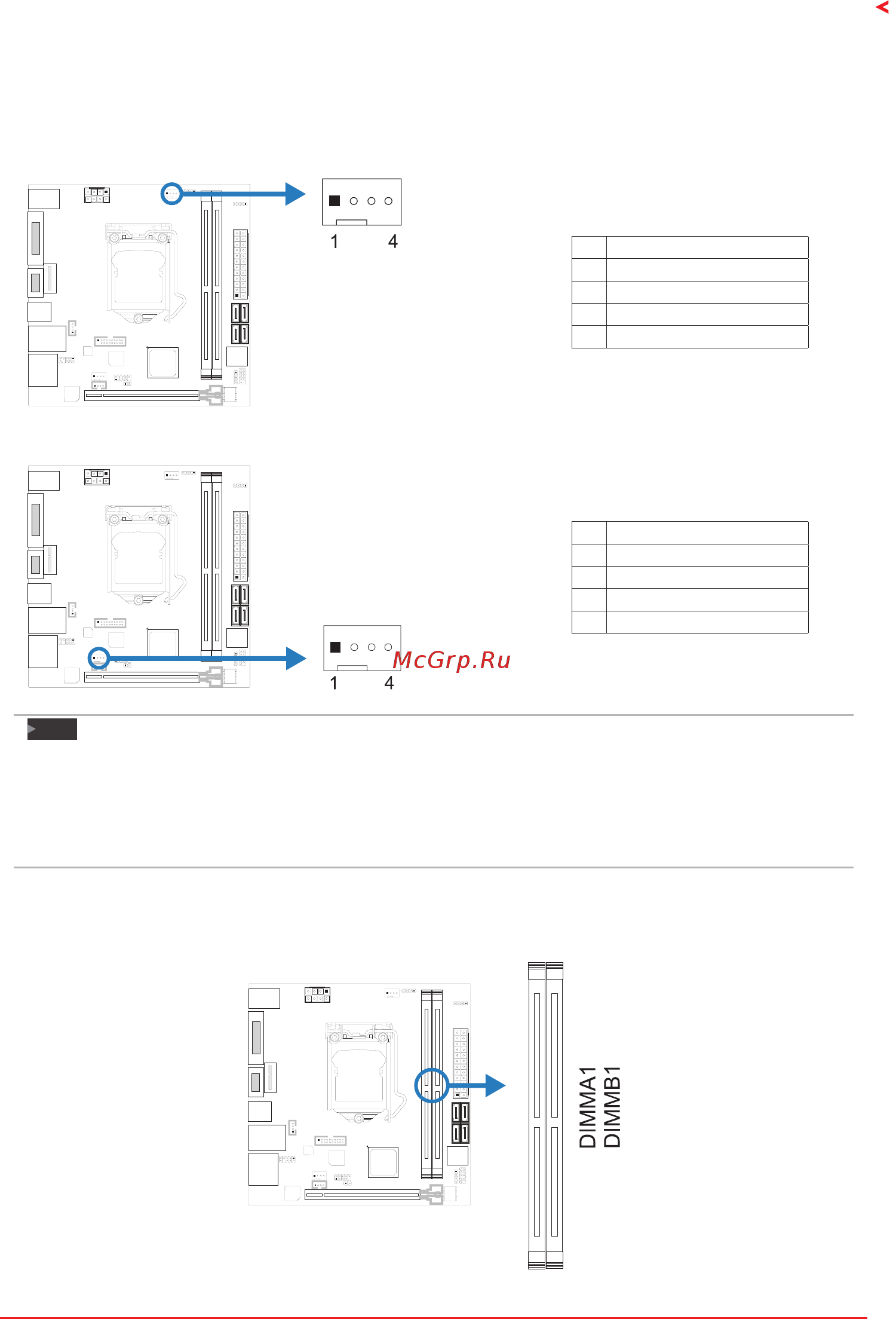

2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN1: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control (By Fan)
SYS_FAN1: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control (By Fan)
Note
»
CPU_FAN1,SYS_FAN1support4-pinheadconnectors.Whenconnecngwithwiresontoconnectors,
pleasenotethattheredwireistheposiveandshouldbeconnectedtopin#2,andtheblackwireis
Groundandshouldbeconnectedtopin#1(GND).
»
TheSYS_FAN2’ssmartfanfunconwillbeenabledwhenbothSYS_FAN1andSYS_FAN2are
connecngwithfans.
2.4 Install System Memory
DDR4 Modules
