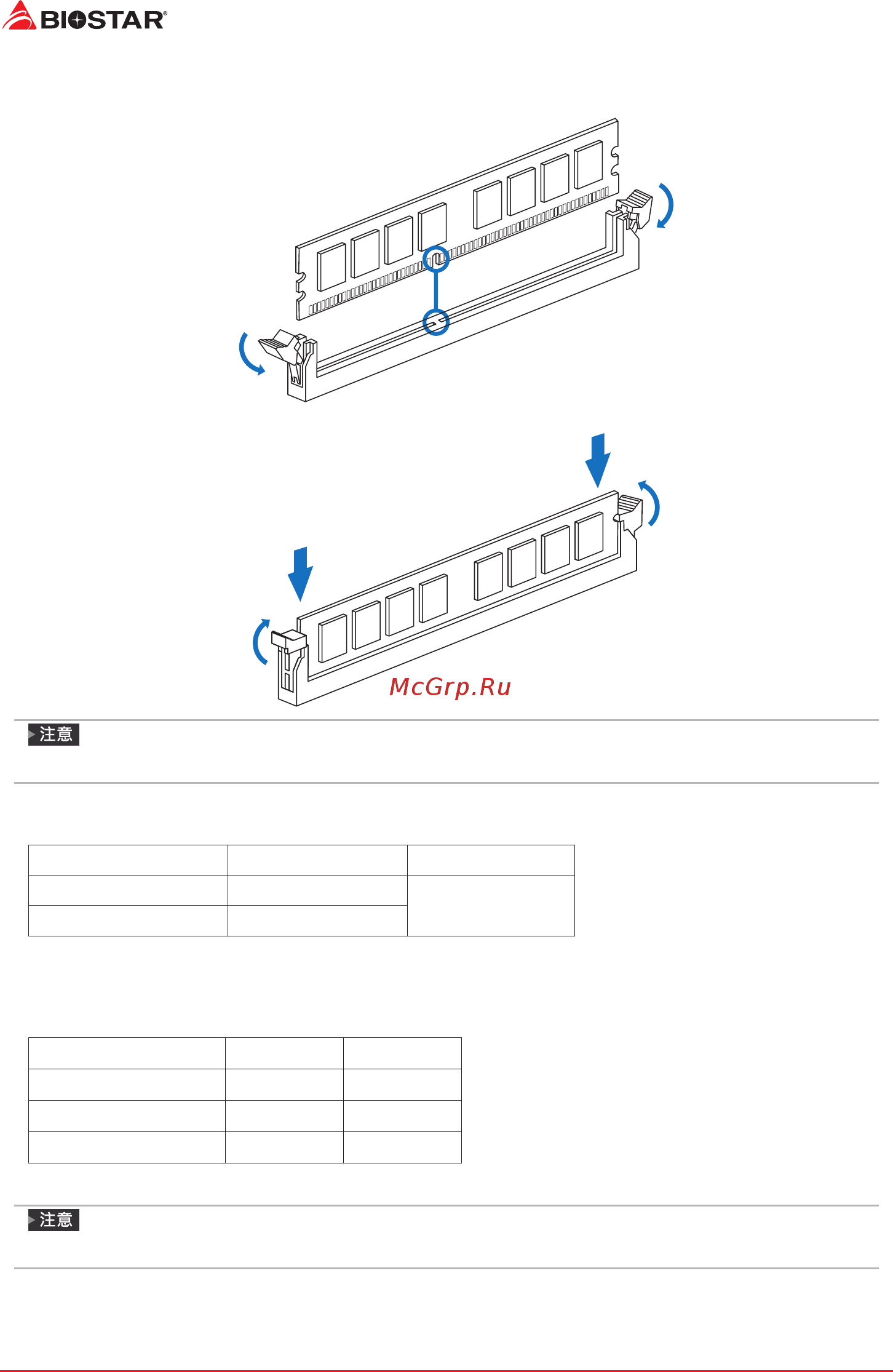

12 | 第二章: 硬件安装
步骤1: 向外推开固定夹，打开DIMM插槽。将DIMM按顺序放在插槽上， DIMM上的切
口须与插槽凹口匹配。
步骤2: 垂直插入DIMM并固定好，直到固定夹跳回原位，DIMM就位。
»
如果DIMM未顺利插入，请勿强行按压。将DIMM拔出，再重插一次。
内存容量
DIMM插槽位置 模组 总内存
DIMMA1 4GB/8GB/16GB
最大为 32GB.
DIMMB1 4GB/8GB/16GB
双通道内存安装
为激活主板双通道功能，使用内存模组必须符合以下要求： 成对安装相同密度的内存模
组。如下表所示
双通道状态 DIMMA1 DIMMB1
Disabled X O
Disabled O X
Enabled O O
(“O”表示内存已安装，“X ”表示内存未安装。)
»
当安装多个内存模块時，我们建议使用相同品牌和容量的内存於主板上。
