第一章: 主板介绍 | 5

Z270GTN & B250GTN

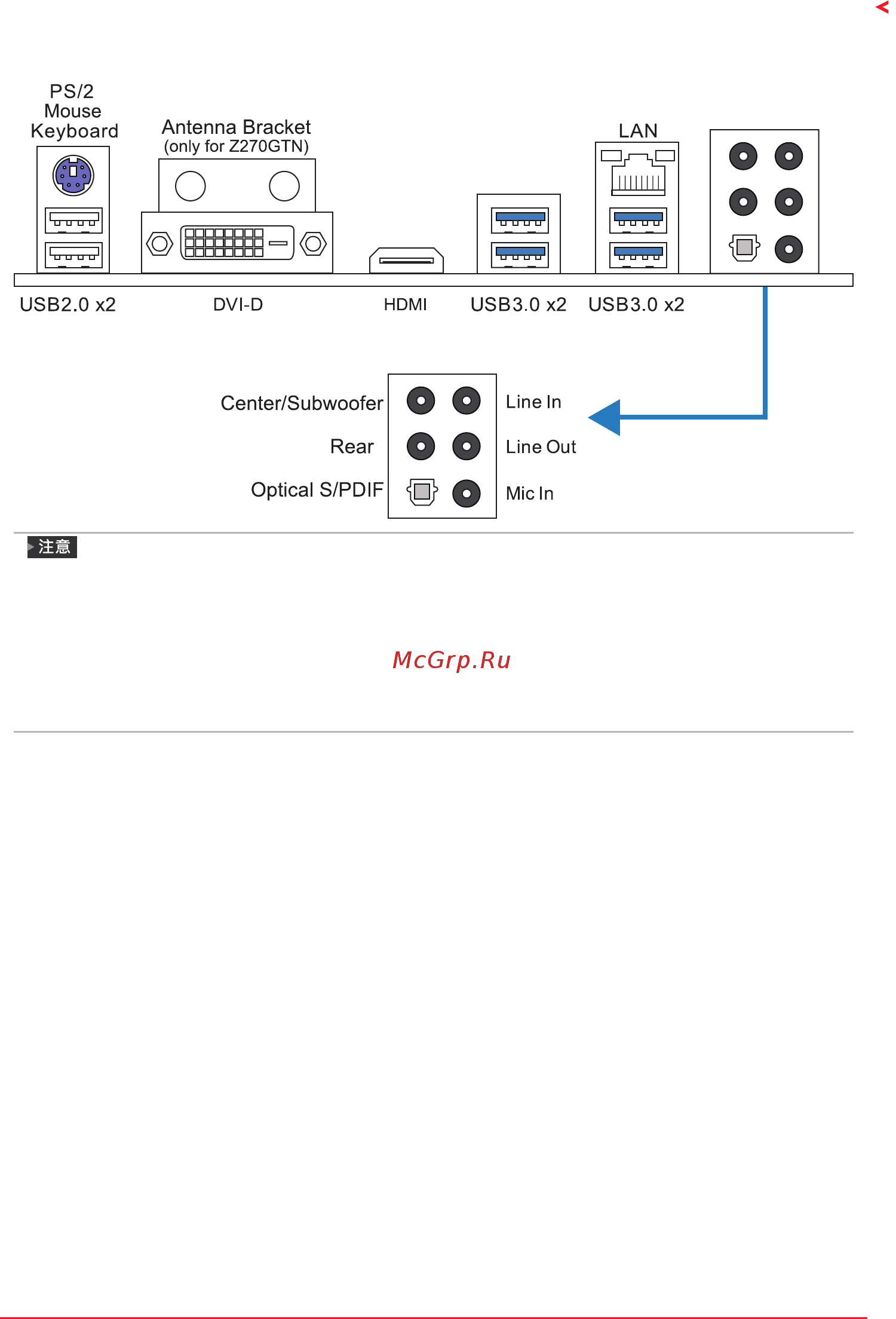

1�4 后置面板接口

仅Intel集成显卡处理器支持HDMI、DVI-D端口。

最高分辨率：

HDMI: 4096 x 2160 @30Hz，符合HDMI 1.4规范

DVI-D: 1920 x 1200 @60Hz

当使用前置HD音频插孔并插入耳机/麦克风时，后置声音将自动禁用。

主板同时支持2个板载显示端口输出。显示输出的配置可以在英特尔图形驱动程序工具中进行选

择。
