第二章: 硬件安装 | 11

Z270GTN & B250GTN

2�3 风扇接头

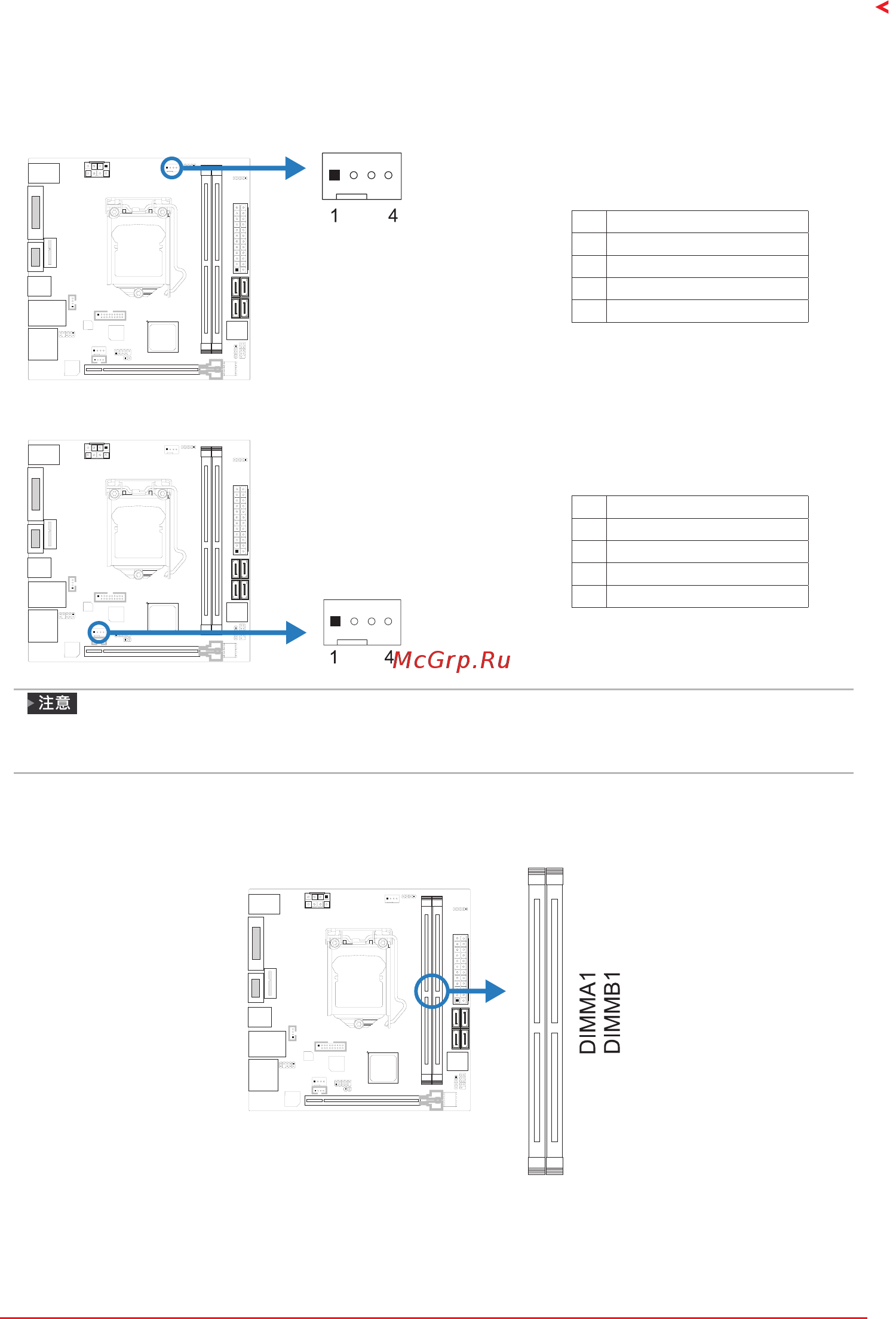

此风扇接头支持电脑内置的冷却风扇，风扇引线和插头可能因制造商而异。

CPU_FAN1: CPU 风扇接头

针定义

1 接地

2 +12V

3 FAN RPM rate sense

4 Smart Fan Control (By Fan)

SYS_FAN1: 系统风扇接头

针定义

1 接地

2 +12V

3 FAN RPM rate sense

4 Smart Fan Control (By Fan)

CPU_FAN1，SYS_FAN1支持4针脚接口；接线时请注意红线是正极需接到第二个针脚，黑线接

地需接到GND针脚。

2�4 系统内存

DDR4内存模组
