Biostar Z270GTN Версия 5.x [49/79] 背面

第一章: 主板介绍 | 7

Z270GTN & B250GTN

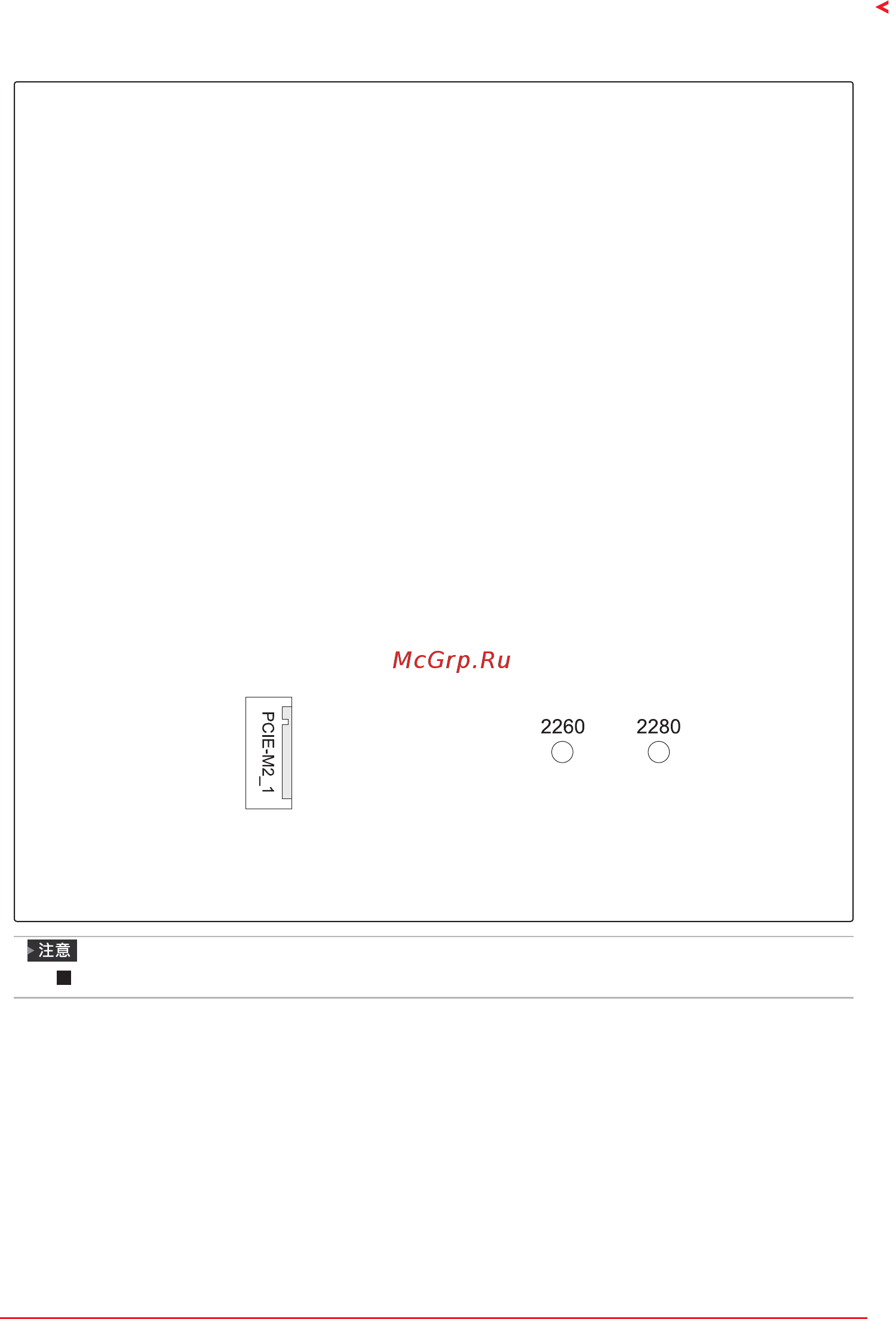

背面

标示为针脚1

Содержание

Fcc information and copyright 1
Appendix i specifications in other languages 37 2
Chapter 1 introduction 3 2
Chapter 2 hardware installation 8 2
Chapter 3 uefi bios software 19 2
Chapter 4 useful help 30 2
Fcc information and copyright 1 2
Table of contents 2
1 before you start 3
Chapter 1 introduction 3
Package checklist 3
3 specifications 4
Chapter 1 introduction 4
Chapter 1 introduction 5 5
Rear panel connectors 5
Z270gtn b250gtn 5
Chapter 1 introduction 6
Motherboard layout 6
Top view 6
Back view 7
Chapter 2 hardware installation 8
Install central processing unit cpu 8
Step 1 locate the cpu socket on the motherboard 8
Step 2 pull the socket locking lever out from the socket and then raise the lever up 8
Step 3 remove the pin cap 8
Install a heatsink 10
Chapter 2 hardware installation 11 11
Connect cooling fans 11
Cpu_fan1 cpu fan header 11
Cpu_fan1 sys_fan1support4 pinheadconnectors whenconnectingwithwiresontoconnectors pleasenotethattheredwireisthepositiveandshouldbeconnectedtopin 2 andtheblackwireis groundandshouldbeconnectedtopin 1 gnd thesys_fan2 ssmartfanfunctionwillbeenabledwhenbothsys_fan1andsys_fan2are connectingwithfans 11
Ddr4 modules 11
Install system memory 11
Sys_fan1 system fan header 11
These fan headers support cooling fans built in the computer the fan cable and connector may be different according to the fan manufacturer 11
Z270gtn b250gtn 11
Chapter 2 hardware installation 12
Dual channel memory installation 12
Memory capacity 12
O means memory installed x means memory not installed 12
Please refer to the following requirements to activate dual channel function install memory module of the same density in pairs shown in the table 12
Step 1 unlock a dimm slot by pressing the retaining clips outward align a dimm on the slot such that the notch on the dimm matches the break on the slot 12
Step 2 insert the dimm vertically and firmly into the slot until the retaining clips snap back in place and the dimm is properly seated 12
Expansion slots 13
Install an expansion card 13
Pcie m2_1 m key m slot 13
Pcie m2_2 m key e slot only for z270gtn 13
Pex16_1 pci express gen3 x16 slot x16 speed 13
Headers connectors 14
Jcmos1 clear cmos jumper 14
Jumper switch setting 14
Pcie u1 u connector 14
Atxpwr1 atx power source connector 15
Atxpwr2 atx power source connector 15
Beforeyoupoweronthesystem pleasemakesurethatbothatxpwr1andatxpwr2connectors havebeenplugged in insufficientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunctioning properly useofapsuwithahigherpoweroutputisrecommendedwhenconfiguringasystemwith morepower consumingdevices 15
Chapter 2 hardware installation 15 15
For better compatibility we recommend to use a standard atx 24 pin power supply for this connector make sure to find the correct orientation before plugging the connector 15
Panel1 front panel header 15
The connector provides 12v to the cpu power circuit if the cpu power plug is 4 pin please plug it into pin 1 2 5 6 of atxpwr2 15
This connector includes power on reset hdd led and power led connections it allows user to connect the pc case s front panel switch functions 15
Z270gtn b250gtn 15
Chapter 2 hardware installation 16
Jfront_usb3_1 header for usb 3 ports at front panel 16
Please connect the chassis speaker to this header 16
Sata3_1 3_2 3_3 3_4 serial ata connectors 16
Spkr1 chassis speaker header 16
These connectors connect to sata hard disk drives via sata cables 16
This header allows user to add additional usb ports on the pc front panel and also can be connected with a wide range of external peripherals 16
Chapter 2 hardware installation 17 17
F_audio1 front panel audio header 17
F_usb1 header for usb 2 ports at front panel 17
Itisrecommendedthatyouconnectahigh definitionfrontpanelaudiomoduletothisconnectorto availofthemotherboard shighdefinitionaudiocapability pleasetrytodisablethe frontpaneljackdetection ifyouwanttouseanac 97frontaudiooutput cable thefunctioncanbefoundviao s audioutility 17
This header allows user to add additional usb ports on the pc front panel and also can be connected with a wide range of external peripherals 17
This header allows user to connect the chassis mount front panel audio i o which supports hd and ac 97 audio standards 17
Z270gtn b250gtn 17
Below leds are controlled by racing gt program please refer to chapter 3 for more detail software setting 18
Chapter 2 hardware installation 18
Ensureproperpinconnectingtoyourleddevice wrongconnectionmaydamageyourleddeviceor motherboard 18
Rgb led header 2 mosfet heatsink led 3 southbridge heatsink led 18
This header providers 12v power and rgb control pins for rgb led device 5050 smd 18
_rgbled1 2 rgb led device 5050 smd header 18
Bios update 19
Chapter 3 uefi bios software 19
Uefi bios setup 19
Installing software 23
Launching software 23
Software 23
Chapter 3 uefi bios software 25 25
Enter the file name and then click save your system information will be saved to a txt file 25
Open the saved txt file you will see your system information including motherboard bios cpu video device os information this information is also concluded in the sent mail 25
Z270gtn b250gtn 25
Chapter 4 useful help 30
Driver installation 30
Ami bios beep code 31
Ami bios post code 31
Boot block beep codes 31
Chapter 4 useful help 31 31
Post bios beep codes 31
Z270gtn b250gtn 31
Chapter 4 useful help 32
After confirmed please follow steps below to relief the cpu protection function 1 remove the power cord from power supply for seconds 2 wait for seconds 3 plug in the power cord and boot up the system 33
Chapter 4 useful help 33 33
Cpu overheated if the system shutdown automatically after power on system for seconds that means the cpu protection function has been activated 33
In this case please double check 1 the cpu cooler surface is placed evenly with the cpu surface 2 cpu fan is rotated normally 3 cpu fan speed is fulfilling with the cpu speed 33
Or you can 1 clear the cmos data see close cmos header jcmos1 section 2 wait for seconds 3 power on the system again 33
Troubleshooting 33
When the cpu is over heated the motherboard will shutdown automatically to avoid a damage of the cpu and the system may not power on again 33
Z270gtn b250gtn 33
Raid definitions 34
Raid functions 34
Intel optane technology powered by 3d xpoint memory 36
Appendix i specifications in other languages 37
Appendix i specifications in other languages 37 37
Arabic 37
Z270gtn b250gtn 37
Appendix i specifications in other languages 38
German 38
Appendix i specifications in other languages 39 39
Russian 39
Z270gtn b250gtn 39
Appendix i specifications in other languages 40
Spanish 40
Appendix i specifications in other languages 41 41
Z270gtn b250gtn 41
Fcc条款 43
免责说明 43
防静电操作规则 43
目录 44
第一章主板介绍 3 44
第三章 uefi bios和软件 19 44
第二章硬件安装 8 44
第四章帮助信息 30 44
附录i 产品中有毒有害物质或元素的名称及含量 37 44
1 前言 45
第一章主板介绍 45
3 主板特性 46
第一章主板介绍 46
4 后置面板接口 47
Z270gtn b250gtn 47
第一章主板介绍 5 47
5 主板布局图 48
正面 48
Z270gtn b250gtn 49
第一章主板介绍 7 49
背面 49
1 中央处理器 cpu 50
步骤1 找到主板上的cpu插槽 50
步骤2 将拉杆从插槽移出并向上抬起 50
步骤3 取掉针脚保护盖 50
第二章硬件安装 50
2 散热片 52
步骤1 请将cpu风扇组件置于cpu顶部确保四个钉钩对齐主板上的插孔调整其方位使风扇电线与cpu风扇接口间距最近确保钉钩插槽垂直指向散热片 52
步骤2 依次把对角2个钉钩同时向下按以固定风扇完成cpu安装 52
第二章硬件安装 52
3 风扇接头 53
4 系统内存 53
Cpu_fan1 cpu 风扇接头 53
Cpu_fan1 sys_fan1支持4针脚接口接线时请注意红线是正极需接到第二个针脚黑线接地需接到gnd针脚 53
Ddr4内存模组 53
Sys_fan1 系统风扇接头 53
Z270gtn b250gtn 53
此风扇接头支持电脑内置的冷却风扇风扇引线和插头可能因制造商而异 53
第二章硬件安装 11 53
O 表示内存已安装 x 表示内存未安装 54
为激活主板双通道功能使用内存模组必须符合以下要求成对安装相同密度的内存模组如下表所示 54
内存容量 54
双通道内存安装 54
步骤1 向外推开固定夹打开dimm插槽将dimm按顺序放在插槽上 dimm上的切口须与插槽凹口匹配 54
步骤2 垂直插入dimm并固定好直到固定夹跳回原位 dimm就位 54
第二章硬件安装 54
5 扩展槽 55
Pcie m2_1 m 2 key m 插槽 55
Pcie m2_2 m 2 key e 插槽仅z270gtn支持 55
Pex16_1 pci express gen3 x16 插槽 x16 模式 55
安装扩展卡 55
6 跳线设置 56
Jcmos1 清空cmos 跳线 56
7 接口和插槽 57
Atxpwr1 atx电源接口 57
Atxpwr2 atx电源接口 57
Pcie u1 u 2接口 57
Z270gtn b250gtn 57
为了更好的兼容性我们建议使用标准的atx24 pin电源供应此接口的电源 57
主板配备了一个u 连接器并支持pcie 3 x4的nvme快速存储设备支持 intel optane技术 57
开机前请确保atxpwr1和atxpwr2接口都已插上电源电压不足可能导致系统不稳或者外围设备不能正常运行当配置使用大功率设备的系统时建议您使用带有大功率输出的电源 57
此接口给cpu电路提供 12v电压若cpu电源插头为4针脚请将其插入atxpwr2的 1 2 5 6针脚 57
第二章硬件安装 15 57
请在使用前卸下u 连接器顶盖 57
Panel1 前置面板接头 58
Sata3_1 3_2 3_3 3_4 串行ata接口 58
Spkr1 扬声器接头 58
此10针脚接口包含开机重启硬盘指示灯和电源指示灯 58
此4针脚接口连接扬声器 58
此接口通过sata数据线连接sata硬盘 58
第二章硬件安装 58
F_audio1 前置面板音频接头 59
F_usb1 前置面板usb 2 0接头 59
Jfront_usb3_1 前置面板usb 3 0接头 59
Pc前置面板支持附加的usb数据线也可连接即插即用外围设备 59
Z270gtn b250gtn 59
建议您连接前置高清音频插孔享用主板高清音频功能如果要连接ac 97前置音频输出数据线请关闭前置面板插孔检测功能此功能在系统音频工具中可见 59
此接头可连接音频输出数据线支持hd 高清音频和ac 97 59
第二章硬件安装 17 59
8 led灯 60
Rgb led 接头 2 mosfet散热片led灯 3 南侨散热片led灯 60
_rgbled1 2 rgb led装置 5050 smd 接头 60
下面的led灯由racing gt软件控制请参考3 章节的软件设置 60
此接头提供12v电源与rgb控制讯号可连接rgb led装置 5050 smd 60
确保正确將针脚连接到led装置错误的连接可能会损坏您的led装置或主板 60
第二章硬件安装 60
1 uefi bios设置 61
2 刷新bios 61
第三章 uefi bios和软件 61
3 软件 65
启动软件 65
安装软件 65
Z270gtn b250gtn 67
打开已保存的文本文件显示相关系统信息包括主板 bios cpu 视频设备 os 这些信息当然也在已发送的邮件里 67
第三章 uefi bios和软件 25 67
输入文件名点击 save 系统信息将被保存至文本文件里 67
1 驱动程序安装注意事项 72
第四章帮助信息 72
2 ami bios 哔声代码 73
3 ami bios 开机自检代码 73
Bios 开机自检哔声代码 73
Z270gtn b250gtn 73
引导模块哔声代码 73
第四章帮助信息 31 73
第四章帮助信息 74
4 问题解答 75
5 raid 功能 76
Raid 定义 76
6 英特 78
Optane 技术由3d xpoint内存供电 78
Z270gtn b250gtn 79
附录i 产品中有毒有害物质或元素的名称及含量 79
附录i 产品中有毒有害物质或元素的名称及含量 37 79
