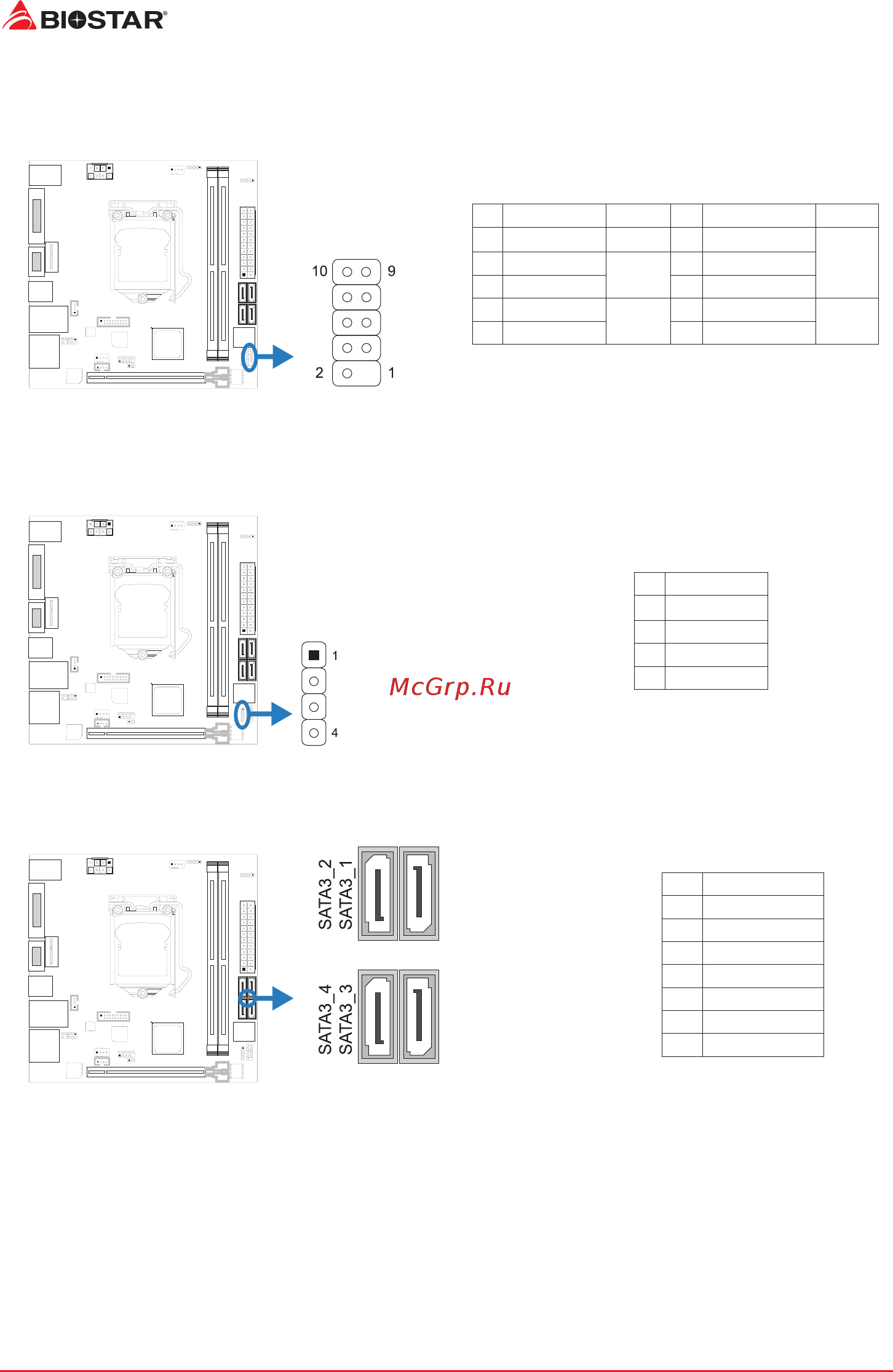

Biostar Z270GTN Версия 5.x [58/79] Panel1 前置面板接头

16 | 第二章: 硬件安装

PANEL1: 前置面板接头

此10针脚接口包含开机，重启，硬盘指示灯和电源指示灯。

针定义功能针定义功能

1 N/A 2 Power LED (+)

电源指

示灯

3 HDD LED(+)

硬盘指

示灯

4 Power LED (+)

5 HDD LED(-) 6 Power LED (-)

7 接地

重启按

钮

8 电源按钮

开机按

钮

9 重启 10 接地

SPKR1: 扬声器接头

此4针脚接口连接扬声器。

针定义

1 +5V

2 N/A

3 N/A

4 扬声器

SATA3_1/3_2/3_3/3_4: 串行ATA接口

此接口通过SATA数据线连接SATA硬盘。

针定义

1 接地

2 TX+

3 TX-

4 接地

5 RX-

6 RX+

7 接地
