第二章: 硬件安装 | 15
Z270GTN & B250GTN
2�7 接口和插槽

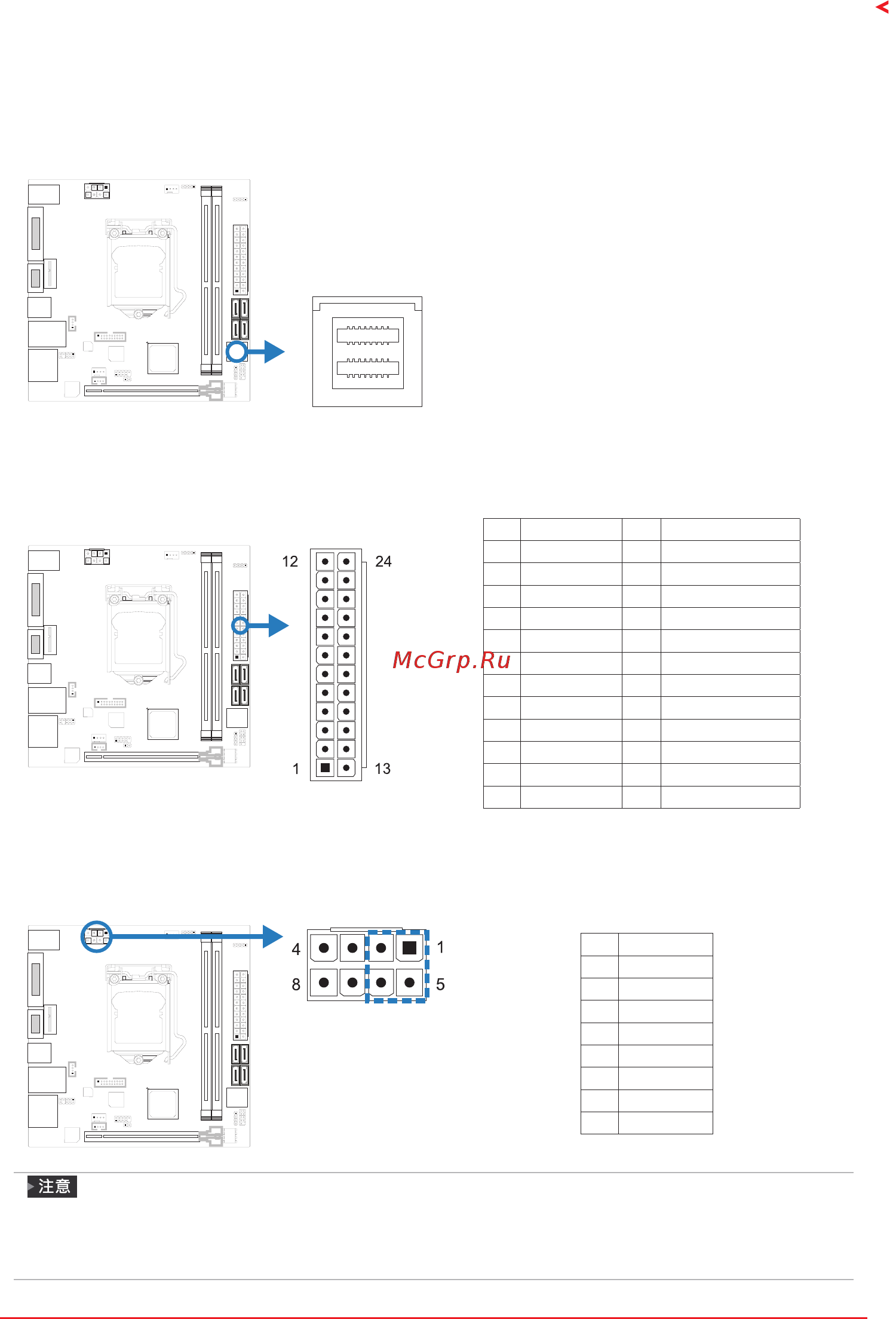

PCIE-U1: U�2接口
• 主板配备了一个U.2连接器，并支持PCIe 3.0 x4的NVMe快速存储设备。
• 支持 Intel® Optane技术。
»
请在使用前卸下U.2连接器顶盖。
ATXPWR1: ATX电源接口
为了更好的兼容性，我们建议使用标准的ATX24-pin电源供应此接口的电源。
针 定义 针 定义
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 接地 3 接地
16 PS_ON 4 +5V
17 接地 5 接地
18 接地 6 +5V
19 接地 7 接地
20 NC 8 PW_OK
21 +5V 9 唤醒电压+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 接地 12 +3.3V
ATXPWR2: ATX电源接口
此接口给CPU电路提供+12V电压。若CPU电源插头为4针脚，请将其插入ATXPWR2的
1-2-5-6针脚。
针 定义
1 +12V
2 +12V
3 +12V
4 +12V
5 接地
6 接地
7 接地
8 接地
»
开机前，请确保ATXPWR1和ATXPWR2接口都已插上电源。
»
电压不足可能导致系统不稳或者外围设备不能正常运行。当配置使用大功率设备的系统时，建议
您 使 用 带 有 大 功 率 输 出 的 电 源。
