18 | Chapter 2: Hardware installaon

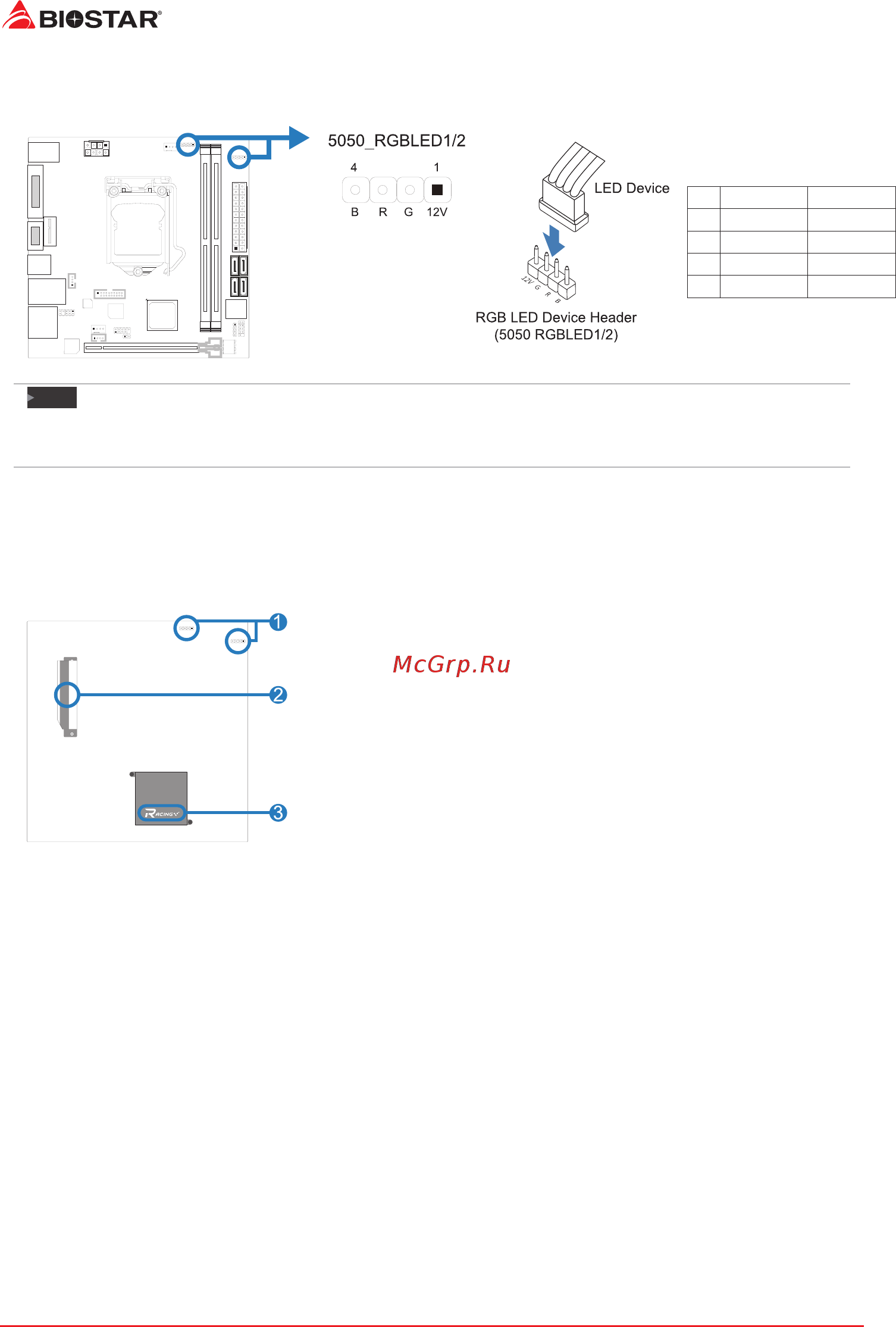

5050_RGBLED1/2: RGB LED Device (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).

Pin Cable Color Assignment

1 12V (Black) VCC12

2 G (Green) LED_GREEN

3 R (Red) LED_RED

4 B (Blue) LED_BLUE

Note

 EnsureproperpinconnecngtoyourLEDdevice,wrongconneconmaydamageyourLEDdeviceor

motherboard.

2.8 LEDs

LEDs

Below LEDs are controlled by RACING GT program. Please refer to Chapter 3.3 for more detail

soware seng.

1. RGB LED Header

2. MOSFET Heatsink LED

3. Southbridge Heatsink LED
